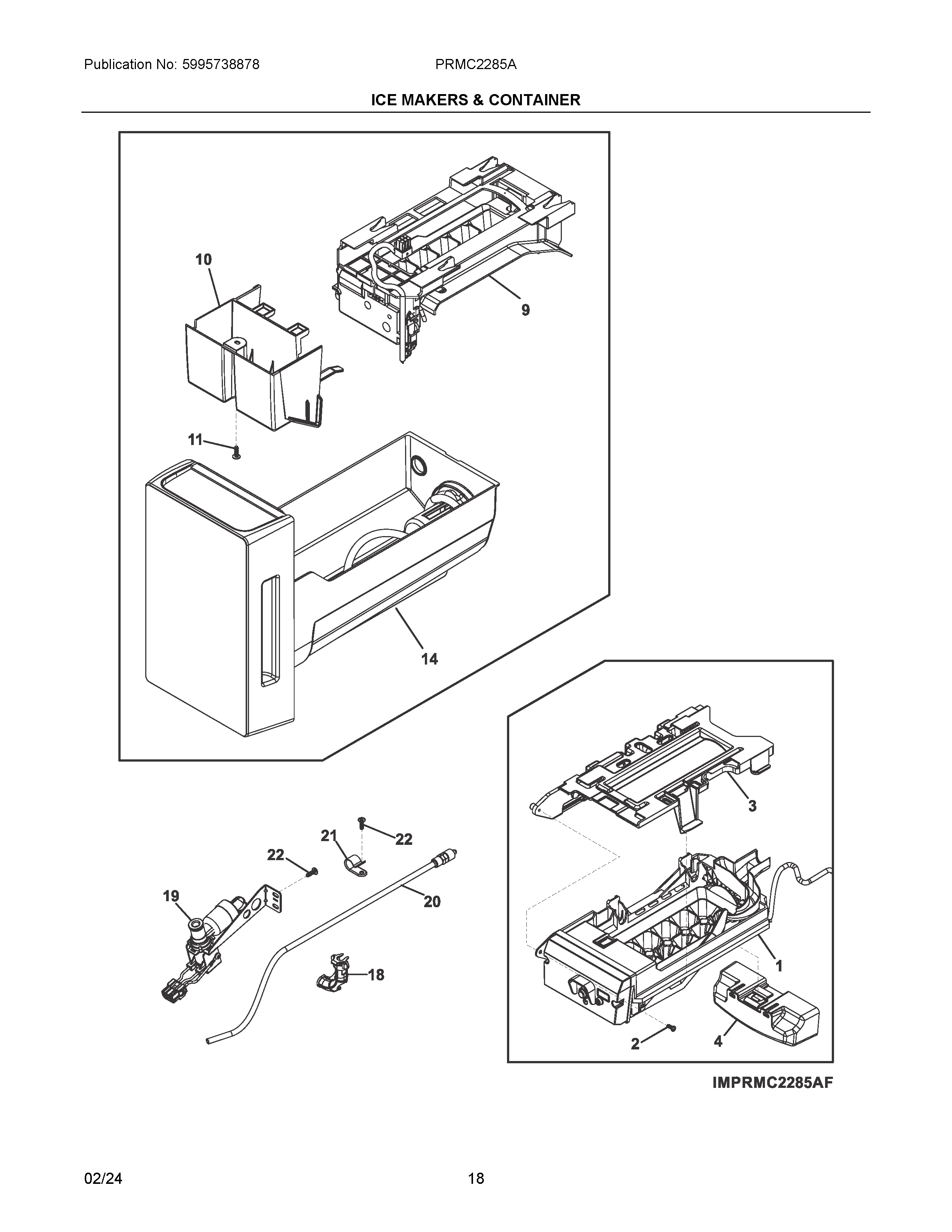

PRMC2285AF05 10 – ICE MAKERS & CONTAINER

Products

Position	Product
NI	CABLE TIE, 2.5 X 120
1	5304532556 Frigidaire Refrigerator Ice Maker Component
2	241641502 Frigidaire Refrigerator Screw
3	5304523075 Frigidaire Refrigerator Bracket
4	5304524340 Frigidaire Refrigerator Cover
9	243297613 Frigidaire Refrigerator Ice Maker
10	5304523076 Frigidaire Cover Refrigerator
11	519088008 Frigidaire Refrigerator Screw
14	5304536665 Frigidaire Bucket Assembly
18	242200102 Frigidaire Refrigerator Clip
19	5304536607 Frigidaire Valve
20	5304532655 Frigidaire Tube Assembly
21	240396801 Frigidaire Refrigerator Tube Clamp
22	811949503 Frigidaire Screw
