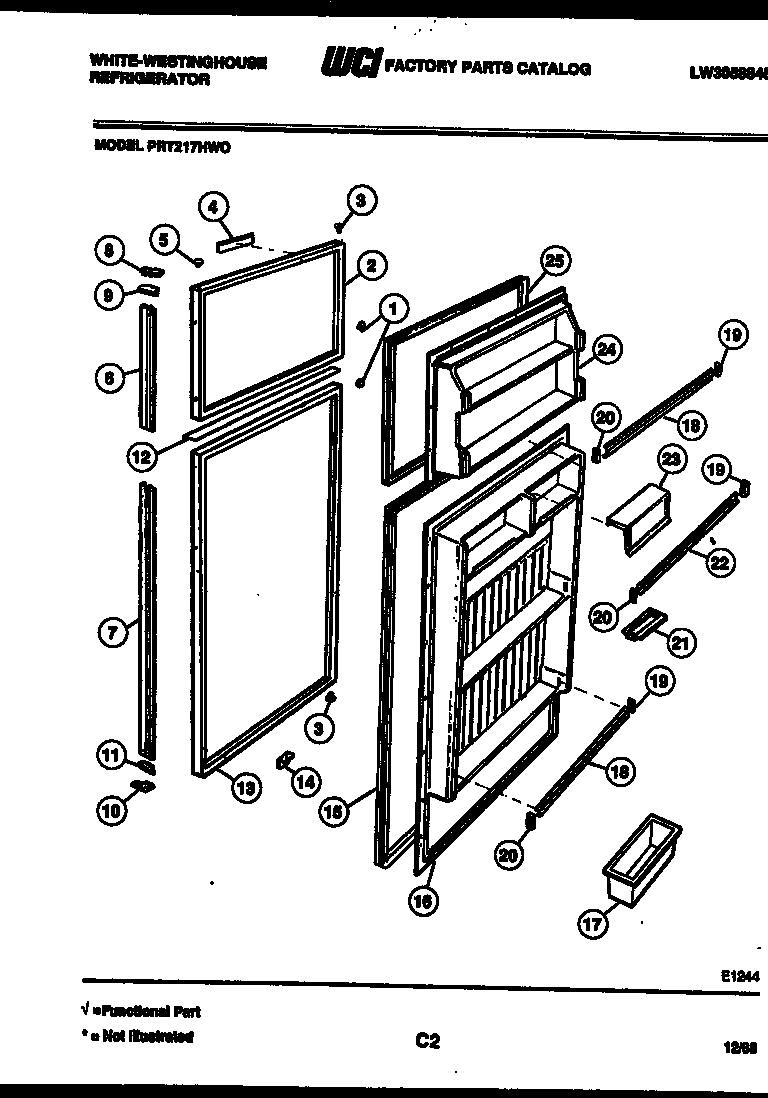

PRT217HF0 02 – DOOR PARTS

Products

Position	Product
*17634	WCI G89643
1	WCI G162977-10
1	WCI G162977-09
1	240494001 Frigidaire Refrigerator Plug Button
1	WCI G162977-08
1	WCI G162977-11
2	WCI 3916335
2	WCI 3916339
2	WCI 3916338
2	PANEL-FREEZER-WHEAT
2	WCI 3916336
3	BEARING, HINGE (3)
4	WCI R000304001
4B	LABEL-NAMEPLATE (NON-ILLUSTRATED)
4C	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
4A	FRAME-NAMEPLATE
5	WCI G169332-11
5	WCI G169332-10
5	WCI G169332-08
5	WCI G169332-01
5	WCI G169332-09
6	HANDLE-DOOR
7B	CLIP
7	HANDLE-REFRIGERATOR DOOR
8	TRIM, TOP
9	CAP
10	TRIM, BTM
11	CAP
12	TRIM
12A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
13	PANEL-REFRIGERATOR-WHEAT
13	WCI 3916344
13	WCI 3916340
13	WCI 3916341
13	WCI 3916343
14B	WCI G185566
14A	STOP, DOOR. PC & FC (2)
15	GASKET
16	PANEL-INNER REFRIGERATOR
17	CONTAINER-EGG
18A	RACK-DOOR (3)
19	SUPT, RACK, RH PC (2)
20	SUPT, RACK, LH PC (2)
21	5308000716 Frigidaire Refrigerator Dish
22	RACK-REFRIG (2)
23	DOOR-DAIRY (2)
24A	5304455651 Frigidaire Refrigerator Screw
24	INTERIOR PANEL-FREEZER
25	GASKET
