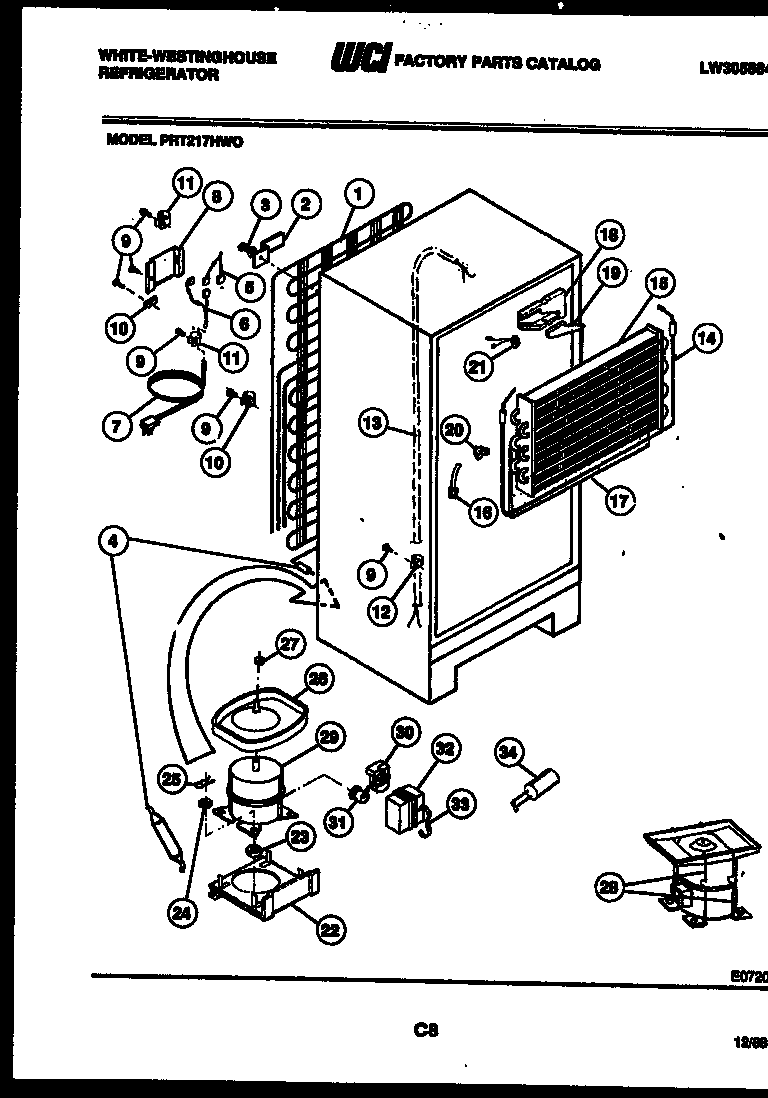

PRT217HF0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI G163133
1A	HOT TUBE REPAIR KIT
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WCI 3001637
6	HARNESS-COMPRESSOR
7	CORD, SERVICE
8	WCI G183584
9	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	240396801 Frigidaire Refrigerator Tube Clamp
13	HEAT-EXCH
14	5317842502 Frigidaire Defrost Heater
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR
18	BLOCK, EVAPORATOR, RH
19	PLUG, EVAPORATOR INSULATION BLOCK, R H
20	BLOCK, LEFT SIDE
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	PLATE
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER, COMPRESSOR MOUNTING (4)
25	CLIP, COMPRESSOR MOUNTING (4)
26	DEFROST PAN & NUT
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	NUT, LOCK
28	PAN RETAINER KIT-SERVICE
29	COMPR W/ ELECT
30	WCI G182225-18
31	WCI G189006
33	5303006412 Frigidaire Refrigerator Cover Mounting Strap
34	WCI 08017230
