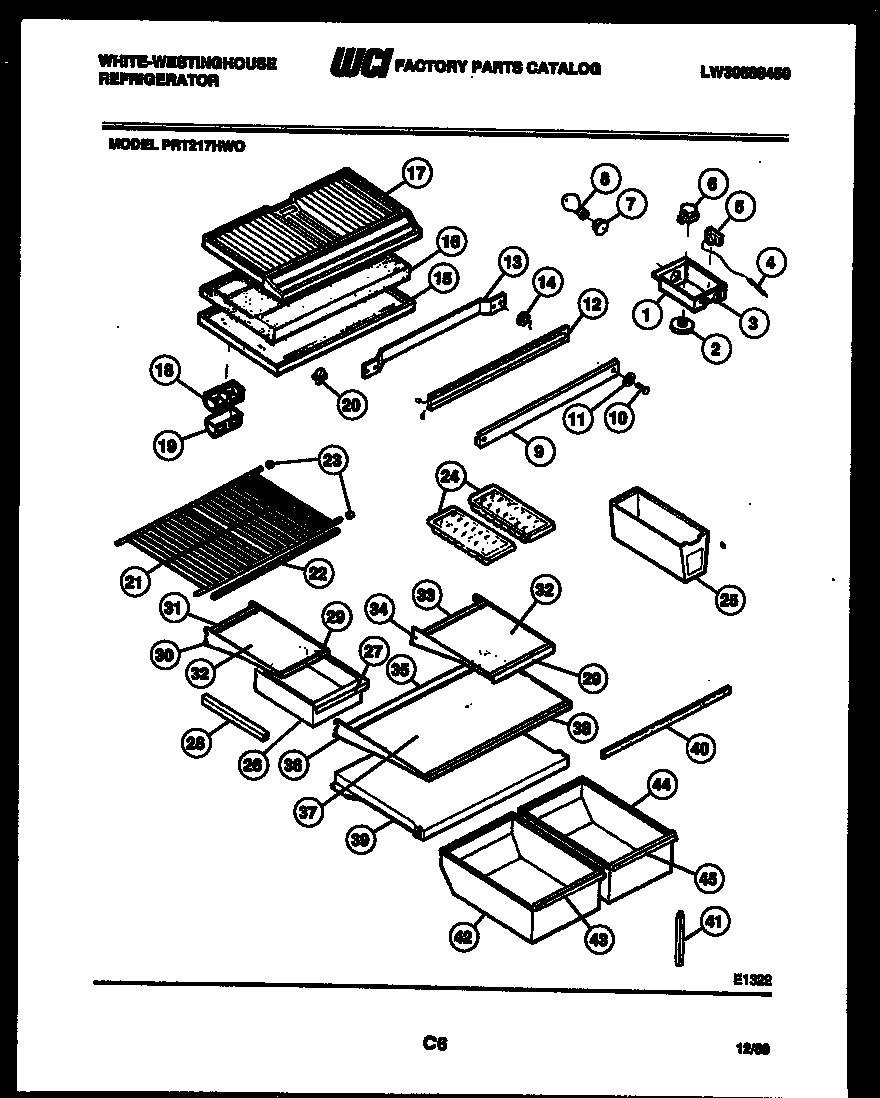

PRT217HH0 04 – SHELVES AND SUPPORTS

PRT217HH0 04 – SHELVES AND SUPPORTS

Written by

in

PRT217HH0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI G176722-02
1A5304455650 Frigidaire Refrigerator Screw
2KNOB
3LABEL
4TUBE
5WCI 3200810
5AWCI G107080
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI 3200370
9WCI 3200369
9WCI 3200368
9MULLION-AVOC
9WCI 3200366
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI 3018916
13STRAP, MULLION MOUNTING
14SPACER (NON-ILLUSTRATED)
15TOP-REFRIGERATOR
15ASCREW (5)
16WCI G184683
16AWCI 3001637
17WCI G184604
18DEFLECTOR AIR
19WCI G162178
205309918806 Frigidaire Refrigerator Light Switch Door
21WCI G177059-05
22TRIM-FRONT
23WCI G166495-01
24215667501 Frigidaire Refrigerator Ice Tray Primary
25CONTAINER ICE
26PAN, MEAT
27WCI G177343-02
28BSCREW-HANGER (2) (NON-ILLUSTRATED)
28HANGER, MEAT PAN LH
28AHANGER, MEAT PAN RH
29TRIM-SHELF
30FRAME, SHELF
31TRIM, REAR
32GLASS-SHELF
33TRIM, REAR
34FRAME-SHELF
35TRIM-REAR (NON-ILLUSTRATED)
36FRAME-SHELF FULL (NON-ILLUSTRATED)
37GLASS-SHELF (NON-ILLUSTRATED)
38TRIM-FRONT (NON-ILLUSTRATED)
39COVER-PAN
40GASKET, COVER
41ROD, CRISPER COVER SUPT
42WCI G490015-02
43TRIM-PAN RH
44PAN-CRISPER R.S.
45TRIM-PAN LH
