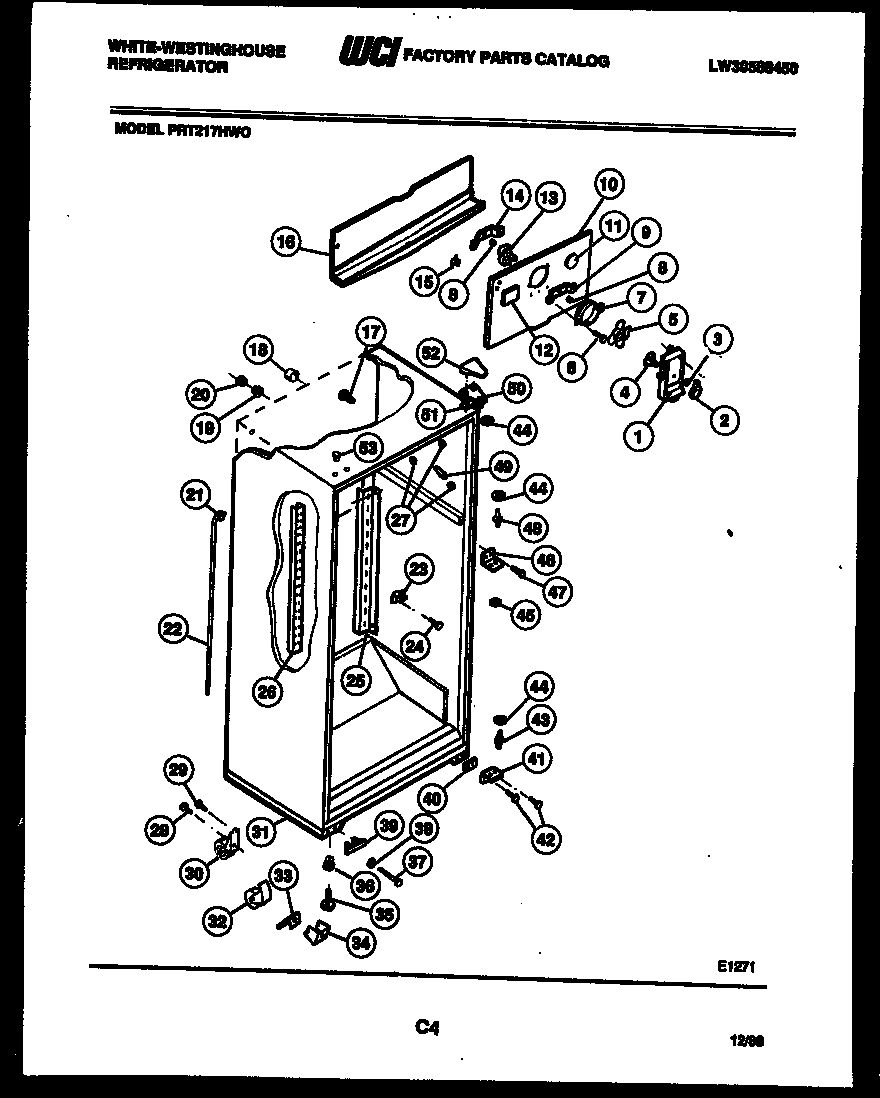

PRT217HV0 03 – CABINET PARTS

PRT217HV0 03 – CABINET PARTS

Written by

in

PRT217HV0 03 – CABINET PARTS

Products

PositionProduct
*17640BUTTON, LINER
1ALABEL-FAN CVR
1WCI G179793-02
1B5304455650 Frigidaire Refrigerator Screw
2WCI G162663-15
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING, FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI G185302
10ANUT, ORIFICE (2)
10WCI G184609
11PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12PLUG-BUTTON DECOR
135300158289 Frigidaire Evaporator Fan Motor
14WCI G185303
15WCI G164571
15A5304455651 Frigidaire Refrigerator Screw
16WCI G177534
17WCI G163669
18TUBE, INSULATION (2)
19WCI G174733
20WCI G174734
21RING, SEAL (NON-ILLUSTRATED)
22TUBE, DRAIN
23SPOUT DRAIN TUBE
24PIN PUSH SPOUT (2)
25CHANNEL, SHELF (2)
25A5304455852 Frigidaire Refrigerator Screw
26WCI G189341
26ASCREW (3) (NON-ILLUSTRATED)
27A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
275304509705 Frigidaire Refrigerator Grommet
28BOLT ROLLER (2)
30ROLLER, REAR (2)
31WCI G490004-02
32ROLLER FRONT, ADJUSTABLE (2)
33SPRING-ROLLER (2)
34SUPPORT, ROLLER (2)
35LEG-LEVELING (2)
36NUT, ANCHOR (2)
37BOLT-ROLLER (2)
38WASHER
39WCI G166912
40SHIM, HINGE
40ATAPPING, PLATE (2)
41BRACKET-HINGE
435303001321 Frigidaire Refrigerator Lower Hinge Pin
44WCI G103903
45WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
46BRACKET, HINGE CENTER
47SCREW, BRACKET MOUNTING (4)
47AWASHER (2)
48WCI G142220
49WCI G179684-01
49WCI G179684-09
49TRIM-CORNER, ALMOND (4)
49TRIM CORNER (4), AVOCADO
49WCI G179684-10
50BRACKET, TOP HINGE
50A241710601 Frigidaire Refrigerator Screw
51WCI G183861
52COVER HINGE, COFFEE
52COVER, TOP HINGE, ALMOND
52COVER, TOP HINGE, AVOCADO
52COVER HINGE, WHEAT
52COVER HINGE, WHITE
53WCI G174747-08
53WCI G174747-11
53WCI G174747-10
53WCI G174747–01
53WCI G174747-09
