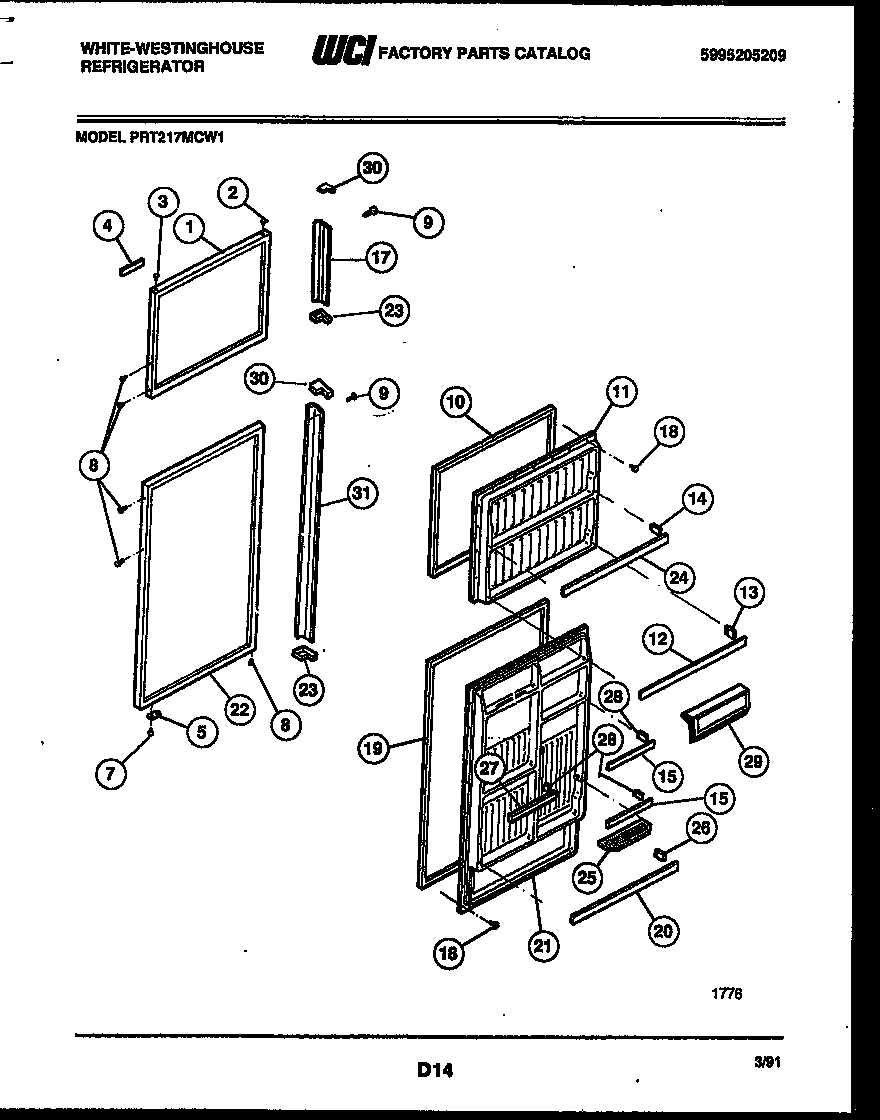

PRT217MCD1 02 – DOOR PARTS

Products

Position	Product
*42921	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303916339
2	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
3	BEARING-HINGE
4	WCI 3206159
5	DOOR STOP, REFR SECTION
5A	WCI 5308000255
8	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9	WCI 5308011745
10	WCI 5318680314
11	WCI 5303206509
12	RACK-DOOR, FULL-WIDTH, WIDE
13A	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15	RACK-DOOR, SHORT, NARROW, (2)
17	HANDLE-FREEZER
18	5304455651 Frigidaire Refrigerator Screw
19	WCI 5303018792
20	WCI 5303206518
21	WCI 5303206513
22	WCI 5303916344
23B	WCI 5300179271
23	WCI 5300177143
24	WCI 5303206511
25	WCI 3206189
26A	WCI 3206151
26	WCI 3206150
27	WCI 5303206515
28	3206165 Frigidaire Bar Endcap Right Hand
28A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
29	DOOR-DAIRY (INCLUDES TRIM)
30B	WCI 5300179270
30	WCI 5300177142
30A	WCI 5300177144
31	HANDLE-REF
