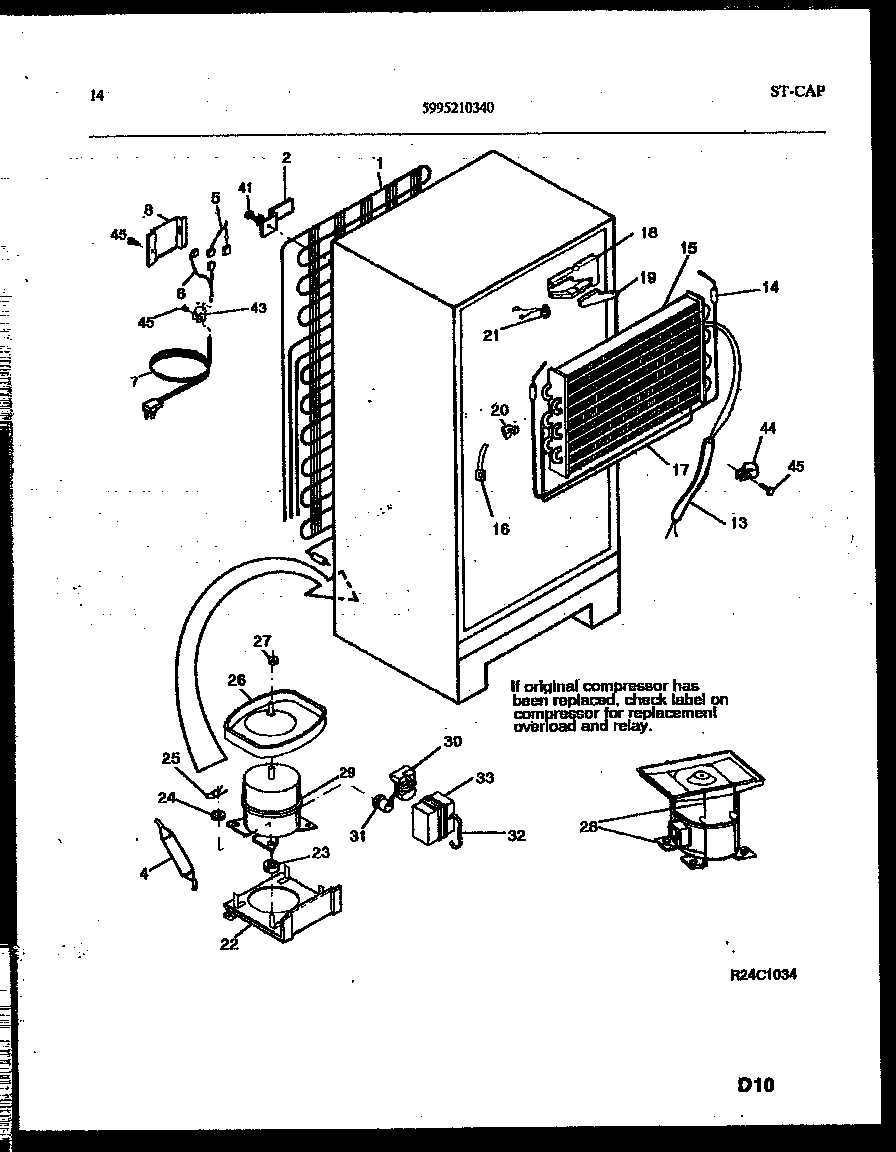

PRT217MCD2 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*51034	HOT TUBE REPAIR KIT-SERVICE
1	WCI 5300163133
2	BRACKET, MOUNTIN, CONDENSER, (4)
2A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS, CONTROL/DIVIDER (NON-ILLUSTRATED)
6	WIRING HARNESS, COMPRESSOR,
7	CORD-ELECTRIC POWER
8	WCI 5303001197
13	WCI 5308000728
14	5317842502 Frigidaire Defrost Heater
15	EVAPORATOR
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	INSULATOR-EVAP, PLASTIC
18	INSULATION BLOCK, RH
19	INSULATION PLUG, RH
20	INSULATION BLOCK, LH
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5308013663
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	WASHER-COMPR MTG
25	CLIP - COMPRESSOR MTG
26	PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	Nut,lock `1/4-20 ,drain pan mtg
28	PAN RETAINER KIT, SERVICE
29	COMPRESSOR W/ ELECTRICALS
29A	CAPACITOR
30	RELAY-TL
31	WCI 5308017532
32	5303006412 Frigidaire Refrigerator Cover Mounting Strap
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455651 Frigidaire Refrigerator Screw
