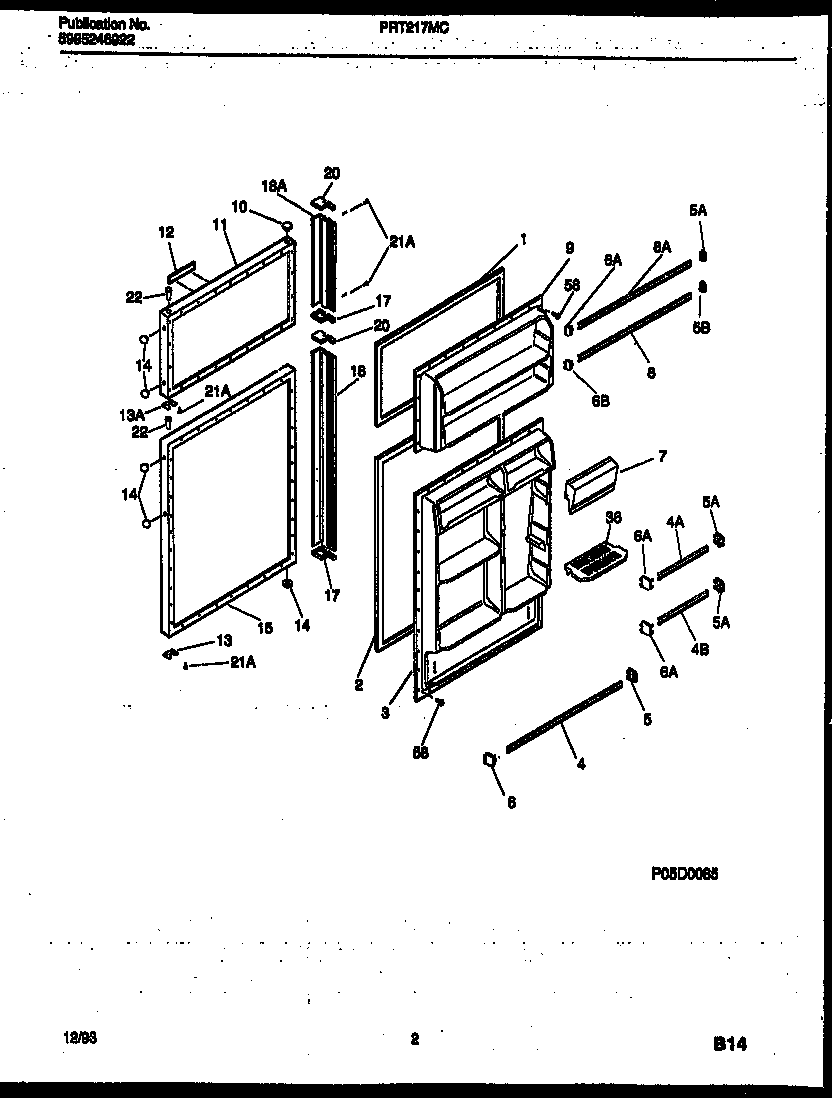

PRT217MCD3 02 – DOOR PARTS

PRT217MCD3 02 – DOOR PARTS

Written by

in

PRT217MCD3 02 – DOOR PARTS

Products

PositionProduct
*83617INSULATION
1WCI 5318680314
2WCI 5303018792
3WCI 5303206513
4WCI 5303206518
4BWCI 5303206515
4ARACK-DOOR, SHORT, NARROW, (2)
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 215918200
7AWCI 5303001380
8RACK-DOOR, FULL-WIDTH, WIDE
8AWCI 5303206511
9WCI 5303206509
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303916339
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 3206159
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303916344
17AWCI 5300179271
17WCI 5300177143
18BWCI 5300177144
18HANDLE-DOOR, 44“ LONG, W/ END CAPS
18AWCI 5303276925
20WCI 5300177142
20AWCI 5300179270
21AWCI 5308011745
22BEARING-HINGE
36WCI 3206189
585304455651 Frigidaire Refrigerator Screw
