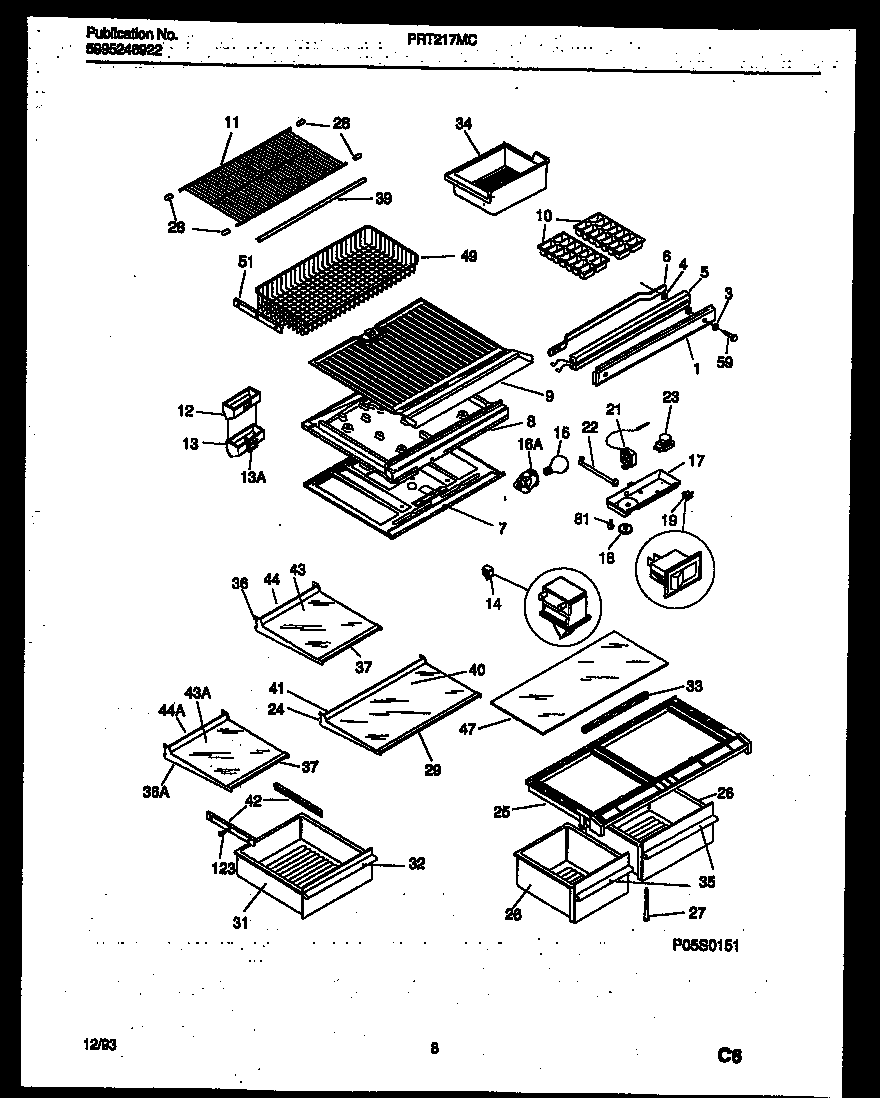

PRT217MCD3 05 – SHELVES AND SUPPORTSadmin2025-04-26T10:27:27+00:00PRT217MCD3 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 5303200370 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER-MULLION MTG, STEEL |
| 5 | WCI 5303210351 |
| 6 | WCI 5308010008 |
| 7A | WCI 5303001380 |
| 7 | WCI 3019038 |
| 8A | 3205266 Frigidaire Refrigerator Edge Protector |
| 8 | WCI 5303019039 |
| 8B | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 9 | BOTTOM, FREEZER |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | WCI 5303206769 |
| 12A | 5303001449 Frigidaire Refrigerator Seal |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 13 | WCI 5303001448 |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17A | NUT, ANCHOR (NI) |
| 17 | WCI 3206130 |
| 18 | WCI 5303209251 |
| 19 | WCI 3206129 |
| 21 | WCI 5303018894 |
| 21A | WCI 5303001260 |
| 22 | WCI 3018891 |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | WCI 3200616 |
| 24A | RAIL-GLASS SUPT (2) (NON-ILLUSTRATED) |
| 25 | WCI 5303206538 |
| 25A | WCI 3205547 |
| 26 | WCI 215791908 |
| 26 | WCI 5303299775 |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 29 | TRIM-FULL SHELF, FRONT, (3) |
| 31 | WCI 5303299809 |
| 32 | WCI 3201414 |
| 33 | GASKET-CRISPER COVER (NON-ILLUSTRATED) |
| 34 | WCI 5303207065 |
| 35 | WCI 3201411 |
| 35 | WCI 3201409 |
| 36 | WCI 5303200613 |
| 36A | WCI 3200617 |
| 37 | TRIM-1/2 SHELF |
| 39 | TRIM-FRZR SHELF |
