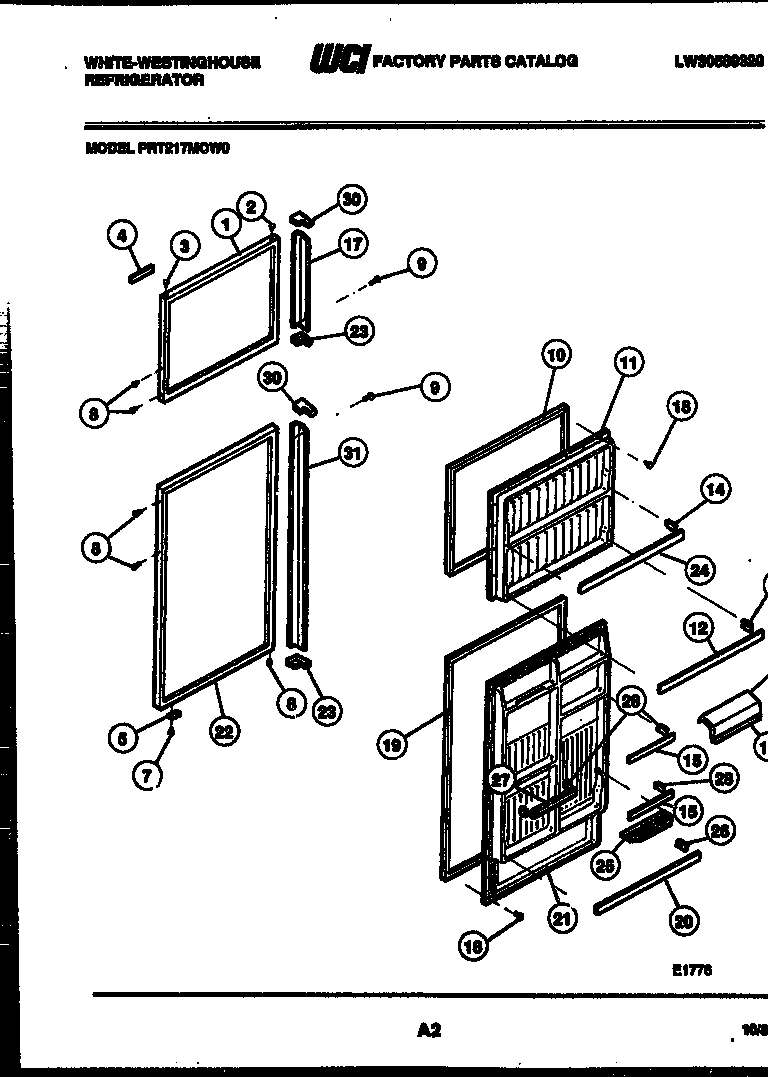

PRT217MCF0 02 – DOOR PARTS

PRT217MCF0 02 – DOOR PARTS

Written by

in

PRT217MCF0 02 – DOOR PARTS

Products

PositionProduct
*24905INSULATION-BULK
1WCI 3916338
2WCI G169332-10
3WCI 08012007
4WCI 3206159
5DOOR STOP (2)
8WCI G162977-10
9WCI G185566
10WCI G186803-14
11WCI 5303206509
12RACK-DOOR, FULL-WIDTH, WIDE
13ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15RACK-DOOR, SHORT, NARROW, (2)
16TRIM-DAIRY DOOR (NON-ILLUSTRATED)
17HANDLE-FREEZER
185304455651 Frigidaire Refrigerator Screw
19WCI G186803-13
20WCI 5303206518
21WCI 5303206513
22WCI 3916343
23BTRIM, BTM
23CAP
24WCI 5303206511
25WCI 3206189
26SUPPORT-DOOR RACK, RH
26ASUPPORT-DOOR RACK, LH
27WCI 5303206515
28A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
283206165 Frigidaire Bar Endcap Right Hand
29DOOR-DAIRY (INCLUDES TRIM)
30ACLIP
30CAP
30BTRIM, TOP
31HANDLE-REF
