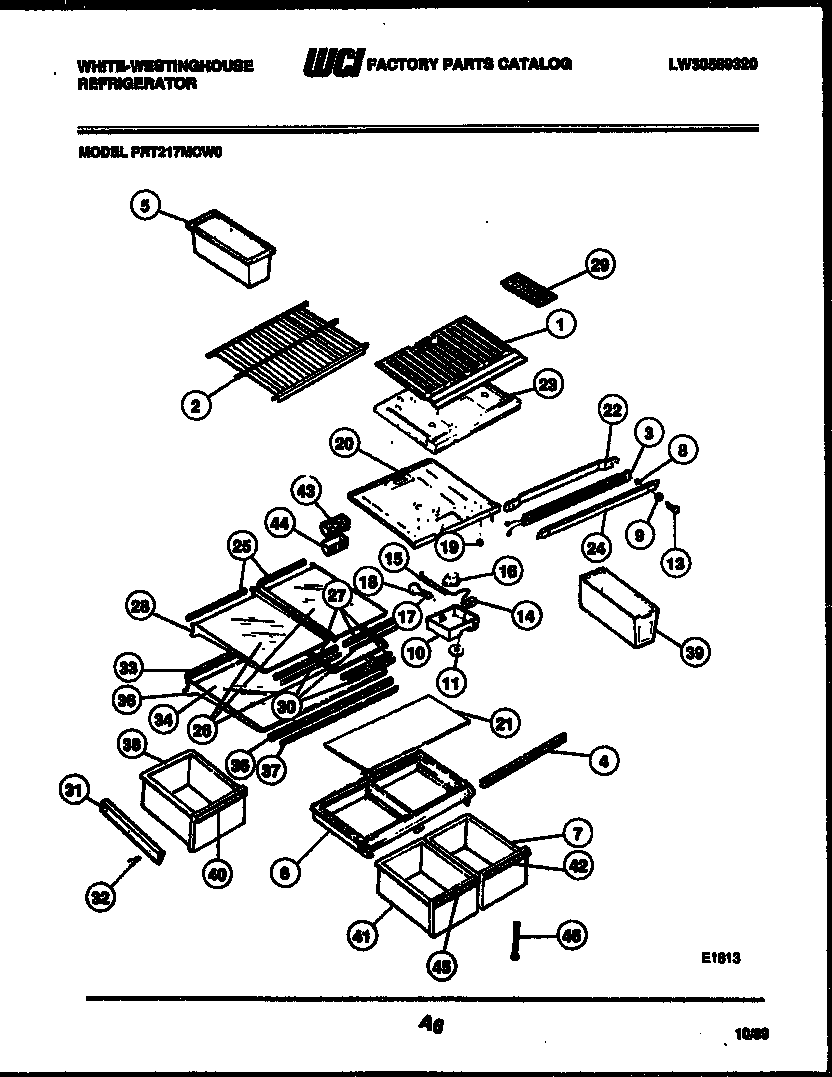

PRT217MCH0 04 – SHELVES AND SUPPORTS

PRT217MCH0 04 – SHELVES AND SUPPORTS

Written by

in

PRT217MCH0 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*24917CLIP, SHELF (8)
1BOTTOM-FREEZER
2C5304509705 Frigidaire Refrigerator Grommet
2WCI 5303206769
2BTRIM-FRZR SHELF
2AEND CAP-SHELF,PROTECTOR
2D5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
3WCI 3018916
4WCI 5303206540
5WCI 5303207065
6WCI 5303206538
6AWCI 3200329
7WCI 5303206534
8SPACER (NON-ILLUSTRATED)
9WASHER (2)
10WCI 3206320
10A5304455650 Frigidaire Refrigerator Screw
11KNOB-TEMP CONTROL
13WCI 08012258
14AWCI G107080
14CONTROL-TEMPERATURE
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP-REFRIGERATOR
20ASCREW (5)
21INSERT-CRISPER CVR, GLASS
22WCI 08010008
23DIVIDER-STYROFOAM
23AWIRING HARNESS, CONTROL/DIVIDER (NON-ILLUSTRATED)
23B3205266 Frigidaire Refrigerator Edge Protector
24WCI 3200368
25ATRIM – REAR SHELF RETAINER – MK & BASKET SHELF (2)
25TRIM-REAR SHELF RETAINER-1/2 SHELF RETAINER
26GLASS-1/2 SHELF
26AGLASS – MK & BASKET SHELF (2)
27ARETAINER-MEAT SHELF
27WCI 3200610
28WCI 3200613
28AWCI 3200617
29215667501 Frigidaire Refrigerator Ice Tray Primary
30ATRIM – MK & BASKET SHELF (2)
30TRIM-1/2 SHELF
31AWCI 3018890
31HANGER-LH (NON-ILLUSTRATED)
32WCI 08014528
33WCI 5303206535
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
34WCI 5303206536
35RETAINER-GLASS-FULL SHELF
36WCI 3200616
37TRIM-FULL SHELF, FRONT, (3)
38WCI 5303206542
39CONTAINER-EGG
40WCI 5303206541
41PAN – CRISPER – LH
42TRIM-CRISPER PAN-RH
43WCI 3204206
44WCI G162178
45TRIM-CRISPER PAN-LH
46SUPPORT-ADJ CRISPER COVER
