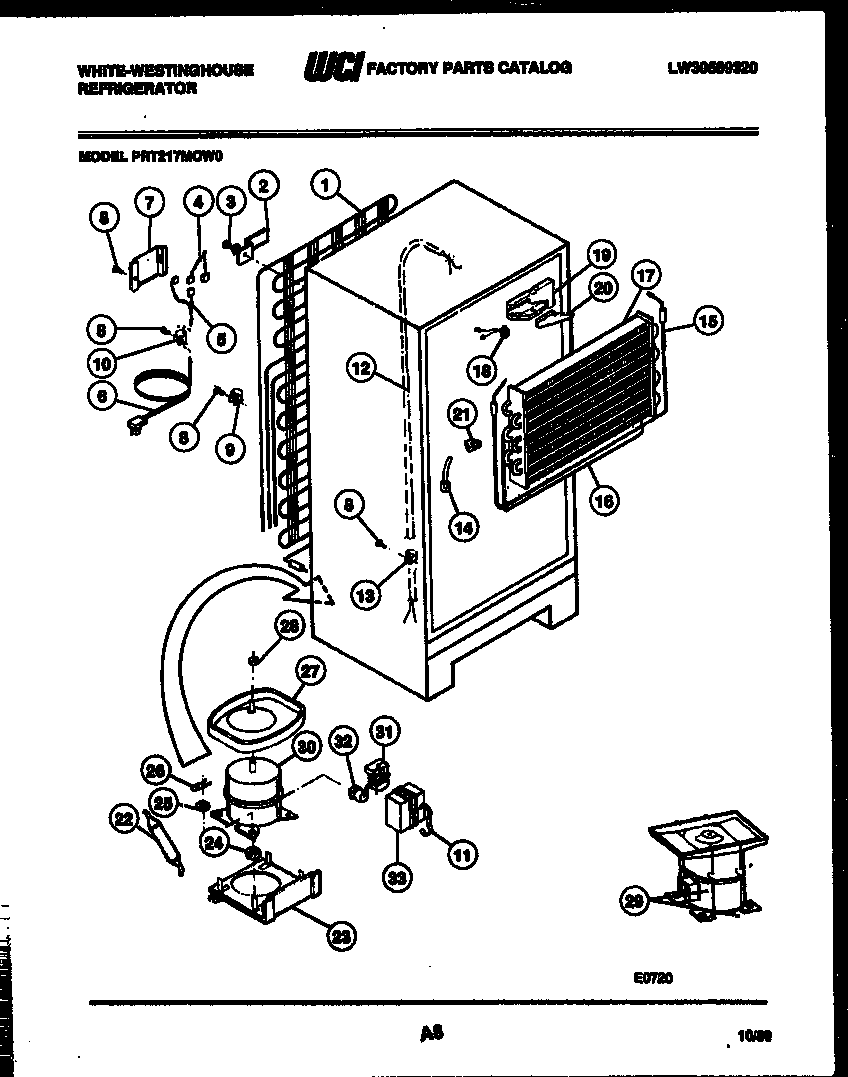

PRT217MCH0 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*24921	HOT TUBE REPAIR KIT
1	WCI G163133
2	WCI 08000296
3A	WASHER
3	5308000039 Frigidaire Refrigerator Screw
4	WIRING HARNESS, CONTROL/DIVIDER (NON-ILLUSTRATED)
5	HARNESS-COMPRESSOR
6	CORD, SERVICE
7	WCI G183584
8	5304455651 Frigidaire Refrigerator Screw
10	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303006412 Frigidaire Refrigerator Cover Mounting Strap
12	HEAT-EXCH
13	240396801 Frigidaire Refrigerator Tube Clamp
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	5317842502 Frigidaire Defrost Heater
16	INSULATOR
17	EVAPORATOR
18	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19	BLOCK, EVAPORATOR, RH
20	PLUG, EVAPORATOR INSULATION BLOCK, R H
21	BLOCK, LEFT SIDE
22	5303305677 Frigidaire Replacement Filter Dryer Filters
23	WCI 08013663
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WASHER, COMPRESSOR MOUNTING (4)
26	CLIP, COMPRESSOR MOUNTING (4)
27A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27	DEFROST PAN & NUT
28	NUT, LOCK
29	PAN RETAINER KIT-SERVICE
30A	CAPACITOR-RUN
30	WCI 3916012
31	WCI 3007173
32	WCI 08017532
