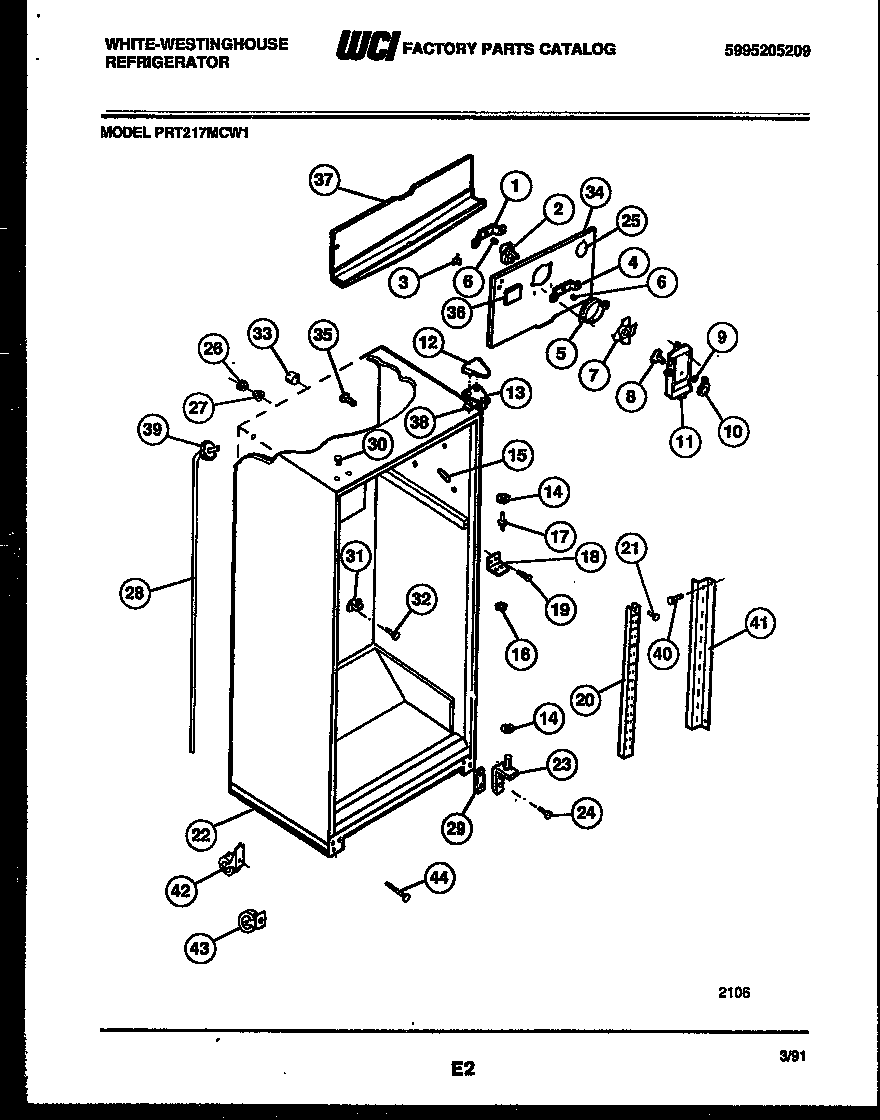

PRT217MCH1 03 – CABINET PARTS

Products

PositionProduct
*42926PLUG, BUTTON, CABINET LINER (NI)
*42926TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303205118
5RING-FAN ORIFICE
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10WCI 3206381
11WCI 5303206544
11BWCI 5303206545
12COVER – HINGE-WHEAT
13BRACKET-UPPER HINGE
14WASHER, .34 X .62 X .05, NYLON
15WCI 5303202338
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20WCI 5303015409
21WCI 5308016568
22WCI 5303212487
23BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
23BRACKET-LOWER HINGE, W/ HINGE PIN
23ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
24241710601 Frigidaire Refrigerator Screw
255303208309 Frigidaire Refrigerator Plug Hole
26WCI 5303001287
27WCI 5303001286
28WCI 5303210377
29WCI 5303212488
30BUTTON-HINGE-WHEAT
31WCI 5308000056
32WCI 5303001361
33TUBE-RUBBER
34B5304455650 Frigidaire Refrigerator Screw
34COVER, COIL
34ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35SUPPORT-COIL COVER
36PLUG-DECORATIVE, ICE MAKER HOLE
37WCI 5303001470
38SHIM – UPPER HINGE
39WCI 5303207353
405304455852 Frigidaire Refrigerator Screw
41CHANNEL, RH & LH
42A5304455651 Frigidaire Refrigerator Screw
42WCI 5308009773
42BBOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
43WCI 5303212490
44BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
