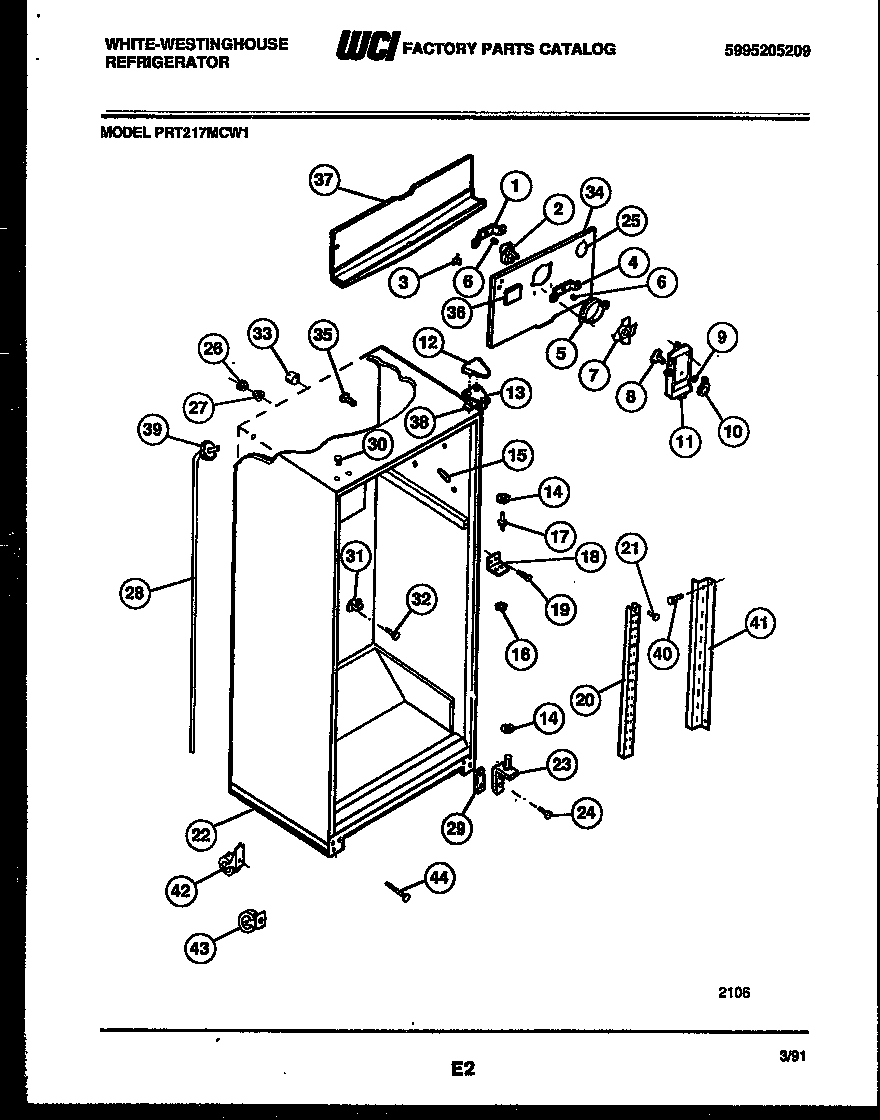

PRT217MCV1 03 – CABINET PARTS

Products

Position	Product
*42926	PLUG, BUTTON, CABINET LINER (NI)
*42926	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	BRACKET-MOTOR MTG, REAR
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI 5308000107
4	WCI 5303205118
5	RING-FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER-FAN COVER
9	Nut,push-on
10	WCI 3206381
11	WCI 5303206544
11B	WCI 5303206545
12	COVER-HINGE-AVOCADO
13	BRACKET-UPPER HINGE
14	WASHER, .34 X .62 X .05, NYLON
15	CORNER
16	WCI 5308000186
17	WCI 5308000184
18	BRACKET-CTR HINGE
19	WCI 5308012258
20	WCI 5303015409
21	WCI 5308016568
22	WCI 5303212487
23B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
23	BRACKET-LOWER HINGE, W/ HINGE PIN
23A	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
24	241710601 Frigidaire Refrigerator Screw
25	5303208309 Frigidaire Refrigerator Plug Hole
26	WCI 5303001287
27	WCI 5303001286
28	WCI 5303210377
29	WCI 5303212488
30	BUTTON-HINGE-AVOCADO
31	WCI 5308000056
32	WCI 5303001361
33	TUBE-RUBBER
34B	5304455650 Frigidaire Refrigerator Screw
34	COVER, COIL
34A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35	SUPPORT-COIL COVER
36	PLUG-DECORATIVE, ICE MAKER HOLE
37	WCI 5303001470
38	SHIM - UPPER HINGE
39	WCI 5303207353
40	5304455852 Frigidaire Refrigerator Screw
41	CHANNEL, RH & LH
42A	5304455651 Frigidaire Refrigerator Screw
42	WCI 5308009773
42B	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
43	WCI 5303212490
44	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
