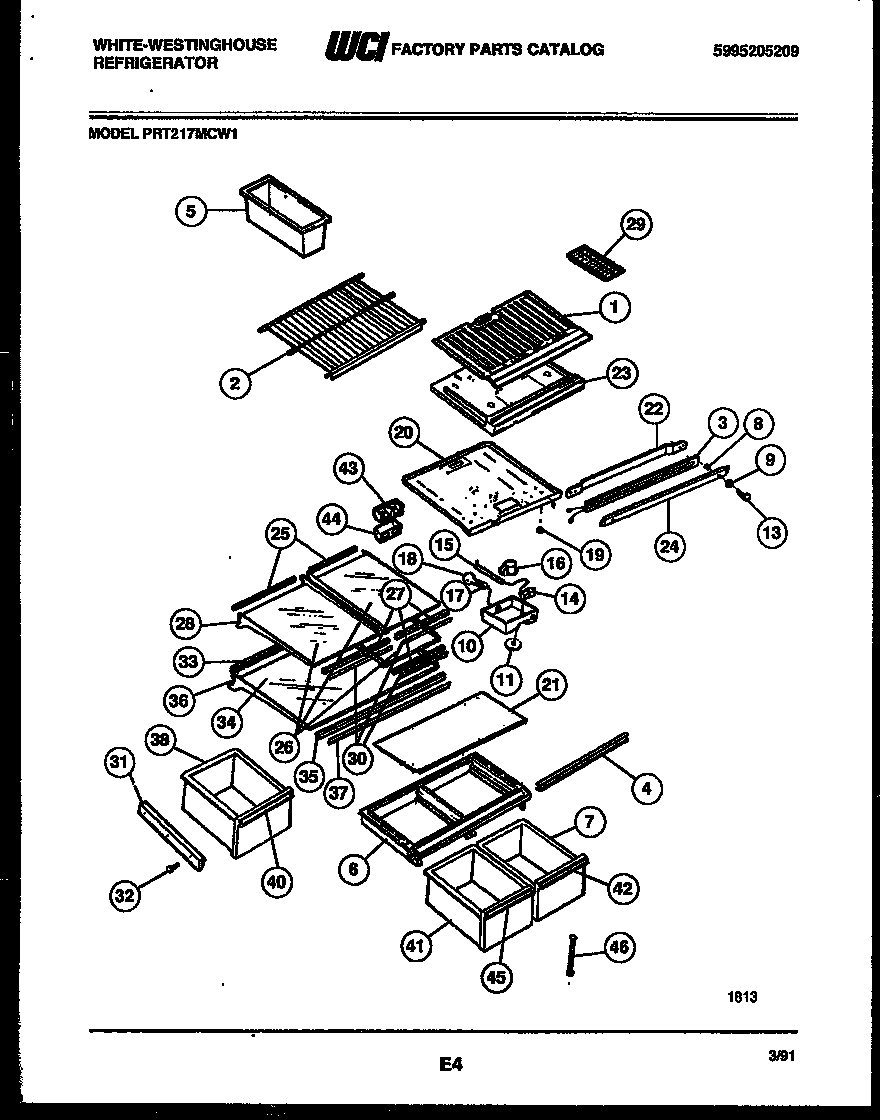

PRT217MCV1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*42934CLIP-CANTILEVER SHLF
1BOTTOM, FREEZER
2AEND CAP-SHELF,PROTECTOR
2C5304509705 Frigidaire Refrigerator Grommet
2BTRIM-FRZR SHELF
2D5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2WCI 5303206769
3WCI 5303210351
4WCI 3205547
5WCI 5303207065
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
6WCI 5303206538
7WCI 5303206534
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10WCI 3206320
10A5304455650 Frigidaire Refrigerator Screw
11WCI 5303201777
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15WCI 3018891
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20WCI 3019038
20AWCI 5303001380
21INSERT-CRISPER CVR, GLASS
22WCI 5308010008
23WCI 5303019039
23AWIRING HARNESS, CONTROL/DIVIDER (NON-ILLUSTRATED)
23B3205266 Frigidaire Refrigerator Edge Protector
24WCI 5303200367
25ATRIM-MEAT KPR SHELF, REAR
25TRIM-HALF SHELF, REAR, (2)
26GLASS-1/2 SHELF
26AGLASS – MK & BASKET SHELF (2)
27WCI 3200610
27ARETAINER-MEAT SHELF
28WCI 5303200613
28AWCI 3200617
29215667501 Frigidaire Refrigerator Ice Tray Primary
30ATRIM-MEAT KPR SHELF
30TRIM-1/2 SHELF
31HANGER-PAN LH
31AHANGER-PAN RH (NON-ILLUSTRATED)
32WCI 080145128
33TRIM-FULL SHELF, REAR
34WCI 5303206536
34ARAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
35RETAINER-GLASS-FULL SHELF
36WCI 3200616
37TRIM-FULL SHELF, FRONT, (3)
38WCI 5303206542
40WCI 3201414
41PAN – CRISPER – LH
42WCI 3201409
43DEFLECTRO, AIR, W/SEAL
44AEXTENSION, AIR DEFLECTOR, WITH INSULATION
44WCI 5303001448
45WCI 3201411
46SUPPORT-CRISPER CVR, ADJUSTABLE
