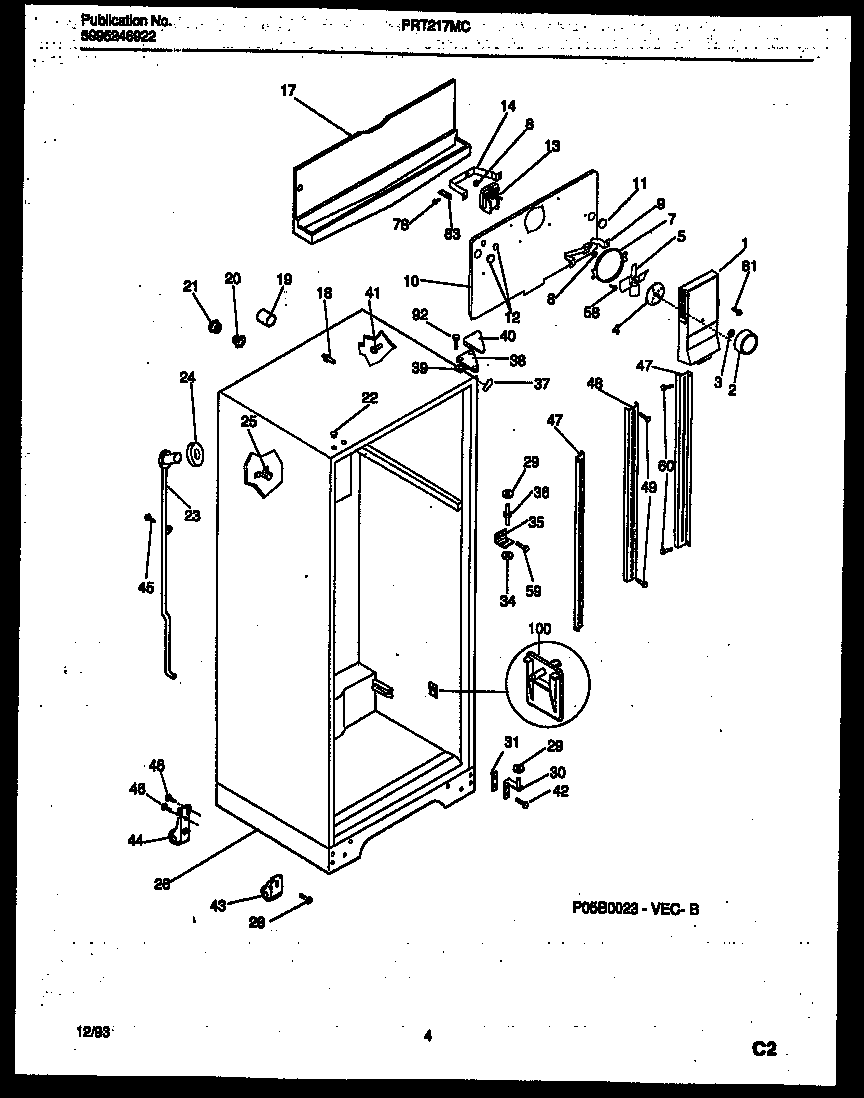

PRT217MCW3 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303206544
1A	WCI 5303206545
2	WCI 3206381
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	COVER, COIL
10A	WCI 5303209636
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
12	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT - EVAP COVER, (2)
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	WCI 5303207353
25	WCI 5308000056
25A	WCI 5303001361
26	WCI 5303212487
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WASHER, .34 X .62 X .05, NYLON
30B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	BRACKET-UPPER HINGE
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, WHITE
41	5304509705 Frigidaire Refrigerator Grommet
41B	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A	5308000039 Frigidaire Refrigerator Screw
