PRV03ATTBBB FREEZER

PRV03ATTBBB FREEZER

Written by

in

PRV03ATTBBB FREEZER

Products

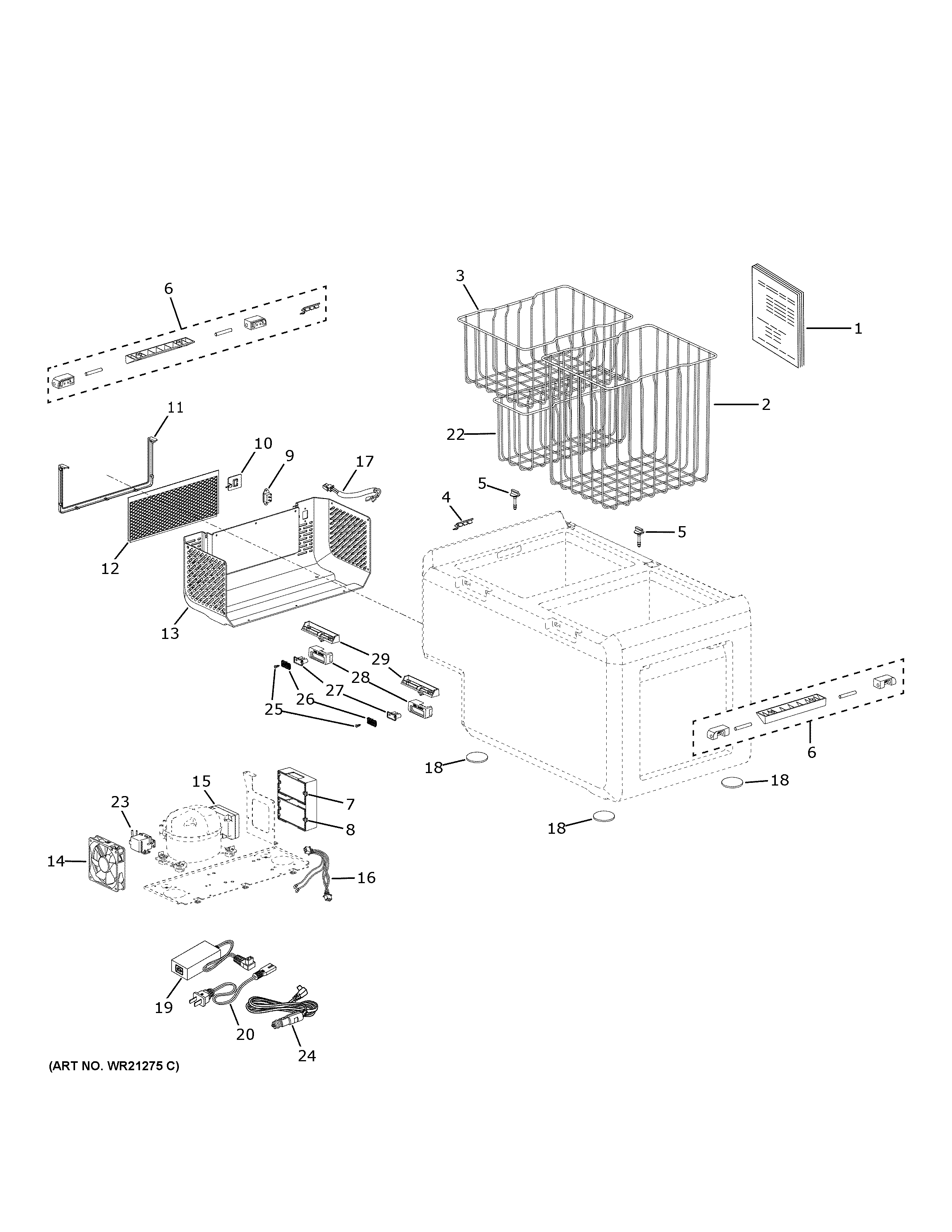

Position	Product
1	PM INSTALL INSTRUCTIONS
1	PM OWNERS MANUAL
2	RIGHT LARGE BASKET
3	LEFT MEDIUM BASKET
4	USB COVER
5	DRAIN PLUG
6	POCKET HANDLE
7	MAIN CONTROL BOARD
8	FILTER BOARD
9	DC SOCKET
10	POWER CORD COVER
11	MESH POCKET FRAME
12	MESH POCKET
13	ACCESS COVER
14	DC FAN MOTOR
15	INVERTER
16	MAIN & FILTER BOARD HARNESS
17	DC SOCKET WIRING HARNESS
18	ANTI-SKID PAD
19	POWER ADAPTER
20	POWER CORD
22	LEFT SMALL BASKET
23	MAGNETIC VALVE
24	DC POWER CORD
25	SCREW
26	DOOR LOCK POST COVER
27	DOOR LOCK POST
28	DOOR LOCK
29	DOOR LATCH
