PS960BL5TS LOWER DOOR

PS960BL5TS LOWER DOOR

Written by

in

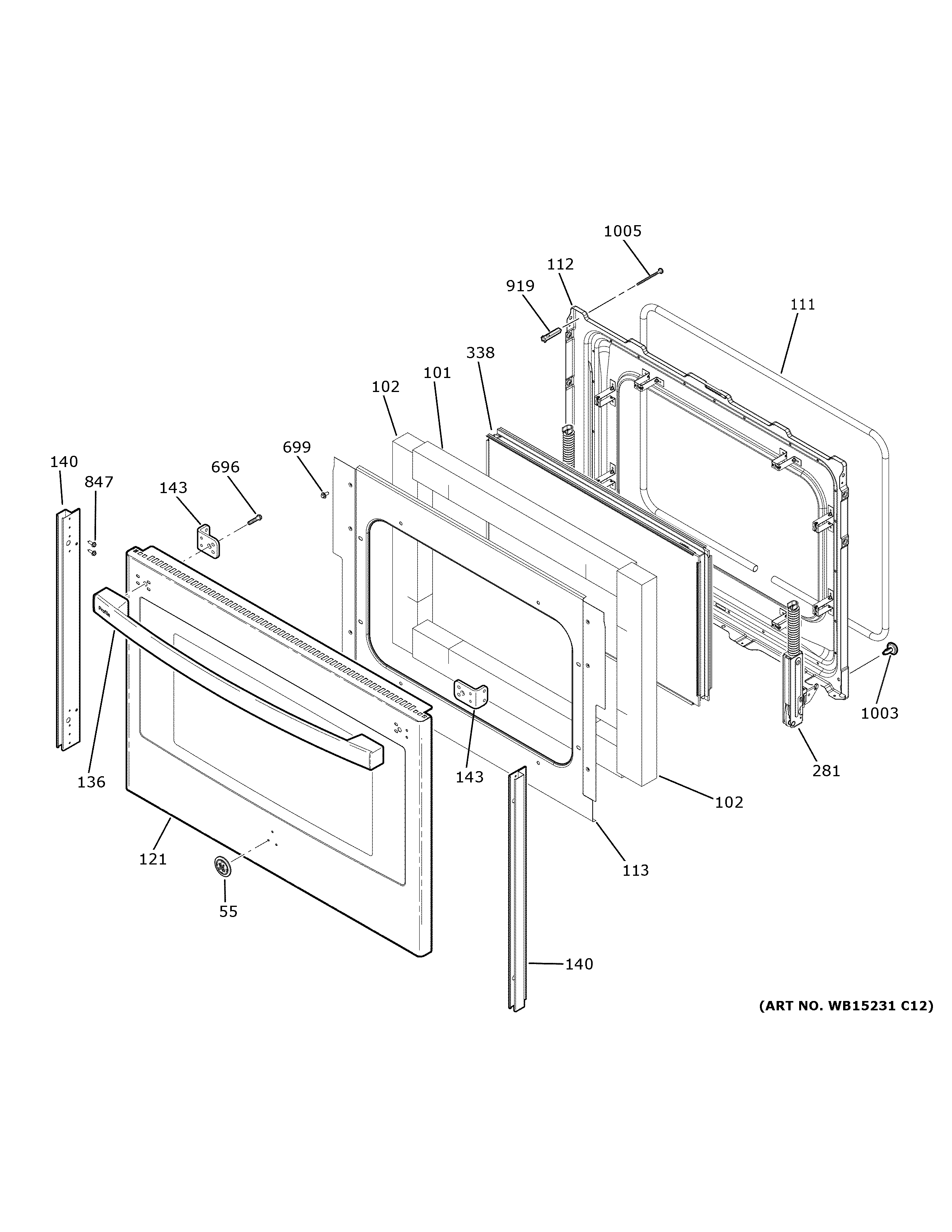

PS960BL5TS LOWER DOOR

Products

PositionProduct
55WB02X29637 GE Oven Badge Assembly
101WB35X30052 GE Oven Door Insulation Assembly
102WB35X30053 GE Oven Door Insulation
111WB04T10076 GE Oven Door Gasket
112WB63X32774 GE Oven Door Liner Assembly
113WB02T10371 GE Oven Retainer Insulation
121OUTER DOOR PANEL ASM TS
136HANDLE & ENDCAP ASM 30" (TS)
140WB56X21397 GE Door Frame Side
143WB34X25638 GE Door Handle Bracket (Black)
281WB10X30492 GE Door Hinge Right
281WB10X30491 GE Left Door Hinge
338WB56X22160 GE Stove Inner Door Glass Assembly
696WB01T10137 GE Screw 6-32 TR3 PNT 1.405
699WB1M1 GE Oven Screw
847WZ4X245D GE Screw Package
919WB02X25272 GE Door Spacer
1003WB01T10008 GE Oven Screw 10-32
1005WB01X27933 GE Scr 10-32 Ca Trt 3.30
