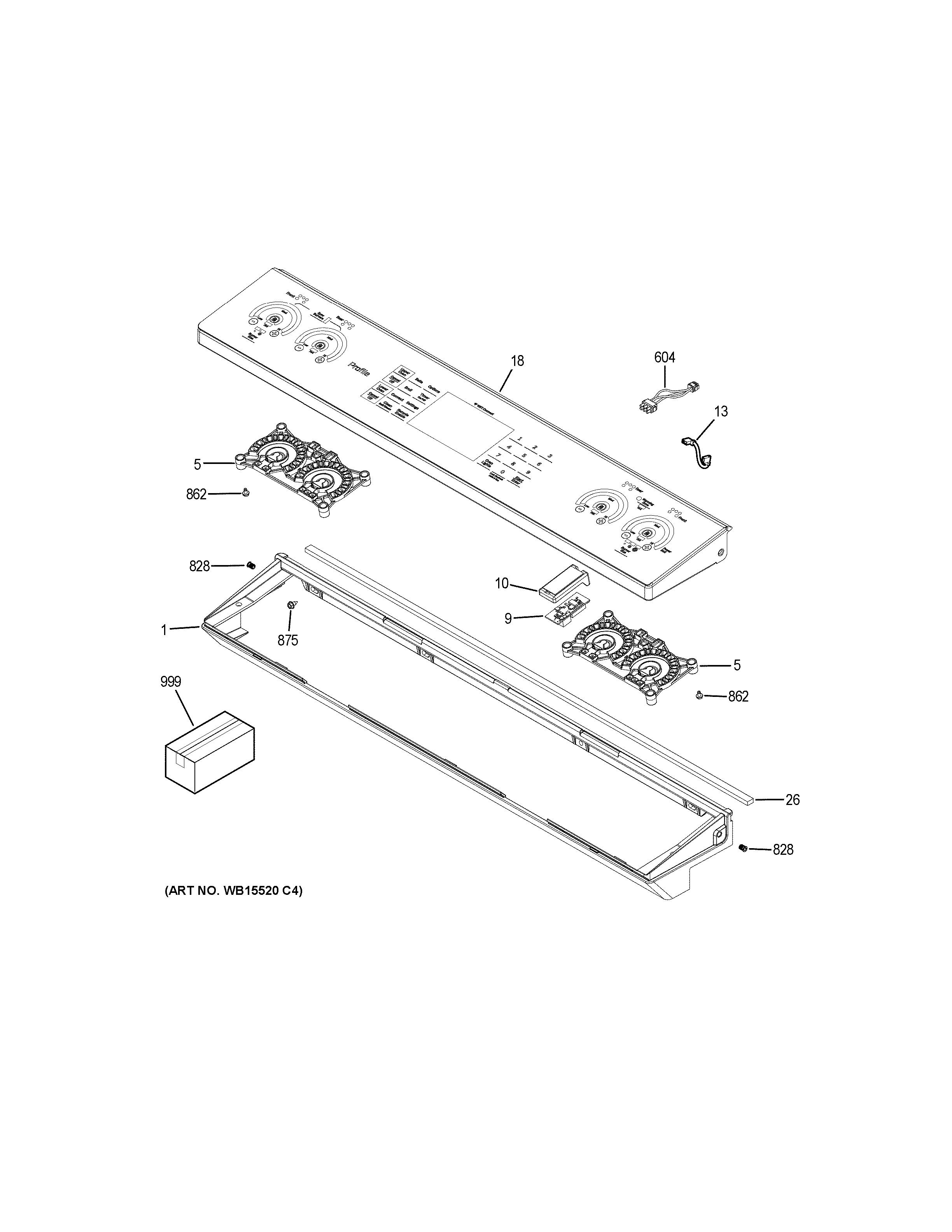

| 1 | LABEL WIRE DIAGRAM |
| 1 | CONTROL PANEL TRIM ASM |
| 5 | WB63X29528 GE Oven Control Lights Guide |
| 9 | WB27X33353 GE Wi-Fi Module Kit |
| 10 | WB02X20265 GE Transceiver Housing |
| 13 | WB18X30704 GE Jumper |
| 18 | WB27X40489 GE Oven Black Slate Control Panel |
| 26 | WB35X29473 GE Oven Gasket Control Panel |
| 604 | WB18X30745 GE 14 Ga Green Lead Wire |
| 828 | WB01X29474 GE Oven Plug Insert |
| 862 | GEN WB01X1178 |
| 875 | WH2X930 GE Screw |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | PM INSTRUCTION CLEANING |
| 999 | PM WI FI INSTRUCTIONS |
| 999 | INSTRUCTION INSTALL |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | PM OWNERS MANUAL |
