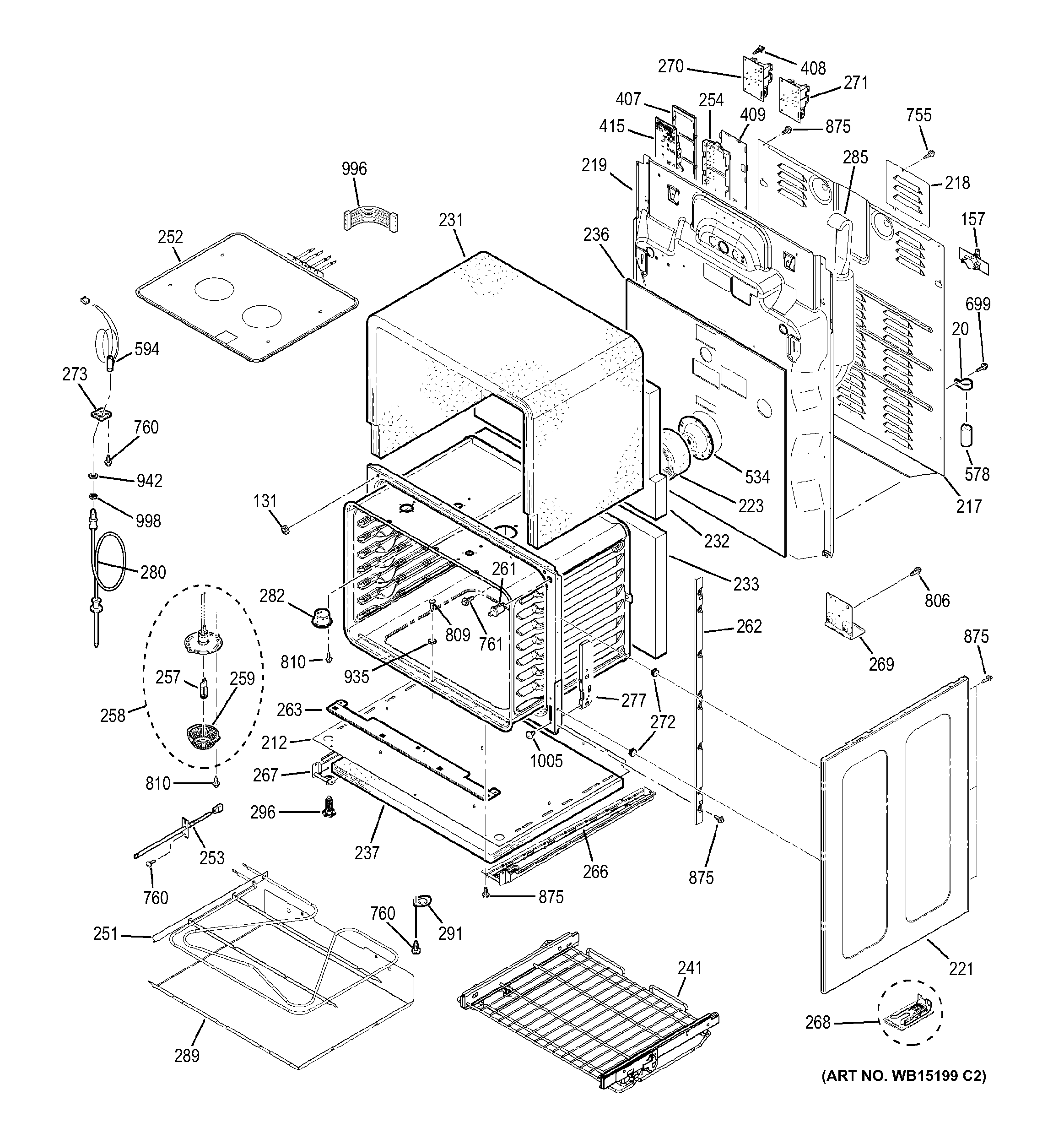

PS978ST1SS LOWER OVEN

PS978ST1SS LOWER OVEN

Written by

in

PS978ST1SS LOWER OVEN

Products

PositionProduct
20BRACKET CAPACITIOR
131WB01T10022 GE Oven Door Bumper
157WB24T10105 GE Oven Runaway TCO
212GEN WB39T10015
217WB34X21469 GE Main Wire Cover
218WB02T10564 GE Oven Terminal Block Cover
219GEN WB02T10534
221WB56X28881 GE Oven Side Panel Black
221GEN WB63T10175
223WB35T10223 GE Oven Back Insulation
231WB35T10170 GE Oven Insulation Wrapper
233WB35X25122 GE Back Insulation
233WB35X25048 GE Back Insulation
236GEN WB35T10180
237GEN WB35T10228
241GEN WB48T10091
251WB44T10082 GE Oven Bake Element
252GEN WB44T10095
253WB21X22134 GE Oven Sensor Assembly
254WB27T11357 GE Oven Assembly Frame Board
257WB08T10045 GE Oven G9 Halogen Lamp
258GEN WB25T10097
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263COVER FRONT
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB02T10542 GE Strain Relief Bracket
270WB27T11355 GE Oven Relay Board Daughter
271WB27T11358 GE Oven Relay Daughter Board
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
285WB38T10037 GE Vent Tube Lower Assembly
289WB49T10071 GE Oven Reflector Pan
291WB02T10487 GE Hole Cover
296WB02X10521 GE Oven Leveling Leg
407WB02T10512 GE Range Relay Board Frame
408WB02T10477 GE Standoff PCB
409WB02T10562 GE Range Auxiliary Board Bracket
415WB27T11356 GE Oven Printed Circuit Board Assembly
534WB26T10015 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
594WB18T10394 GE Oven Wire Probe Harness
699WB1M1 GE Oven Screw
755WB01T10084 GE Screw 8-32 x .343 Truss
760WB1X536 GE Oven Screw
761SCR 8-18 AB PNT15 5/8 S
806GEN WH02X0941
809WB1X5364 GE Oven Mounting Screw
810WH2X1186 GE Screw
875WZ4X245D GE Screw Package
935WB1K5046 GE Oven Washer
942WB1X5573 GE Oven Washer
996WB18T10463 GE Oven Harness Wire HB
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
