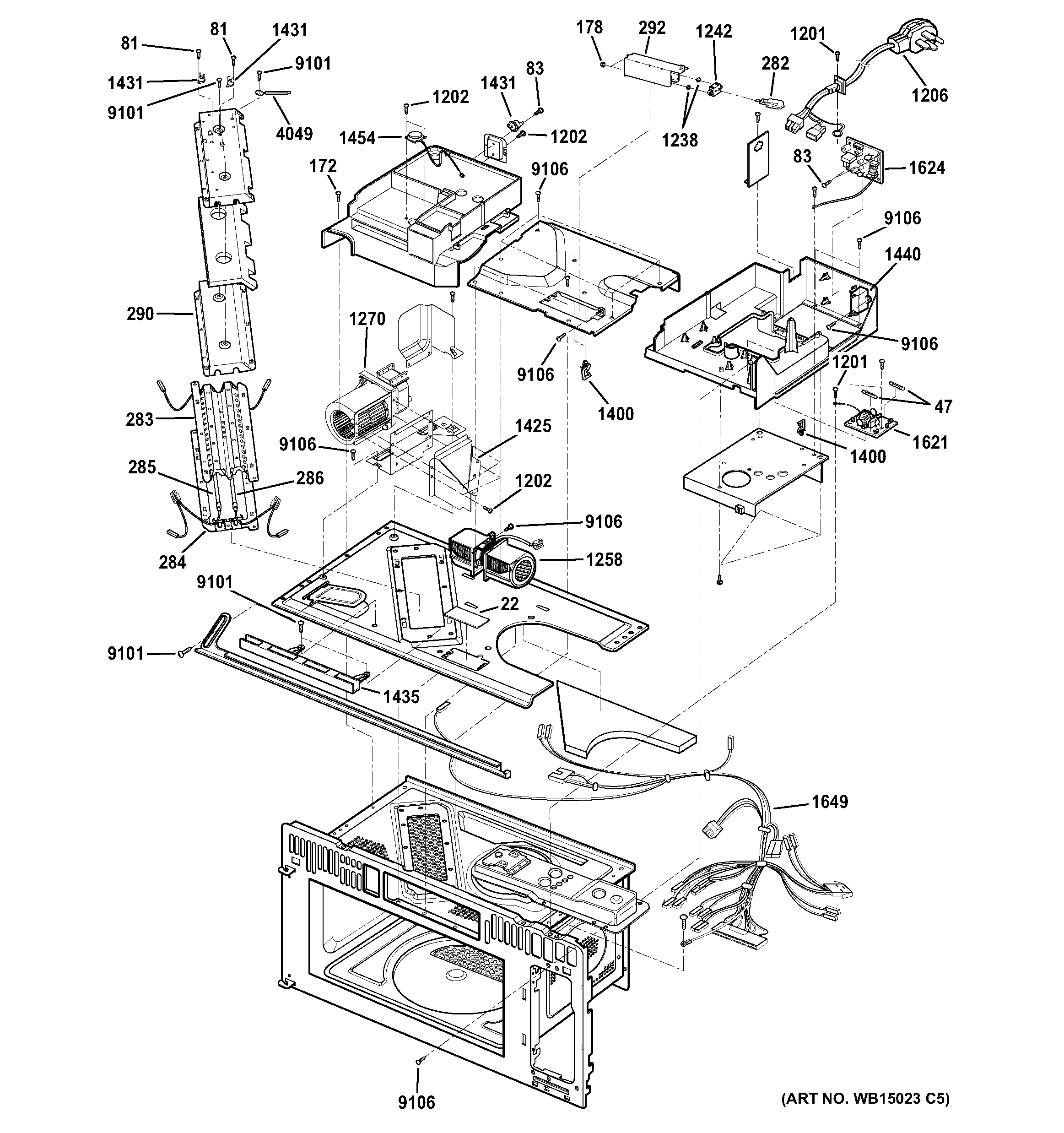

PSA2201RSS01 INTERIOR PARTS (2)

PSA2201RSS01 INTERIOR PARTS (2)

Written by

in

PSA2201RSS01 INTERIOR PARTS (2)

Products

PositionProduct
22WB36X40675 GE Glass Cover
47WB27X10928 GE Oven Line Fuse
81SCREW TAPPING,PAN HEAD
83WB02X10729 GE Oven Main PCB Assembly Screw
178WB02X32755 GE Hexagon Nut
282WB25X10019 GE Range Oven Cooktop Appliance Halogen Lamp 20W 120V
283WB06X10843 GE Reflector
284WB06X32806 GE Supporter
285WB44X10057 GE Oven Halogen Heater
286WB21X28572 GE Oven Halogen Heater
290WB06X10838 GE Oven Heater Cover
292WB02X11291 GE Oven Lamp Cover
1201WB02X10745 GE Binding Head Screw
1202WB02X10730 GE Pan Head Tapping Screw
1206WB18X10419 GE Oven Power Cord Assembly
1238SUPPORTER,HOUSING
1242GEN WB06X10554
1258WB26X10244 GE Oven Ventilation AC Motor
1270MOTOR, AC BLOWER
1400WB02X10532 GE Oven Wire Holder
1425WB39X10027 GE Oven Air Guide
1431WB20X10048 GE Oven Thermostat
1435WB02X32758 GE Wire Holder
1440WB27X10808 GE Oven Capacitor
1454WB27X10857 GE Oven Sensor Assembly
1621WB02X35396 GE Filter
1624WB27X32756 GE Oven Power Board
1649WB18X10458 GE Harness Single
4049HOLDER WIRE
9101WB1X1514 GE Oven Screw
9106WB1X1515 GE Oven Screw
