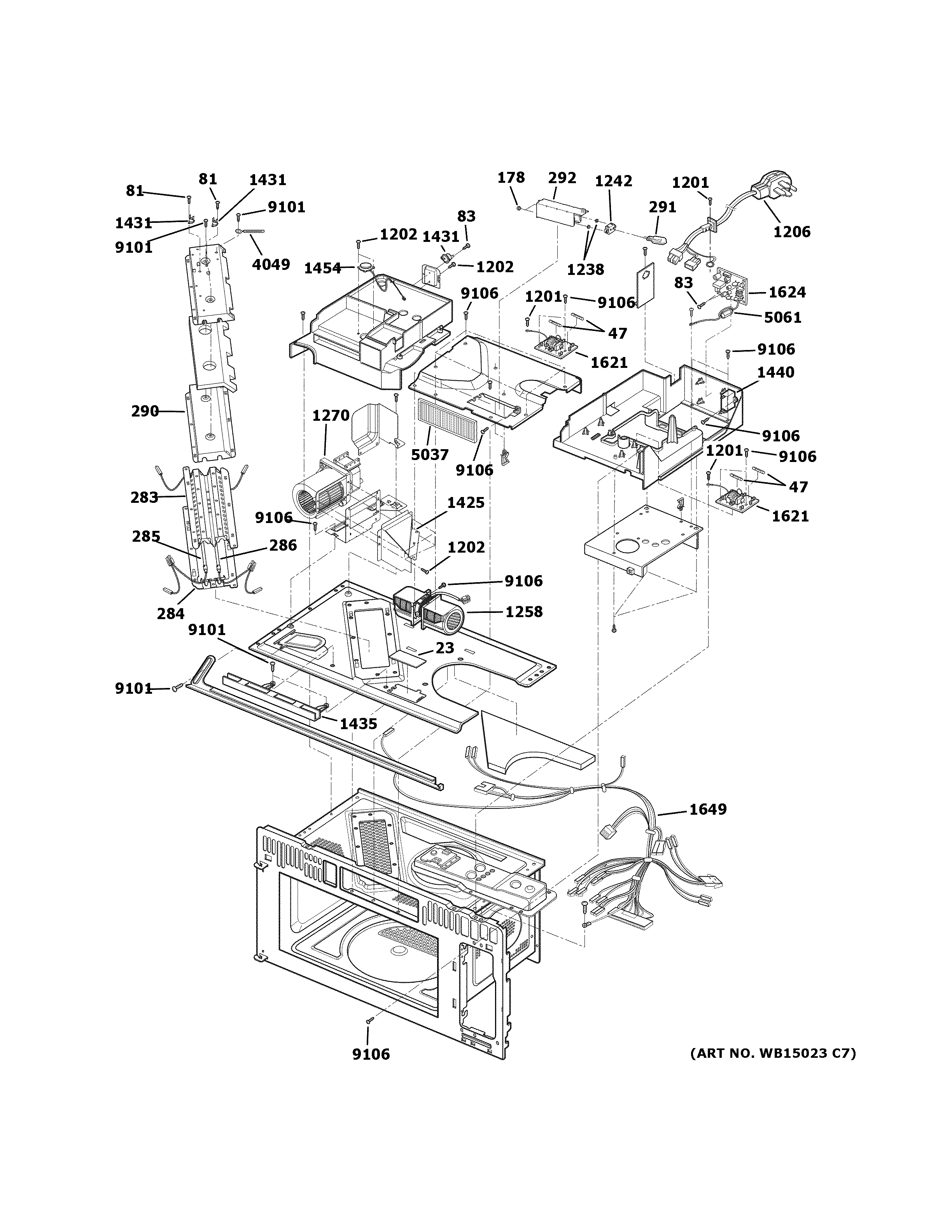

PSA9240SP1SS INTERIOR PARTS (2)

PSA9240SP1SS INTERIOR PARTS (2)

Written by

in

PSA9240SP1SS INTERIOR PARTS (2)

Products

PositionProduct
23WB36X40675 GE Glass Cover
47WB27X10928 GE Oven Line Fuse
81SCREW TAPPING,PAN HEAD
83WB02X10729 GE Oven Main PCB Assembly Screw
178WB02X32755 GE Hexagon Nut
283WB06X32804 GE Reflector
284WB06X32806 GE Supporter
285WB44X10057 GE Oven Halogen Heater
286WB21X28572 GE Oven Halogen Heater
290HEATER COVER
291HALOGEN LAMP
292WB02X32757 GE Lamp Cover
1201WB02X10745 GE Binding Head Screw
1202WB02X10730 GE Pan Head Tapping Screw
1206WB18X10419 GE Oven Power Cord Assembly
1238SUPPORTER,HOUSING
1242GEN WB06X10554
1258WB26X10244 GE Oven Ventilation AC Motor
1270MOTOR, AC BLOWER
1425WB39X32805 GE Air Guide
1431WB20X10048 GE Oven Thermostat
1435WB02X32758 GE Wire Holder
1440WB27X36065 GE Capacitor
1454WB27X10857 GE Oven Sensor Assembly
1621WB02X35396 GE Filter
1624WB27X32756 GE Oven Power Board
1649MAIN HARNESS
4049HOLDER WIRE
5037WB02X35637 GE Filter Charcoal
5061FILTER
9101WB1X1514 GE Oven Screw
9106WB1X1515 GE Oven Screw
