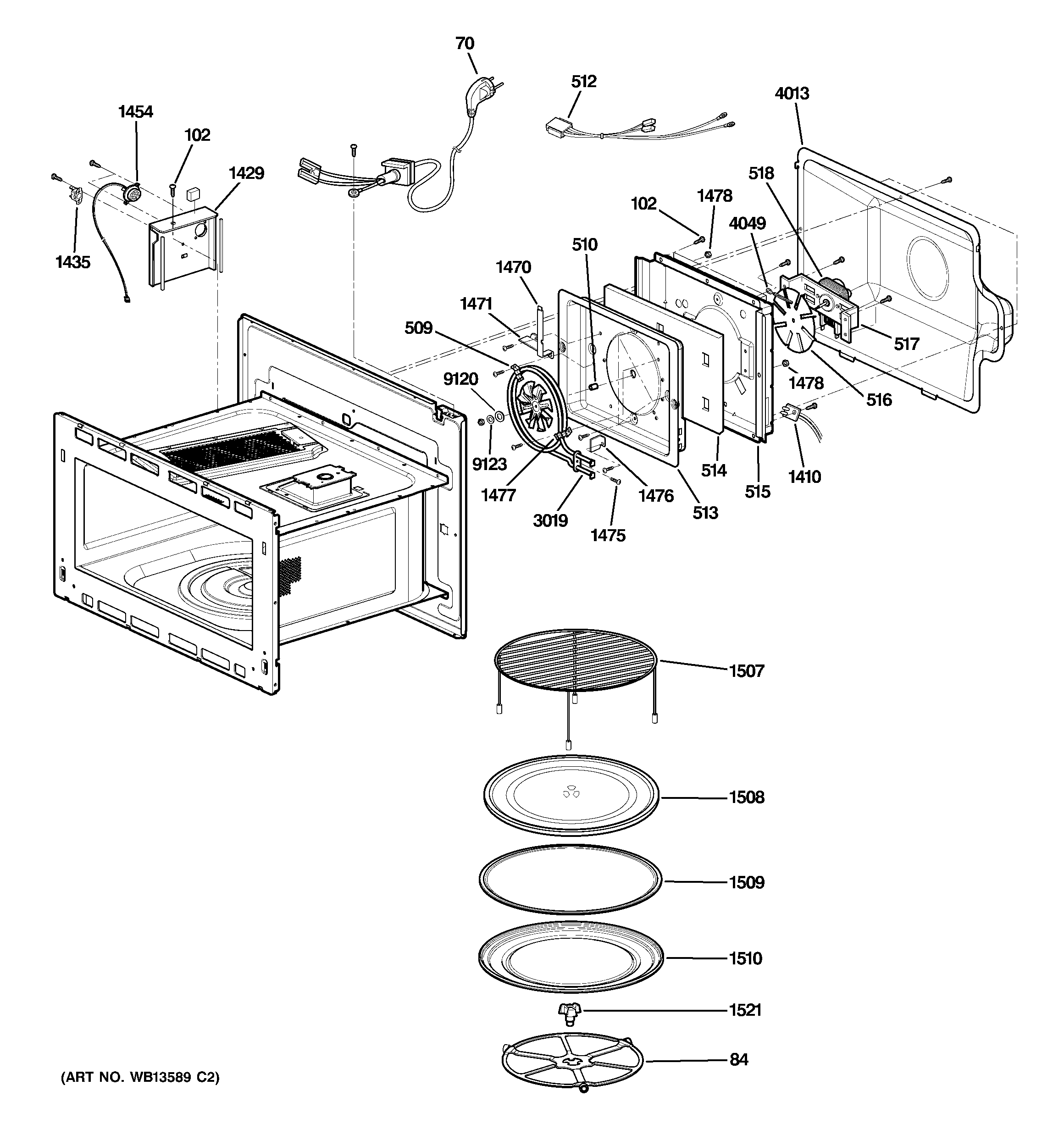

PSB1000NBB01 INTERIOR PARTS (1)

PSB1000NBB01 INTERIOR PARTS (1)

Written by

in

PSB1000NBB01 INTERIOR PARTS (1)

Products

PositionProduct
70WB18X26911 GE Power Cord Assembly
84WB02X32600 GE Microwave Rotating Ring Assembly
102WB1X1514 GE Oven Screw
509WB26X32609 GE Oven Fan Motor
510WB1X1518 GE Ringshaft
512LEAD WIRE ASM
513CHAMBER
514WB06X10650 GE Glass Wool
515WB06X10642 GE Chamber
516WB6X475 GE Oven Blade Motor CL
517WB02X10542 GE Range Motor Bracket
518WB26X10084 GE Microwave Cooling Fan Motor
1410WB18X10287 GE Oven NTC Thermistor
1429AIR TUNNEL
1435WB21X10149 GE Oven Thermostat
1454WB27X10857 GE Oven Sensor Assembly
1470WB02X32680 GE Heater Bracket
1471BRACKET HEATER
1475WB1X1504 GE Truss Screw
1476BRACKET HEATER
1477WB02X32605 GE Heater Holder
1478WB1X1520 GE Oven Hexagon Nut
1507WB49X10213 GE Oven Rack
1508WB27X43590 GE Microwave Glass Tray
1509WB49X10187 GE Oven Metal Tray
1510METAL TRAY
1521WB06X10693 GE Oven Shaft Assembly
3019WB44X10050 GE Oven Heater Sheath
4013COVER BACK
4049HOLDER WIRE
