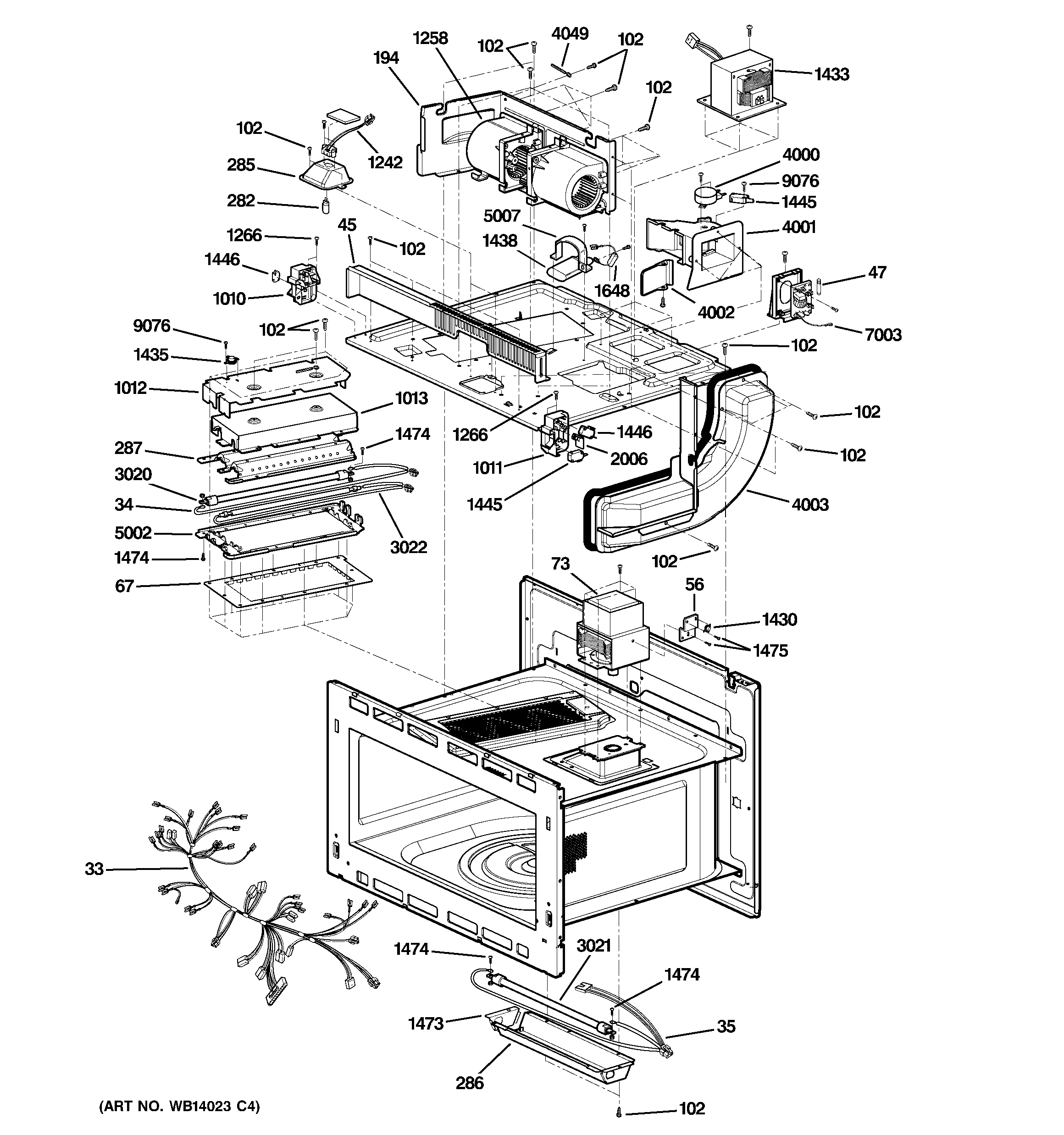

PSB1000NBB01 INTERIOR PARTS (2)

PSB1000NBB01 INTERIOR PARTS (2)

Written by

in

PSB1000NBB01 INTERIOR PARTS (2)

Products

PositionProduct
33WB18X10439 GE Oven Main Harness
34WB18X33768 GE Wire Harness
35WB18X32597 GE Wire Harness
45WB34X32592 GE Microwave Protector
47WB27X10928 GE Oven Line Fuse
56WB06X10570 GE Microwave Bracket
67WB02X32582 GE Bracket
73MAGNETRON
102WB1X1514 GE Oven Screw
194WB02X32599 GE Motor Bracket
282WB25X10019 GE Range Oven Cooktop Appliance Halogen Lamp 20W 120V
285WB34X32583 GE Light Cover
286REFLECTOR
287WB02X32572 GE Oven Heat Shield
1010WB10X32573 GE Oven Left Hand Latch Board
1011WB10X32577 GE Oven Right Hand Latch Board
1012WB34X32589 GE Heater Cover
1013WB06X32848 GE Heater Cover
1242WB06X10646 GE Oven Holder Assembly
1258WB26X10182 GE Oven Circular Circulation Motor
1266WB01X10121 GE Oven Screw
1430THERMOSTAT
1433TRANSFORMER HIGH VOLTAGE
1435WB21X10149 GE Oven Thermostat
1438WB27X11033 GE Oven High Voltage Capacitor
1445WB24X25397 GE Oven Interlock Monitor Switch
1446PRIMARY INTERLOCK SWITCH
1473WB02X11223 GE Heater Bracket
1474WB02X10726 GE Screw
1475WB1X1504 GE Truss Screw
1648DIODE-CABLE
2006WB02X32588 GE Oven Lever
3020WB44X41527 GE Miraclon Heater
3021WB44X41528 GE Miraclon Heater
3022WB21X28572 GE Oven Halogen Heater
4000WB26X10248 GE Oven Synchronous AC Motor
4001WB34X32607 GE Duct Assembly
4002WB02X40028 GE Damper Bracket
4003WB34X32594 GE Duct Assembly
4049HOLDER WIRE
5002WB02X32606 GE Support
5007WB02X32593 GE Bracket Capacitor
7003FILTER ASM NOISE
9076GEN WB01X1509
