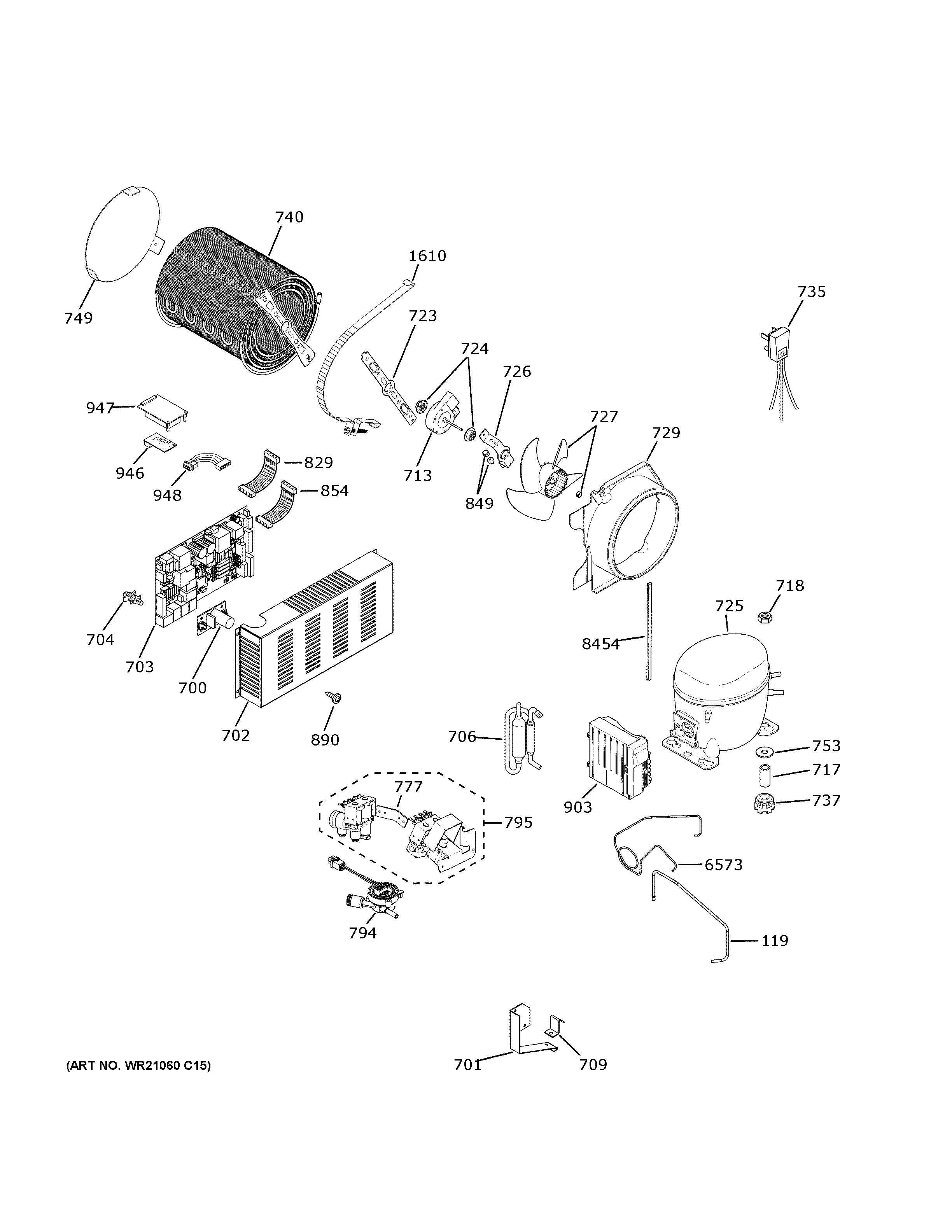

PSB42YSNFSS MACHINE COMPARTMENT

PSB42YSNFSS MACHINE COMPARTMENT

Written by

in

PSB42YSNFSS MACHINE COMPARTMENT

Products

PositionProduct
119WR84X32682 GE Discharge Tube
700POWER SUPPLY PCB
701WR02X12198 GE Refrigerator Bracket Water Valve
702WR02X29774 GE Refrigerator Main Board Cover
703REFRIGERATOR MAIN CONTROL BOAR
704WR02X29169 GE Main Board Standoff
706WR87X30875 GE Refrigerator R600 Dryer with Red Cap
709WR02X12569 GE Bracket System Pan
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
717WR01X10305 GE Refrigerator Steel Collar
718WR01X10044 GE Refrigerator 1/4-20 Hex Nut
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725WR87X32565 GE Refrigerator Compressor
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR55X29405 GE Refrigerator Power Cord
737WR02X22869 GE Refrigerator Grommet
740WR02X32654 GE Condenser and Bracket Assembly
749WR17X13159 GE Refrigerator Baffle Condenser Air
753WR01X10308 GE Flat Washer 3/8" x 7/8"
777WR02X10370 GE Refrigerator Water Valve Bracket
794WR57X32245 GE Refrigerator Flow Meter
795BRACKET AND VALVE ASM
829MAIN HARNESS AC
849BUMPER
854MAIN HARNESS DC
890WD2X295 GE Refrigerator Screw
903WR55X32676 GE Refrigerator Inverter
946WR55X34645 GE Refrigerator Wifi and Humidity Board
947WIFI HOUSING
948WR55X26908 GE Refrigerator WiFi Jumper Harness
1610Condenser Strap
6573WR84X32630 GE Refrigerator Suction Tube
8454WR38X10190 GE Refrigerator Edge Trim
