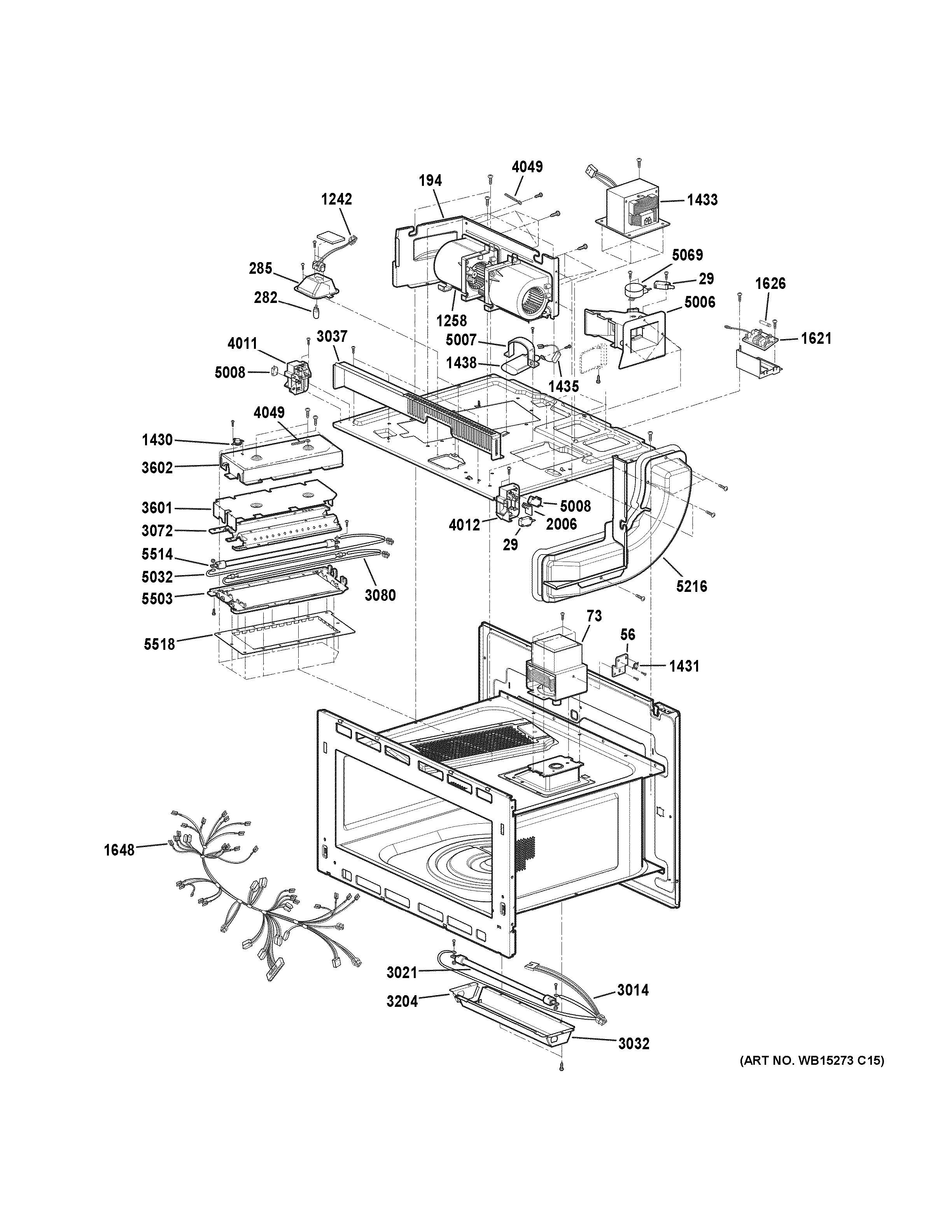

PSB9100SF2SS INTERIOR PARTS (2)

PSB9100SF2SS INTERIOR PARTS (2)

Written by

in

PSB9100SF2SS INTERIOR PARTS (2)

Products

PositionProduct
29WB24X25397 GE Oven Interlock Monitor Switch
56WB06X10570 GE Microwave Bracket
73MAGNETRON
194WB02X32599 GE Motor Bracket
282HALOGEN LAMP
285WB34X32583 GE Light Cover
1242WB06X10646 GE Oven Holder Assembly
1258WB26X10182 GE Oven Circular Circulation Motor
1430WB21X10149 GE Oven Thermostat
1431THERMOSTAT
1433TRANSFORMER HIGH VOLTAGE
1435DIODE-CABLE
1438WB27X11033 GE Oven High Voltage Capacitor
1621WB02X35865 GE Noise Filter Board
1626WB27X10928 GE Oven Line Fuse
1648WB18X32853 GE Oven Single Harness
2006WB02X32588 GE Oven Lever
3014WB18X32597 GE Wire Harness
3021WB44X41528 GE Miraclon Heater
3032REFLECTOR
3037WB34X32592 GE Microwave Protector
3072WB02X32572 GE Oven Heat Shield
3080WB21X28572 GE Oven Halogen Heater
3204WB02X11223 GE Heater Bracket
3601WB06X32848 GE Heater Cover
3602WB34X32589 GE Heater Cover
4011WB10X32573 GE Oven Left Hand Latch Board
4012WB10X32577 GE Oven Right Hand Latch Board
4049HOLDER WIRE
5006WB34X32607 GE Duct Assembly
5007WB02X32593 GE Bracket Capacitor
5008PRIMARY INTERLOCK SWITCH
5032WB18X33768 GE Wire Harness
5069WB26X10248 GE Oven Synchronous AC Motor
5216WB34X32594 GE Duct Assembly
5503WB02X32606 GE Support
5514WB44X41527 GE Miraclon Heater
5518WB02X32582 GE Bracket
