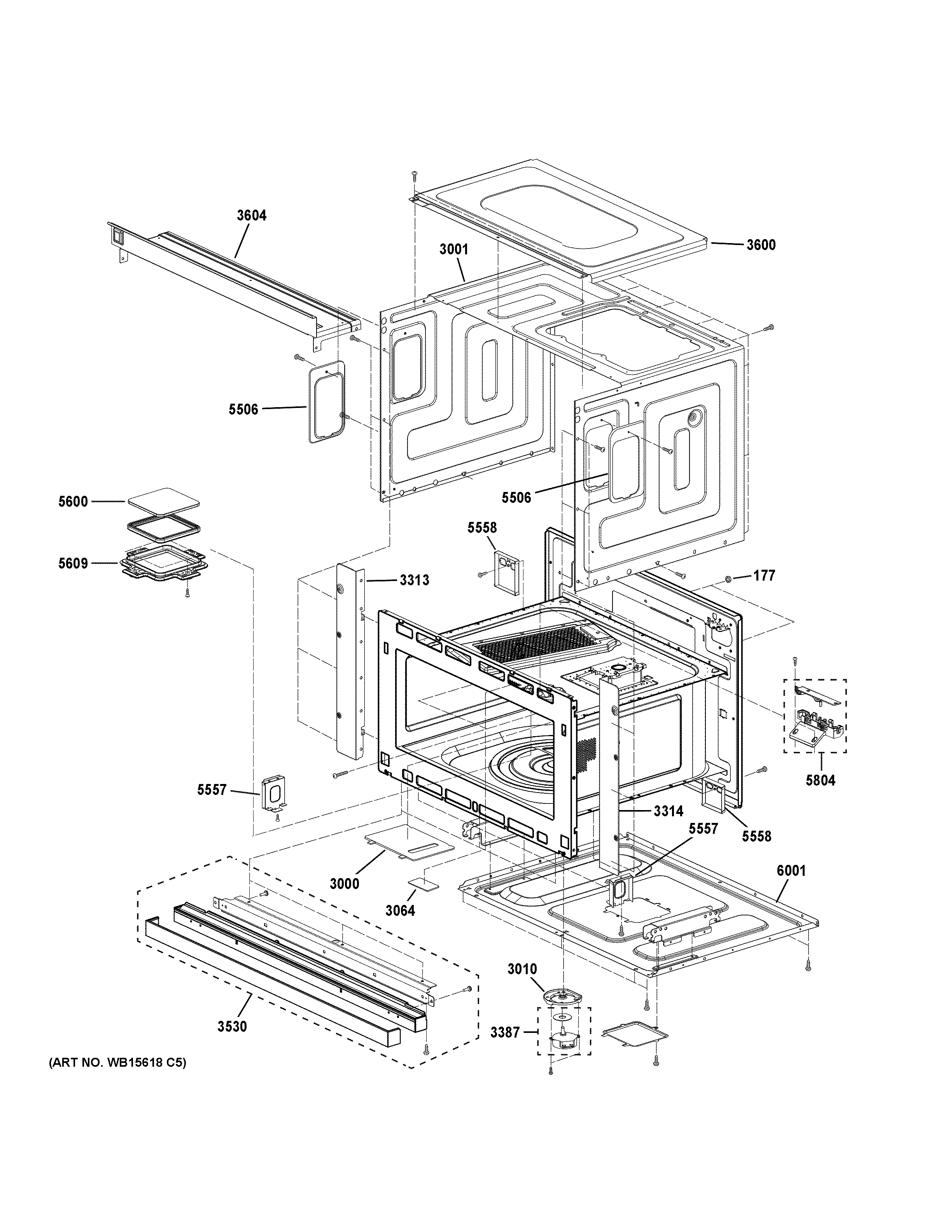

PSB9100SV1SS OVEN CAVITY PARTS

PSB9100SV1SS OVEN CAVITY PARTS

Written by

in

PSB9100SV1SS OVEN CAVITY PARTS

Products

PositionProduct
177NUT COMMON
3000CANOPY MICA
3001CASE OUTER
3010WB34X32596 GE Mount
3064SEAL TAPE
3313TRIM LEFT
3314WB07X33410 GE Right Trim
3387WB26X33510 GE Motor with Gasket
3530VENT ASM
3600WB07X33409 GE Top Cover
3604WB07X33407 GE Top Cover
5506WB34X32584 GE Door Switch Access Cover
5557WB02X32591 GE Bracket
5558WB02X32587 GE Bracket
5600WINDOW GLASS
5609SUPPORTER WINDOW
5804CAMERA MODULE ASSEMBLY
6001PLATE BASE
