PSC23MGMBBB FREEZER DOOR

PSC23MGMBBB FREEZER DOOR

Written by

in

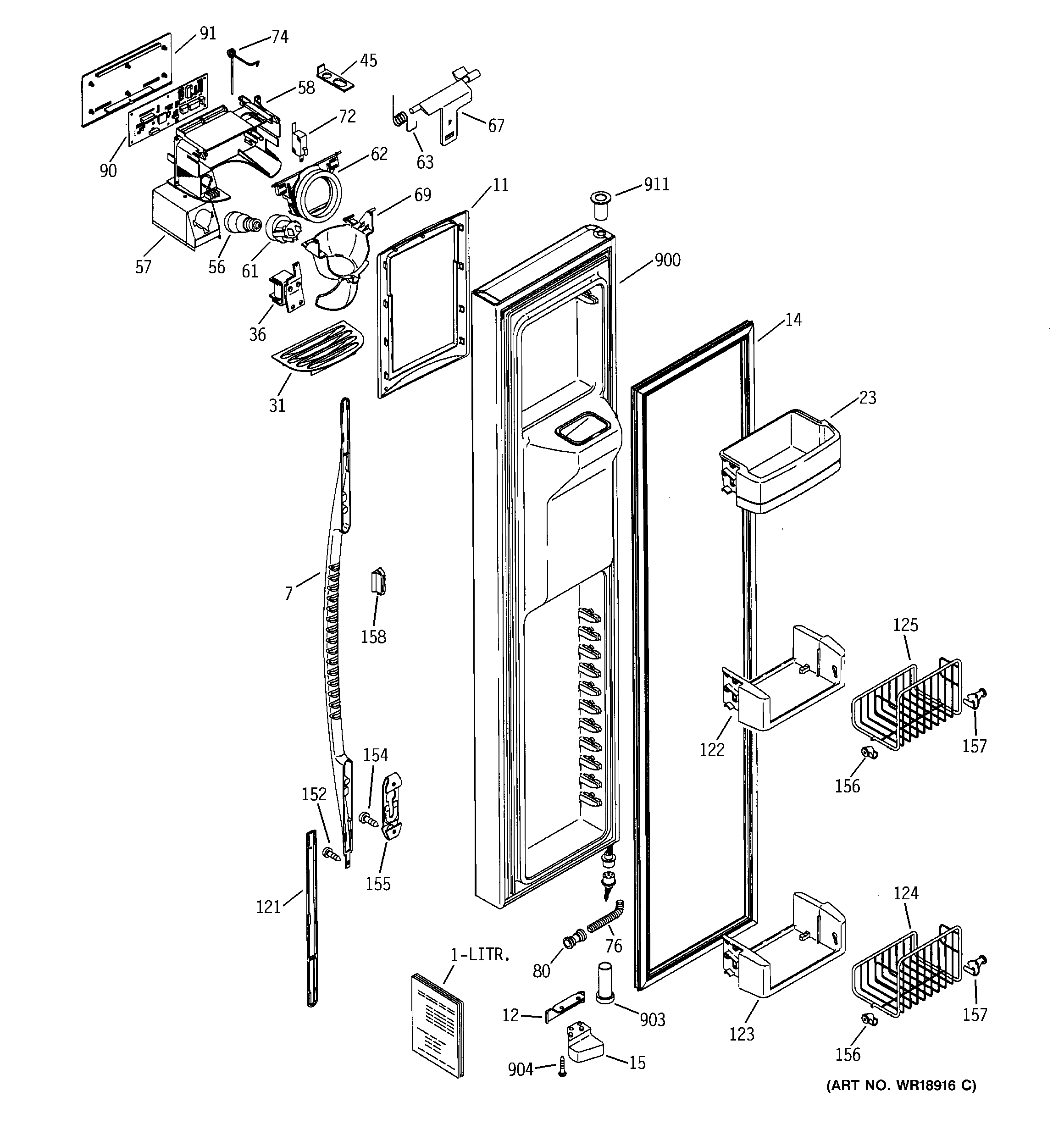

PSC23MGMBBB FREEZER DOOR

Products

Position	Product
1	GEN 49-60132
1	MINI MANUAL WIRING
7	GEN WR12X10430
11	WR38X10237 GE Refrigerator Black Recess Trim
12	WR02X13425 GE Refrigerator Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10780 GE Refrigerator Cam Closure
16	WR02X10779 GE Refrigerator Door Closure Cam
23	WR71X10254 GE Refrigerator Fixed Shelf Module
31	WR17X11655 GE Refrigerator Grille Recess Black
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
56	WR01X37886 GE Refrigerator Dispenser Light
57	WR02X10670 GE Refrigerator Reflector Light
58	WR17X11170 GE Refrigerator Housing Shield Dispenser
61	WR2X9561 GE Refrigerator Lamp Socket
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X11267 GE Refrigerator Ice Dispenser Funnel
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	GEN WR02X10584
76	GEN WR02X8933
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90	GEN WR55X10063
91	GEN WR55X10076
103	WR24X20456 GASKET
104	GEN WR04X10103
106	GEN WR22X10022
107	GEN WR22X10021
109	WR71X10979 GE Refrigerator Module Shelf Fresh Food
110	WR71X10297 GE Refrigerator Shelf Module
111	WR71X10788 GE Refrigerator Fixed Insert Module
112	WR02X10582 GE Refrigerator Modu Snug R
115	WR71X10973 GE Refrigerator Door Shelf Bin
116	GEN WR22X10023
117	WR22X10059 GE Refrigerator Butter Dish Lid
118	GEN WR22X10018
121	GEN WR12X10429
122	WR71X10256 GE Refrigerator Module Support
123	GEN WR71X10255
124	WR21X10111 GE Refrigerator Basket Wire TILTOUT
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
127	WR71X10764 GE Door Shelf Insert Module
152	GEN WR01X10038
154	SCR 8-18 AB RNT20 5/8 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
156	GEN WR13X10130
157	GEN WR13X10131
158	GEN WR02X10646
900	GEN WR78X10433
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
910	GEN WR78X10432
911	WR01X10956 GE Door Thimble
912	WR01X10232 GE Refrigerator Door Thimble
