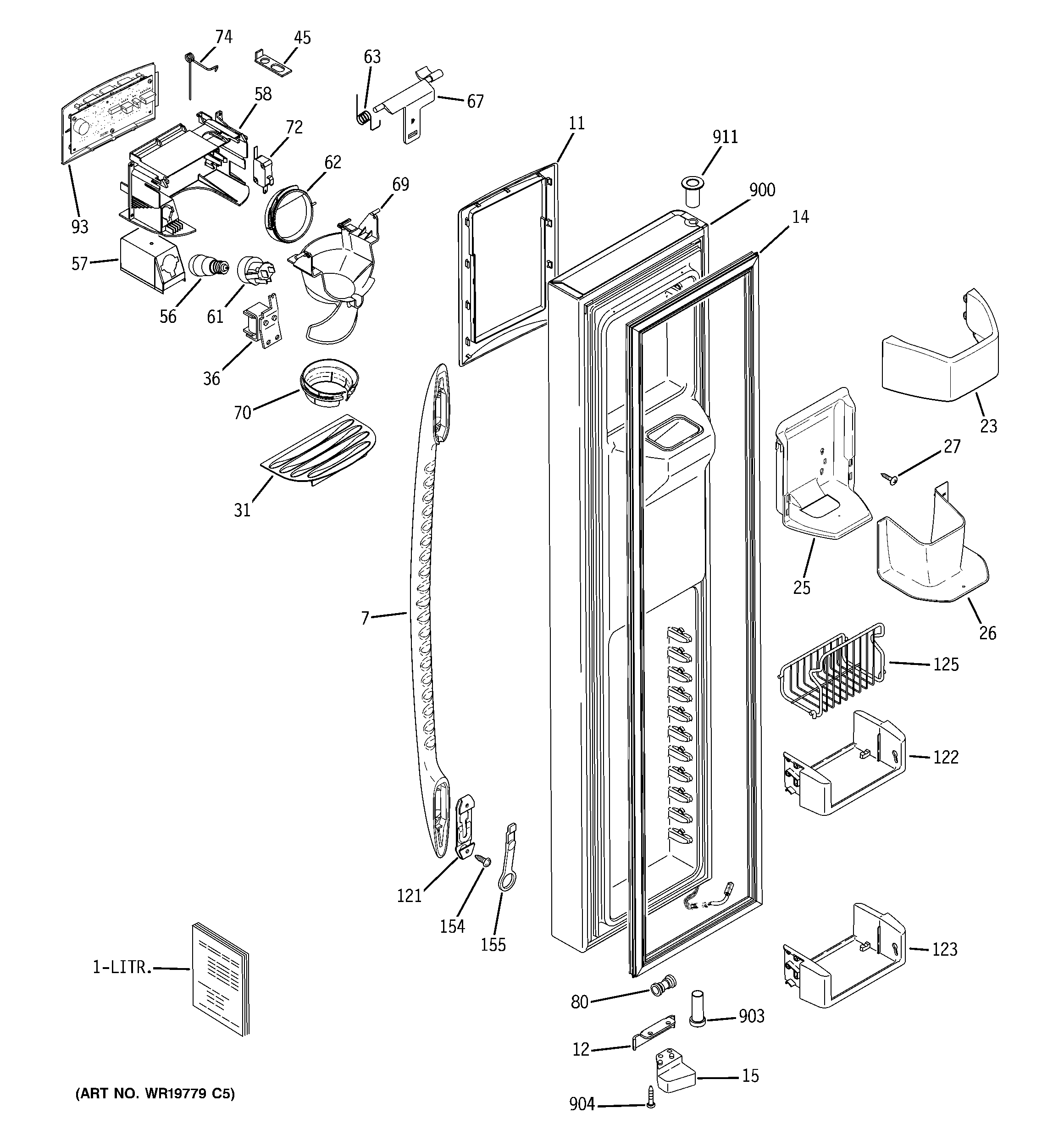

PSC23MGSABB FREEZER DOOR

PSC23MGSABB FREEZER DOOR

Written by

in

PSC23MGSABB FREEZER DOOR

Products

PositionProduct
1GEN 49-60297
1GEN 31-51573
1WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
1GEN 31-51607
1WR02X12188 GE Refrigerator Support Shelf
1WR02X12187 GE Refrigerator Support Shelf
1GEN 49-60352
7GEN WR12X10742
7GEN WR12X10741
7WR12X10731 GE Refrigerator Handle Assembly SXS White
7GEN WR12X10825
11WR38X10364 GE Refrigerator Bisque Trim Recess Dispenser
11WR38X10237 GE Refrigerator Black Recess Trim
11GEN WR38X10227
12GEN WR02X13426
12WR02X13424 GE Refrigerator Door Stop
12WR02X13425 GE Refrigerator Door Stop
14WR24X20455 GE Refrigerator Freezer Door Gasket
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10780 GE Refrigerator Cam Closure
15WR02X10638 GE Refrigerator Cam Closure
23GEN WR71X10499
25GEN WR71X10500
26WR71X10705 GE Refrigerator Ice Guide
26GEN WR71X10495
27WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31WR17X11654 GE Refrigerator White Recess Grille
31WR17X11655 GE Refrigerator Grille Recess Black
31GEN WR17X11656
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
57WR02X10670 GE Refrigerator Reflector Light
58GEN WR17X12033
58GEN WR17X11863
58WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
58WR49X10228 GE Dispenser Shield Housing Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69GEN WR17X11882
69GEN WR17X11881
69GEN WR17X11883
69GEN WR17X11966
70GEN WR17X11265
70WR49X10076 GE Refrigerator FUNL EXTN BK
70GEN WR17X11270
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10306
93GEN WR55X10305
93GEN WR55X10298
121GEN WR12X10431
121GEN WR12X10429
121WR02X12022 GE Refrigerator Locking Handle
122WR71X10256 GE Refrigerator Module Support
123WR71X10501 GE Refrigerator Fixed Shelf Module
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
154GEN WR01X10624
154WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155WR02X10643 GE Refrigerator Handle Lock Bracket
900GEN WR78X11263
900GEN WR78X11265
900GEN WR78X11267
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
904WR01X10611 GE Screw
911WR01X10956 GE Door Thimble
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10957 GE Refrigerator Door Thimble
