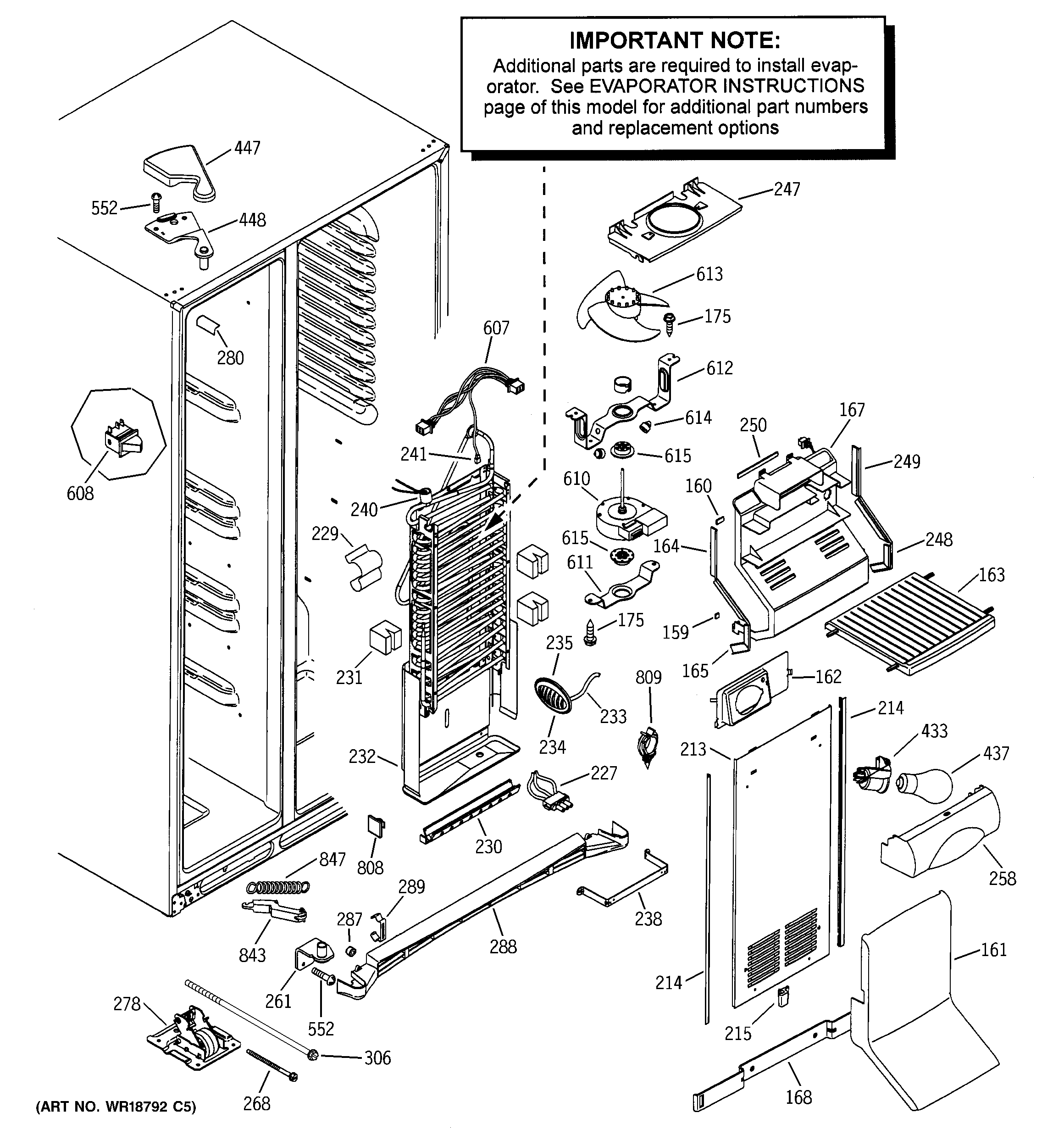

PSC23NGMACC FREEZER SECTION

PSC23NGMACC FREEZER SECTION

Written by

in

PSC23NGMACC FREEZER SECTION

Products

PositionProduct
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
161WR17X10899 GE Refrigerator Lower Air Tower
162WR02X10634 GE Refrigerator Reflector
163GEN WR71X10299
164WR14X10063 GE Plenum Gasket
165GEN WR14X10065
167GEN WR17X10928
168WR02X10674 GE Refrigerator Lower Tower Bracket
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
213GEN WR17X10795
214GEN WR14X10061
215WR01X10211 GE Refrigerator Upper Tower Bracket
227GEN WR23X10142
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
238GEN WR02X10667
240WR50X10068 GE Refrigerator Defrost Thermostat
247WR17X10812 GE Refrigerator Orifice Fan Assembly
248WR14X10066 GE Refrigerator Gasket Plenum
249GEN WR14X10064
250WR14X10069 GE Adhesive Foam Strip
258GEN WR17X10792
261GEN WR13X10170
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10785 GE Refrigerator Cap Corner O
287GEN WR02X10836
288GEN WR74X10070
289GEN WR02X7646
306WR02X12271 GE Refrigerator Mobility Screw
433WR2X9391 GE Socket and Terminal
437RANGE ONLY 40W 120V APPL BULB
447GEN WR02X10834
448WR13X10214 GE Refrigerator Top Hinge Assembly
552WR01X10631 GE Screw
607GEN WR23X10174
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
808WR2X4039 GE Refrigerator Clamp
809WR1X1936 GE Refrigerator Fastener
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
