PSC23NGPBWW FREEZER DOOR

PSC23NGPBWW FREEZER DOOR

Written by

in

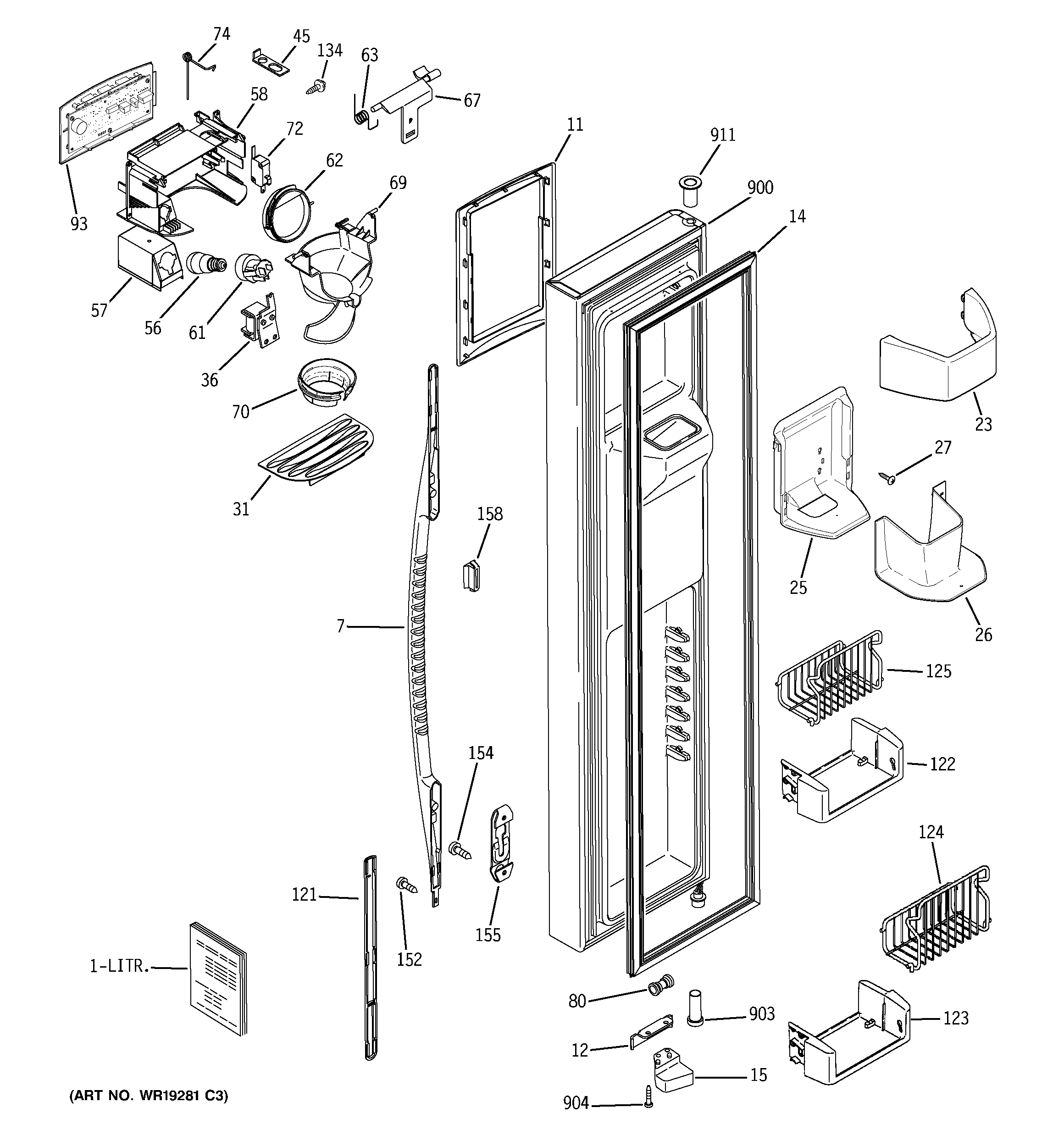

PSC23NGPBWW FREEZER DOOR

Products

PositionProduct
1GEN 31-51573
1GEN 31-51460
1GEN 49-60238
7GEN WR12X10406
11GEN WR38X10227
12WR02X13424 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10638 GE Refrigerator Cam Closure
23GEN WR71X10499
25GEN WR71X10500
26GEN WR71X10495
27WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31WR17X11654 GE Refrigerator White Recess Grille
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11264 GE Ice Funnel Assembly White
70GEN WR17X11265
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10305
121GEN WR12X10405
122WR71X10256 GE Refrigerator Module Support
123GEN WR71X10255
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
134WR01X10019 GE Refrigerator Screw 6-10 PL FLP 1/2 S
152GEN WR01X10467
154SCR 8-18 AB RNT20 5/8 S
155WR02X10643 GE Refrigerator Handle Lock Bracket
158GEN WR02X10646
900DOOR FOAM ASM WH
903WR01X10208 GE Refrigerator Door Thimble
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
