PSC23NGPCWW FREEZER SECTION

PSC23NGPCWW FREEZER SECTION

Written by

in

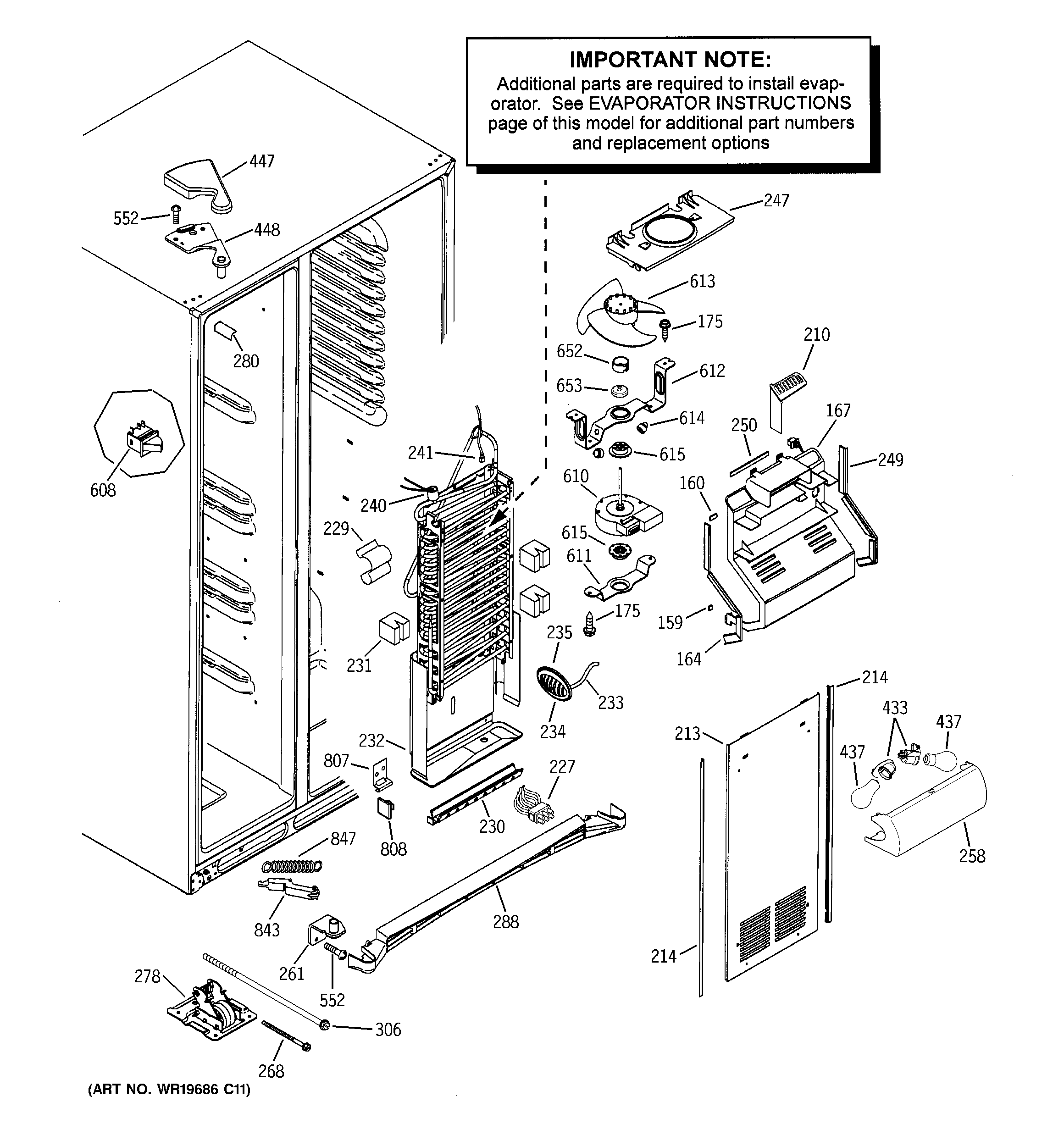

PSC23NGPCWW FREEZER SECTION

Products

PositionProduct
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
164WR14X10164 GE Refrigerator Case Gasket
167GEN WR17X11477
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
210GEN WR74X10131
213WR17X11672 GE Refrigerator Cover Evaporator Front
214WR14X10153 GE Refrigerator Gasket Evaporator Cover
227WR23X10487 GE Refrigerator AC Intermediate Harness
229GEN WR02X10552
230WR51X10042 GE Refrigerator Heater & Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10068 GE Refrigerator Defrost Thermostat
247WR17X10812 GE Refrigerator Orifice Fan Assembly
249WR14X10165 GE Refrigerator Gasket Plenum
250WR14X10069 GE Adhesive Foam Strip
258WR17X11446 GE Refrigerator Light Shield
261WR13X10137 GE Refrigerator Bottom Hinge
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10640 GE Refrigerator White Cap Corner OC
288WR74X10271 GE Refrigerator Base Grille
306WR02X12271 GE Refrigerator Mobility Screw
433WR2X9391 GE Socket and Terminal
437RANGE ONLY 40W 120V APPL BULB
447WR02X10657 GE Refrigerator White Cover Hinge
448WR13X10214 GE Refrigerator Top Hinge Assembly
552WR01X10631 GE Screw
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
807GEN WR17X11325
808WR2X4039 GE Refrigerator Clamp
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
