PSC23NGSABB FREEZER DOOR

PSC23NGSABB FREEZER DOOR

Written by

in

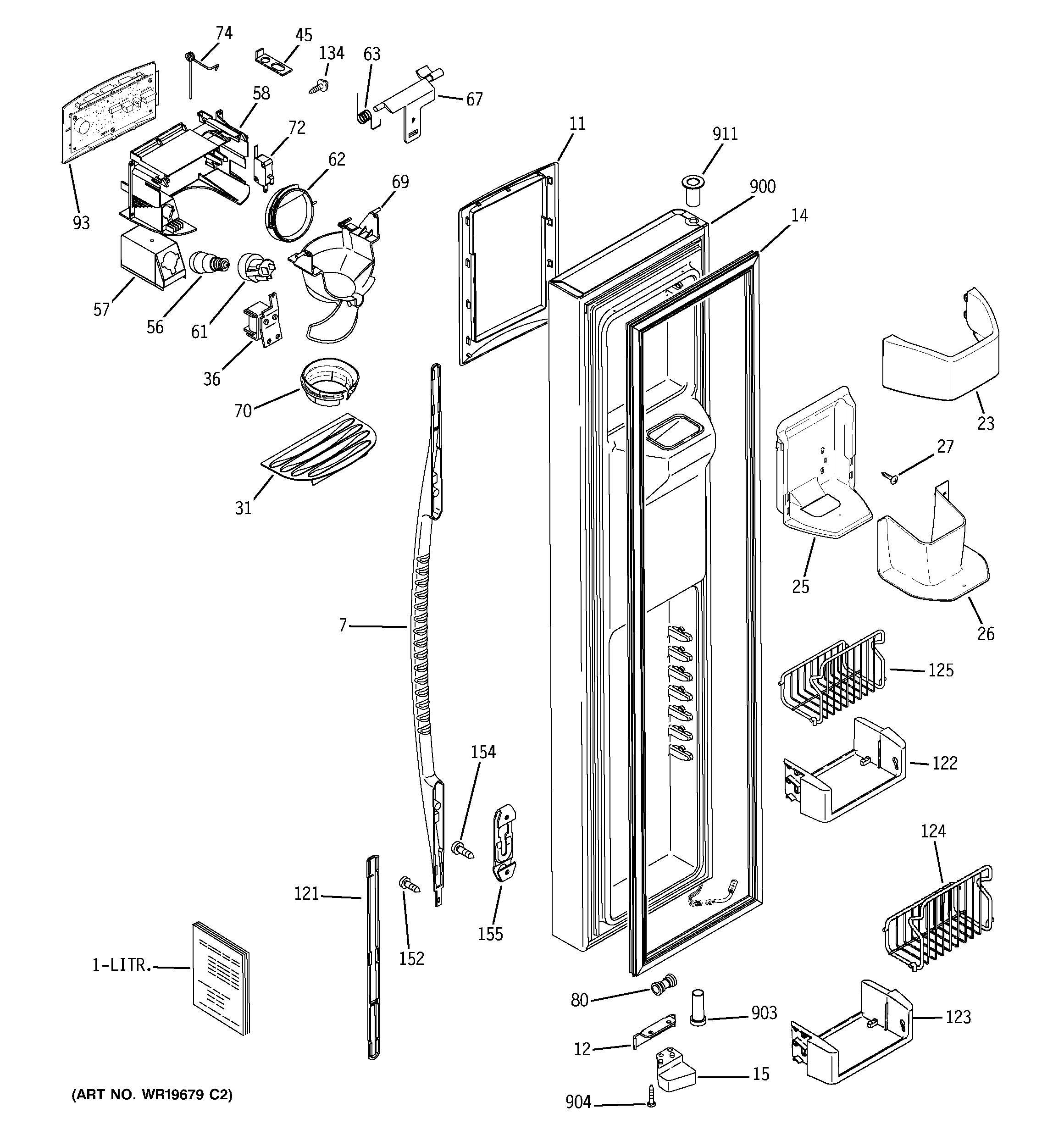

PSC23NGSABB FREEZER DOOR

Products

PositionProduct
1GEN 49-60238
1GEN 49-60342
1GEN 31-51573
1GEN 31-51607
7GEN WR12X10741
11GEN WR38X10227
11WR38X10237 GE Refrigerator Black Recess Trim
12WR02X10782 GE Refrigerator Stop Door
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10780 GE Refrigerator Cam Closure
23GEN WR71X10499
25GEN WR71X10500
26GEN WR71X10495
27WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
57WR02X10670 GE Refrigerator Reflector Light
58WR49X10228 GE Dispenser Shield Housing Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
69GEN WR17X11881
70WR49X10076 GE Refrigerator FUNL EXTN BK
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10298
121GEN WR12X10429
121GEN WR12X10405
122WR71X10256 GE Refrigerator Module Support
123GEN WR71X10255
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
134WR01X10019 GE Refrigerator Screw 6-10 PL FLP 1/2 S
152GEN WR01X10467
154SCR 8-18 AB RNT20 5/8 S
154WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155WR02X10643 GE Refrigerator Handle Lock Bracket
900GEN WR78X11263
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
903WR01X10208 GE Refrigerator Door Thimble
904WR01X10611 GE Screw
911WR01X10956 GE Door Thimble
911WR01X10955 GE Refrigerator Door Thimble
