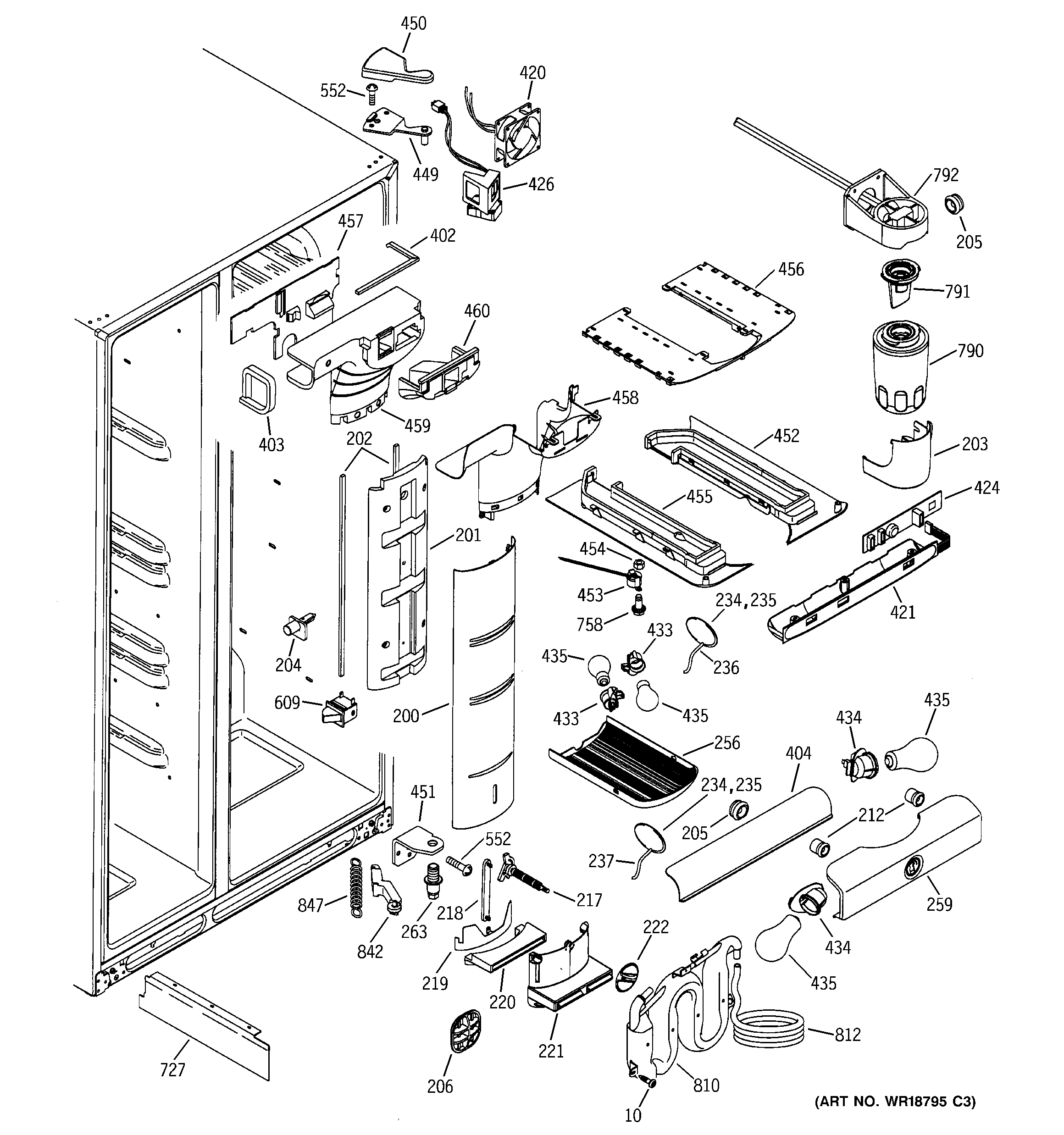

PSC23SGMABS FRESH FOOD SECTION

PSC23SGMABS FRESH FOOD SECTION

Written by

in

PSC23SGMABS FRESH FOOD SECTION

Products

PositionProduct
10WR01X10065 GE Screw
200WR17X10802 GE Refrigerator Tower Cover
201WR17X10803 GE Refrigerator EPS Tower E01
202WR14X10062 GE Ff Tow E01 Gasket
203WR17X10800 GE Refrigerator Water Cover
204GEN WR02X10676
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
212WR02X10689 GE Refrigerator Base Grille Grommet
217WR32X10154 GE Refrigerator Dial Chill Pan
218WR02X10665 GE Refrigerator Chill Linkage Pan
219WR02X10664 GE Refrigerator Chill Pan Shutter
220GEN WR02X10644
221WR02X10641 GE Refrigerator Chill Discharge Pan
222WR02X10666 GE Refrigerator Chill Pan Knob
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
236WR55X10025 GE Refrigerator Temperature Sensor
256GEN WR17X10797
259GEN WR17X10801
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
402WR49X10091 GE Refrigerator Fresh Food Damper Inlet Cover Kit
404WR17X11609 GE Refrigerator Air Flow Diverter
421GEN WR55X10081
424GEN WR55X10077
424GEN WR55X10092
433WR2X9391 GE Socket and Terminal
434WR02X10645 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
449WR13X10215 GE Refrigerator Top Hinge & Pin
450WR02X10832 GE Refrigerator Black Cover Hinge
451WR13X10167 GE Refrigerator Bottom Hinge Black
452GEN WR17X10929
453WR09X10139 GE Refrigerator Thermostat Light
454WR01X10212 GE Refrigerator 8-32 Nut
455GEN WR17X10930
456GEN WR17X10804
552WR01X10631 GE Screw
609REFRIGERATOR DOOR LIGHT SWITCH
727GEN WR17X10926
758WD2X323D GE Dishwasher Screw Package
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792GEN WR17X10707
810WR17X10734 GE Refrigerator Water Tank Drain
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
915WR02X10829 GE Refrigerator Grille Mullion
920WR31X10008 GE Refrigerator Upper Cover
921GEN WR31X10006
922WR17X13035 GE Refrigerator QC Fan Harness
923DAMPER ASM D
924WR60X10062 GE Refrigerator Damper Assembly
925GEN WR31X10007
926GEN WR31X10009
927WR14X10095 GE Refrigerator Mullion Gasket
928GEN WR31X10011
929GEN WR02X10820
930WR51X10138 GE Refrigerator Thaw Heater
931GEN WR02X10809
932GEN WR14X10096
933WR31X10079 GE Refrigerator Chill Light Socket
934WR02X10812 GE Refrigerator 40W Lamp
935WR31X10010 GE Refrigerator Bulb Grille
936WR14X10092 GE Chiller Seal Assembly
937GEN WR23X10203
938GEN WR23X10202
939WR14X10090 GE Refrigerator Chill AHU Seal
940GEN WR23X10204
941WR14X10091 GE Refrigerator Chill AHU Seal
942WR01X10239 GE Refrigerator Chill Washer Retainer
943GEN WR55X10091
943GEN WR55X10066
944WR14X10093 GE Refrigerator Door Gasket LC
945WR14X10094 GE Refrigerator Gasket Upper Cabinet D01
946GEN WR31X10013
