PSD263LHEW 09 – EVAP FAN/CRISP LIGHT/FILTER (SER.10)

PSD263LHEW 09 – EVAP FAN/CRISP LIGHT/FILTER (SER.10)

Written by

in

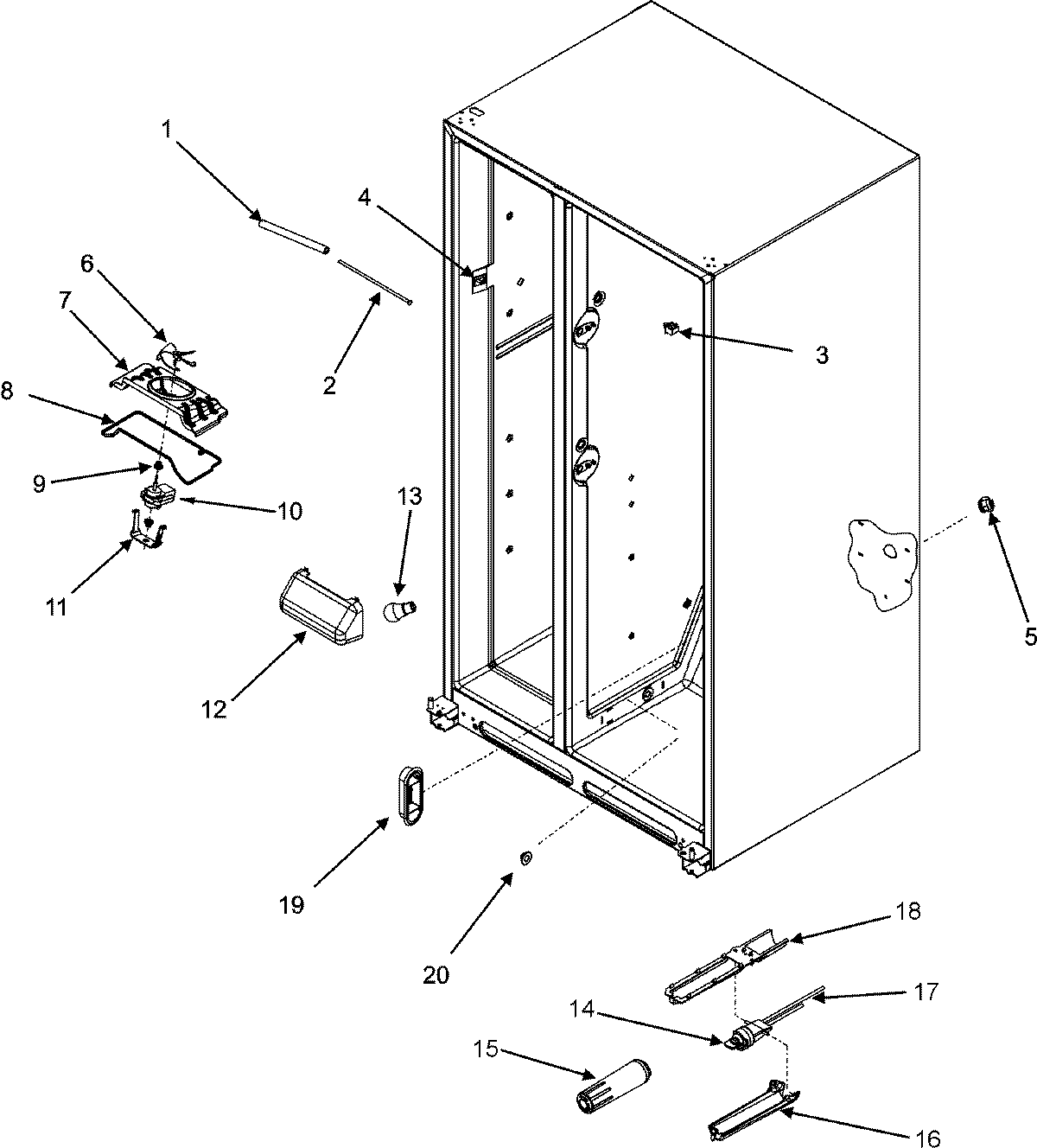

PSD263LHEW 09 – EVAP FAN/CRISP LIGHT/FILTER (SER.10)

Products

PositionProduct
1MAY 67004185
2MAY 67004186
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
5Socket, Light (2)
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
13Bulb, Light (2)
14MAY 67003146
15FILTER, WATER SINGLE
16WP12568001 Whirlpool Filter Cover
17WP67004106 Whirlpool Water Filter Housing
18MAY 12688503
19MAY 12634801
20MAY 67003018
