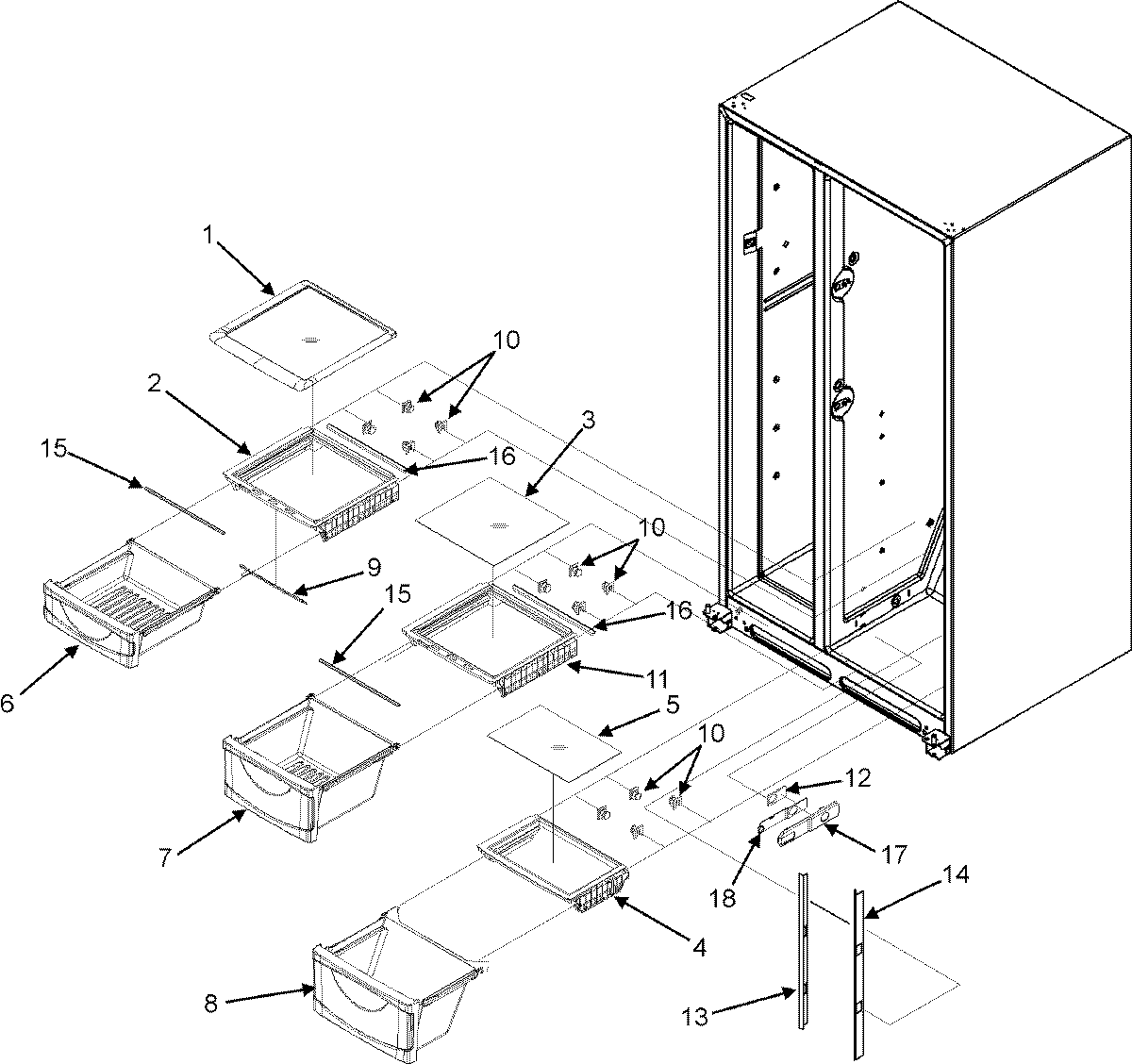

PSD266LHES 07 – CRISPER ASSEMBLY (SERIES 10)

PSD266LHES 07 – CRISPER ASSEMBLY (SERIES 10)

Written by

in

PSD266LHES 07 – CRISPER ASSEMBLY (SERIES 10)

Products

PositionProduct
1MAY 67004130
2Frame, Crisper
3MAY 67004246
4MAY 67004247
5MAY 67004132
6MAY 67004349
7MAY 67004350
8MAY 67004351
9MAY 67004168
10WP12603701 Whirlpool Refrigerator Support
11WP67004531 Whirlpool Refrigerator Frame
12MAY 67004177
13PILLAR (LT)
14PILLAR (RT)
15MAY 67004248
16MAY 67004249
17HOUSING, TEMP. CONTROL
18SLIDE, TEMP. CONTROL
