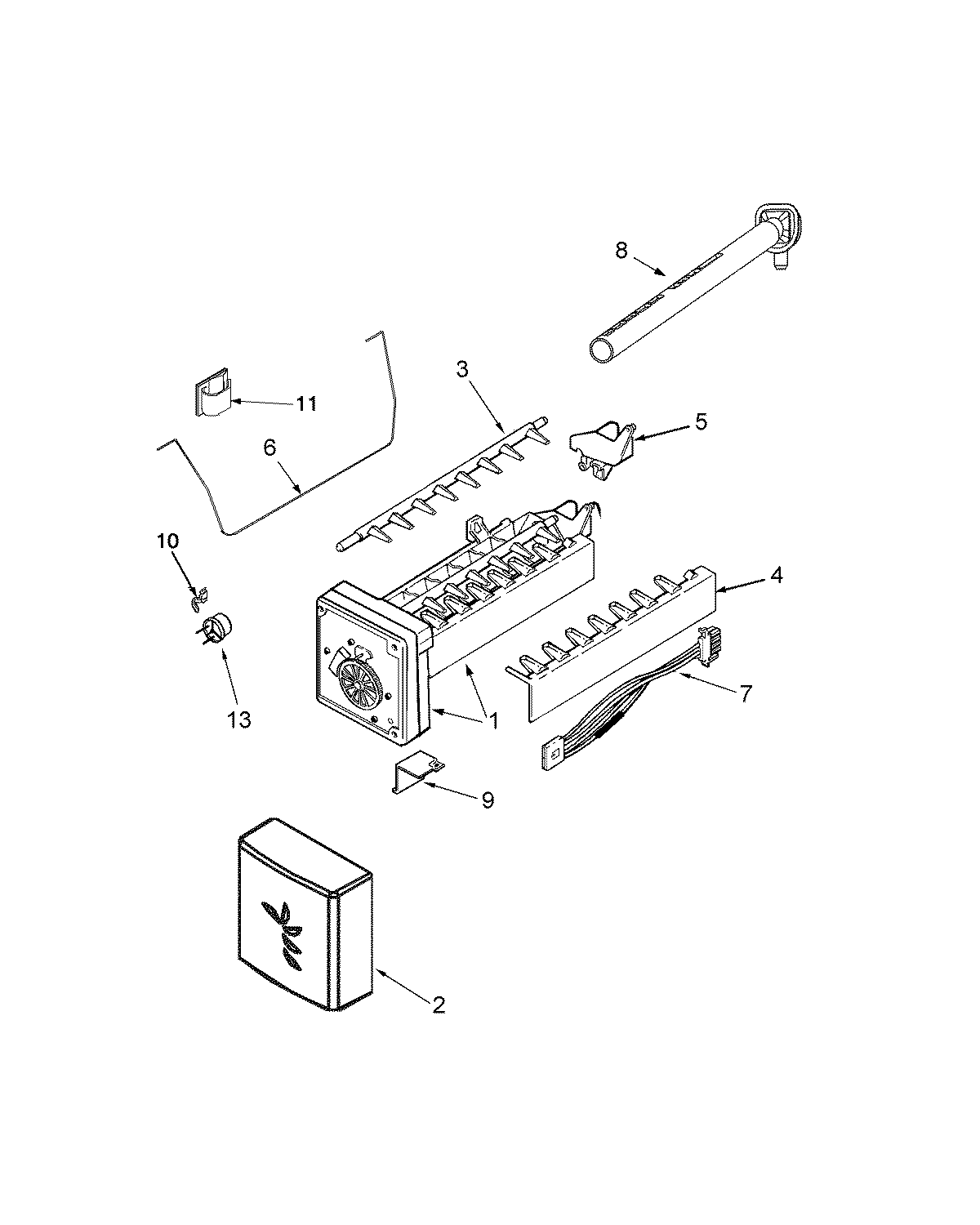

PSD266LHES 28 – ICE MAKER (SERIES 50)

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	MAY M0238833
1	WP2256087 Whirlpool Refrigerator Bracket
2	Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	MAY 12671401Q
7	WPW10146386 Whirlpool Refrigerator Wire Harness
8	WP67003576 Whirlpool Refrigerator Fill Tube Elbow
9	BRACKET, MODULE & HEATER
9	MAY 95108-1
10	WP2315522 Whirlpool Refrigerator Clip
11	WPM0104106 Whirlpool Refrigerator Clip
12	WP627985 Whirlpool Icemaker Cycling Thermostat
12	MAY 95093-1
13	W11033771 Whirlpool Refrigerator Coupling
14	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
