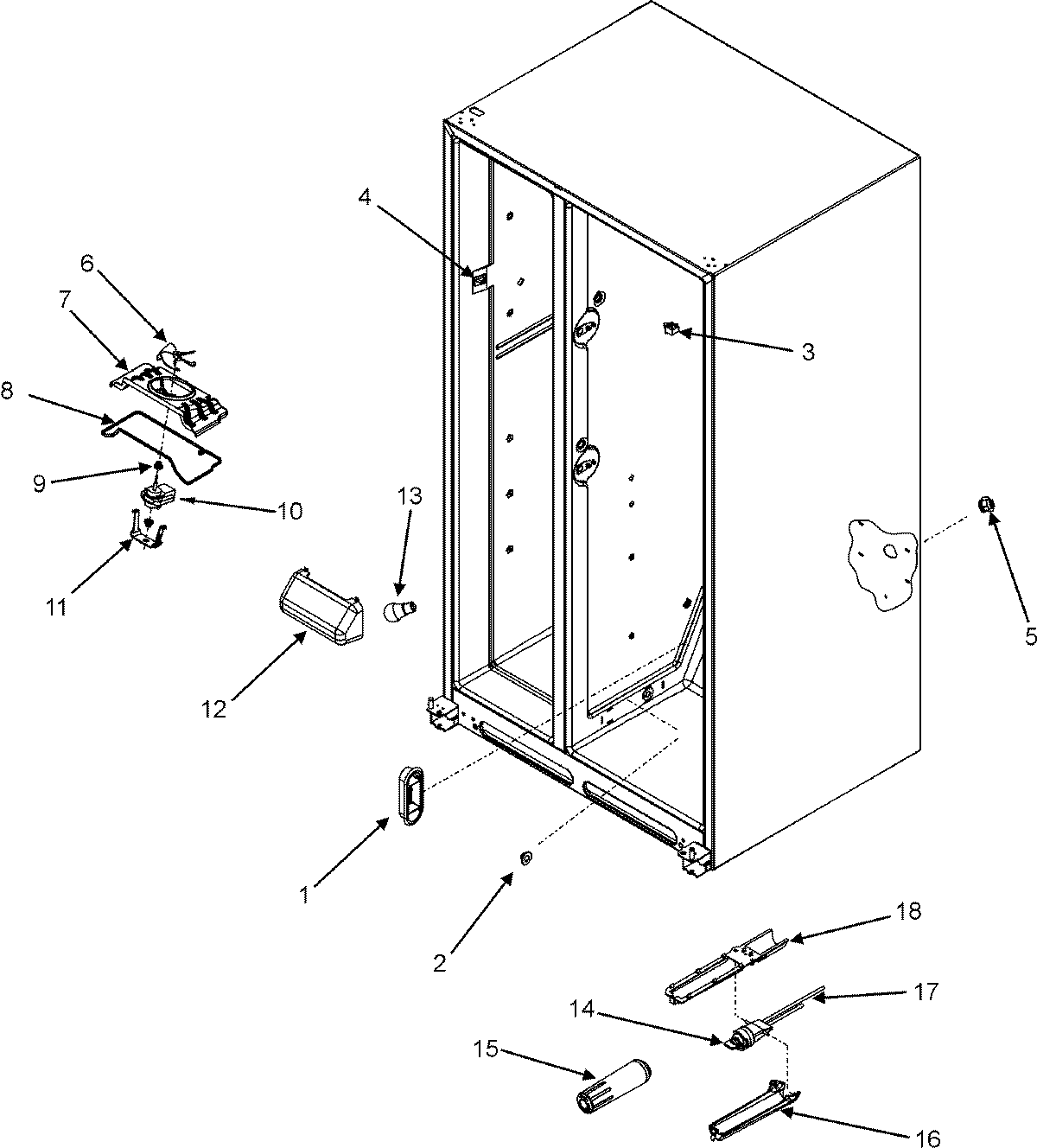

PSD269LHEB 05 – EVAP FAN ASSY./CRISP LIGHT/WATERFILTER

PSD269LHEB 05 – EVAP FAN ASSY./CRISP LIGHT/WATERFILTER

Written by

in

PSD269LHEB 05 – EVAP FAN ASSY./CRISP LIGHT/WATERFILTER

Products

PositionProduct
1MAY 12634801
2MAY 67003018
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
5Socket, Light (2)
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
13RANGE ONLY 40W 120V APPL BULB
14MAY 67003146
15FILTER, WATER SINGLE
16WP12568001 Whirlpool Filter Cover
17WP67004106 Whirlpool Water Filter Housing
18MAY 12688503
