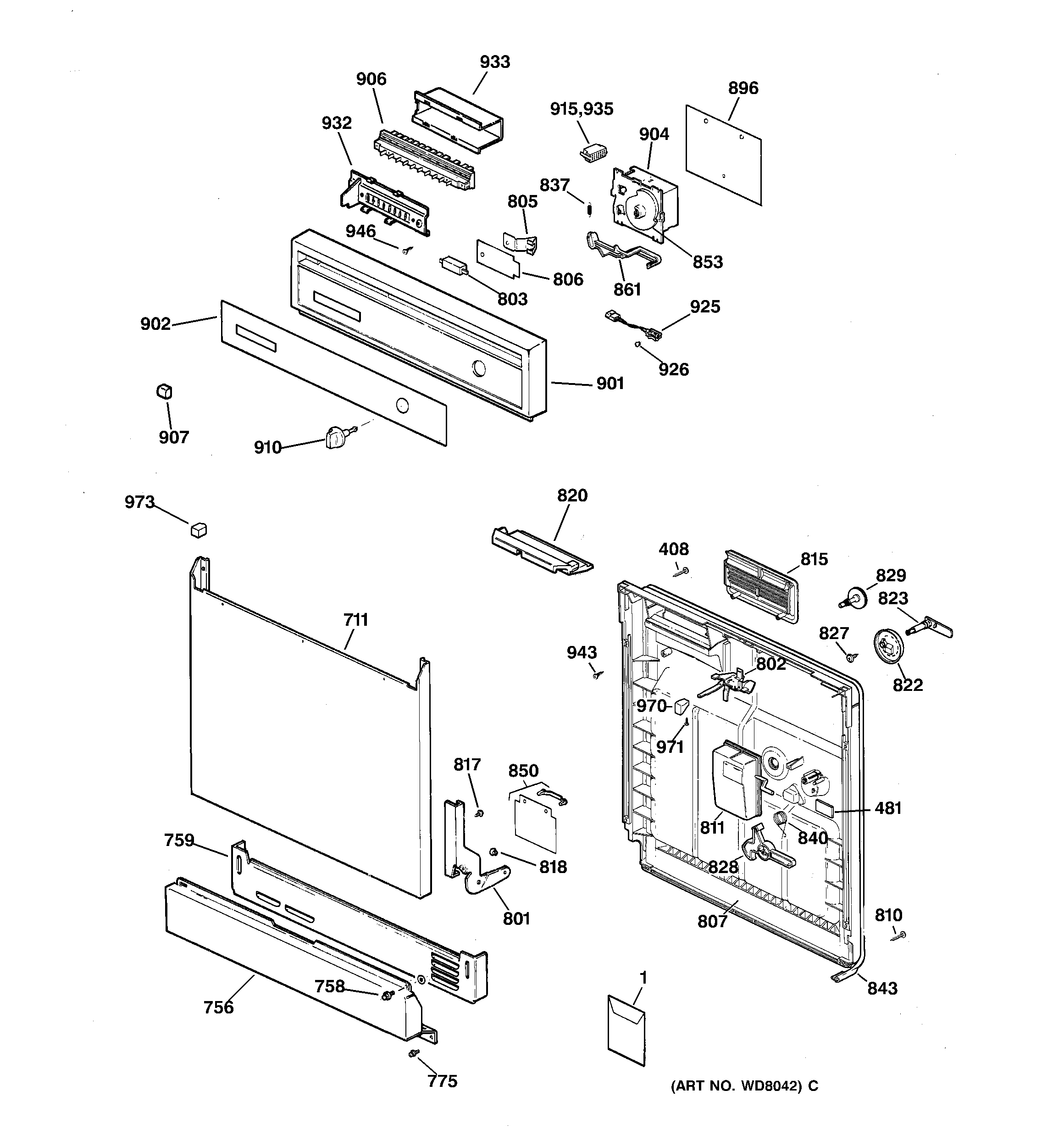

PSD3430Z00WW ESCUTCHEON & DOOR ASSEMBLY

PSD3430Z00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

PSD3430Z00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-3085
1GEN 31-30130
1GEN 79-5034
408GEN WD02X0296
481GEN WD01X10016
615WD28X31820 GE Dishwasher Upper Final Rack Assembly
711PANEL FRONT
756WD27X10225 GE Dishwasher Finished Access Panel
758WD2X323D GE Dishwasher Screw Package
759TOEKICK ASM
775SCREW 10-16X5/8 HXP WH
801ARM HINGE COMPLETE – RH
801GEN WD14X10001
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10016 GE Dishwasher Door Gasket
850GEN WD12X0338
853GEN WD16X0316
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10138
901GEN WD34X10112
902GEN WD34X10139
904GEN WD21X10015
906GEN WD21X0799
907GEN WD09X0325
910GEN WD09X0345
915GEN WD01X1432
925GEN WD06X0242
926GEN WD01X1475
932GEN WD12X0432
933GEN WD12X0433
935GEN WD01X1434
943WZ5X219D GE Screw Package
946GEN WD01X10020
946GEN WD02X0436
970WD9X245 GE Dishwasher Latch Knob
971GEN WZ02X0045
973GEN WD12X10017
