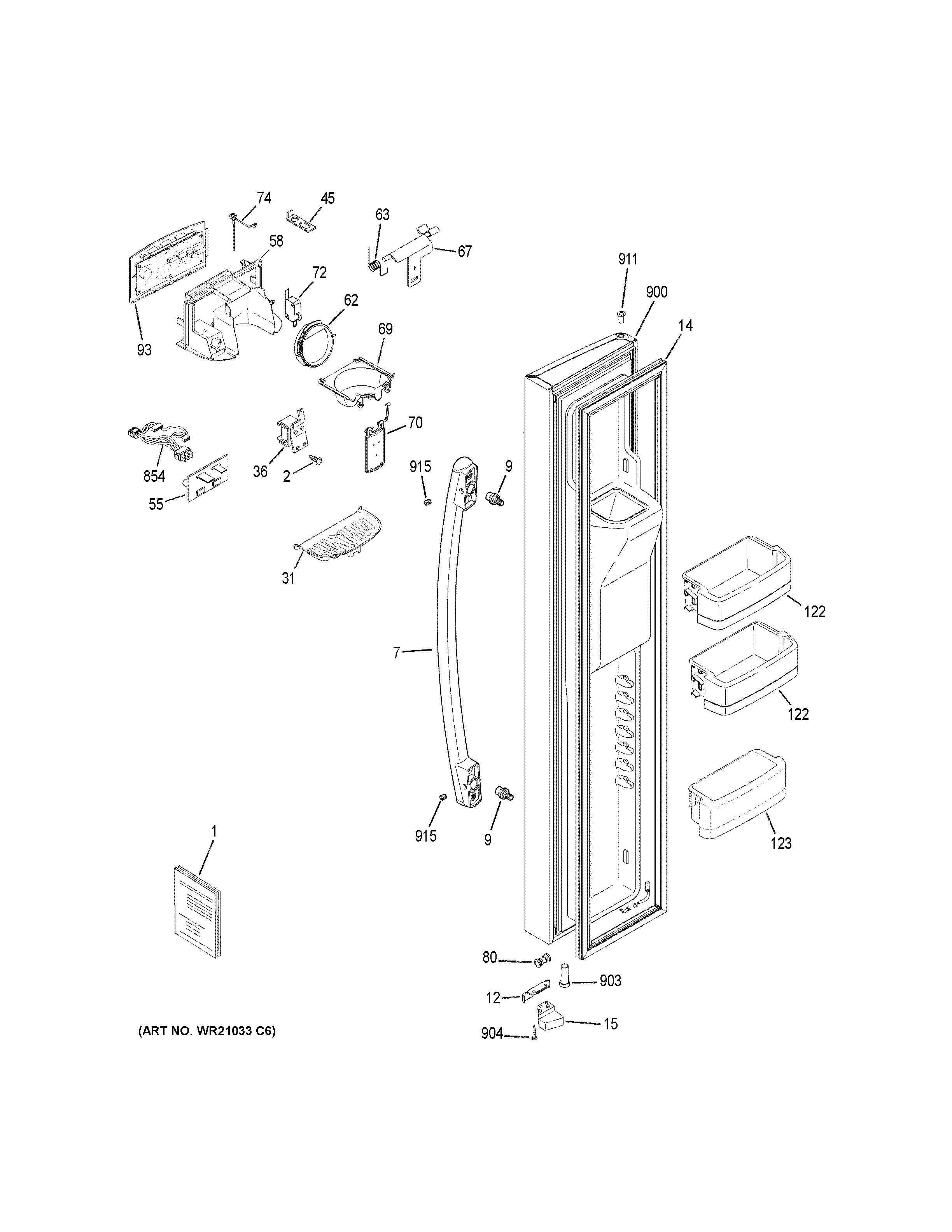

PSE25KYHHHFS FREEZER DOOR

Products

Position	Product
1	PM OWNERS AND INSTALL
1	PM MINI MANUAL AND WIRING
1	PM QUICK OWNERS MANUAL
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	WR12X34906 GE Refrigerator Arc Handle Stainless Steel
9	WR01X11007 GE Refrigerator Fastener Door Handle
12	WR01X28628 GE Refrigerator Black Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10780 GE Refrigerator Cam Closure
31	WR17X12864 GE Refrigerator Grille Recess
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X34385 GE Refrigerator Dispenser Housing Shield Assembly
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X21781 GE Refrigerator Dispenser Ice Funnel
70	WR17X27912 GE Refrigerator Dispenser Paddle
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	WR55X36228 GE Refrigerator Dispenser Interface Assembly
122	WR71X10291 GE Refrigerator Shelf Module
123	WR71X10501 GE Refrigerator Fixed Shelf Module
854	WR23X10665 GE Dispenser Recess Harness
900	WR78X44447 GE Freezer Door Assembly – Stainless
903	WR01X28633 GE Assembly 238C1160P007
904	WR01X10611 GE Screw
911	WR01X10975 GE Refrigerator Door Thimble
915	WR01X20424 GE Refrigerator Screw
