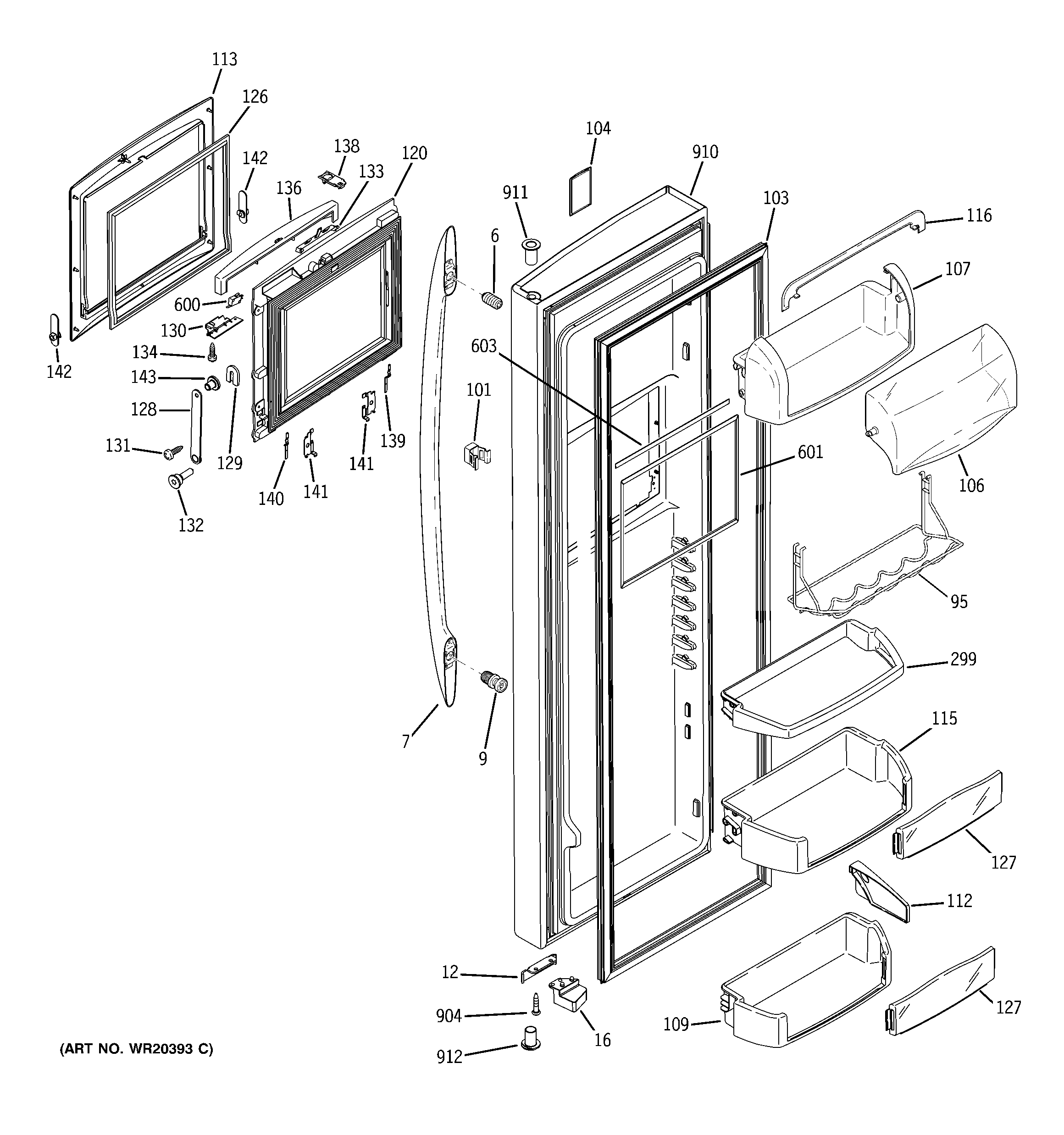

PSE27NHWGCSS FRESH FOOD DOOR

PSE27NHWGCSS FRESH FOOD DOOR

Written by

in

PSE27NHWGCSS FRESH FOOD DOOR

Products

Position	Product
6	WR01X10450 GE Refrigerator Screw Set
7	GEN WR12X10698
9	WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
12	WR02X10782 GE Refrigerator Stop Door
16	WR02X10779 GE Refrigerator Door Closure Cam
95	WR17X12289 GE Refrigerator Wine & BEVERAGE Rack
101	WR02X10040 GE Refrigerator Rectangular Fastener
103	WR24X20456 GASKET
104	WR04X10129 GE Refrigerator Lens Nameplate
106	WR22X10042 GE Refrigerator Clear Dairy Door
107	WR22X10041 GE Refrigerator Dairy Compartment
109	WR71X10979 GE Refrigerator Module Shelf Fresh Food
112	WR02X10582 GE Refrigerator Modu Snug R
113	GEN WR38X10426
115	WR71X10973 GE Refrigerator Door Shelf Bin
116	WR22X10043 GE Refrigerator Trim Dairy Compartment
120	GEN WR17X12534
126	WR24X10085 GE Refrigerator Door Gasket CMK
127	WR71X10764 GE Door Shelf Insert Module
128	WR13X10005 GE Refrigerator Hinge Arm
129	WR02X10035 GE Hinge Cap Arm
130	WR02X10032 GE Refrigerator Bracket Side CMK
131	SCR 10-24 TX 11/16
132	WR02X10037 GE Refrigerator Stop Hinge Arm
133	WR02X10033 GE Refrigerator Door Trigr CMK
134	WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
136	GEN WR12X10438
138	WR02X10840 GE Refrigerator Door Latch
139	WR02X10659 GE Left Spring Leaf
140	WR02X10660 GE Leaf Spring Right
141	WR02X10651 GE Left Hand Bracket Retainer
141	WR02X10652 GE Right Hand Retainer Bracket
142	GEN WR02X10045
143	WR02X10041 GE Arm Hinge Stud
299	GEN WR71X10360
600	WR23X10027 GE Refrigerator Micro Switch
601	WR02X11459 GE Inner Door Trim Assembly
603	WR02X11483 GE Foam Tape
904	WR01X10611 GE Screw
910	GEN WR78X11798
911	WR01X10956 GE Door Thimble
912	WR01X10232 GE Refrigerator Door Thimble
