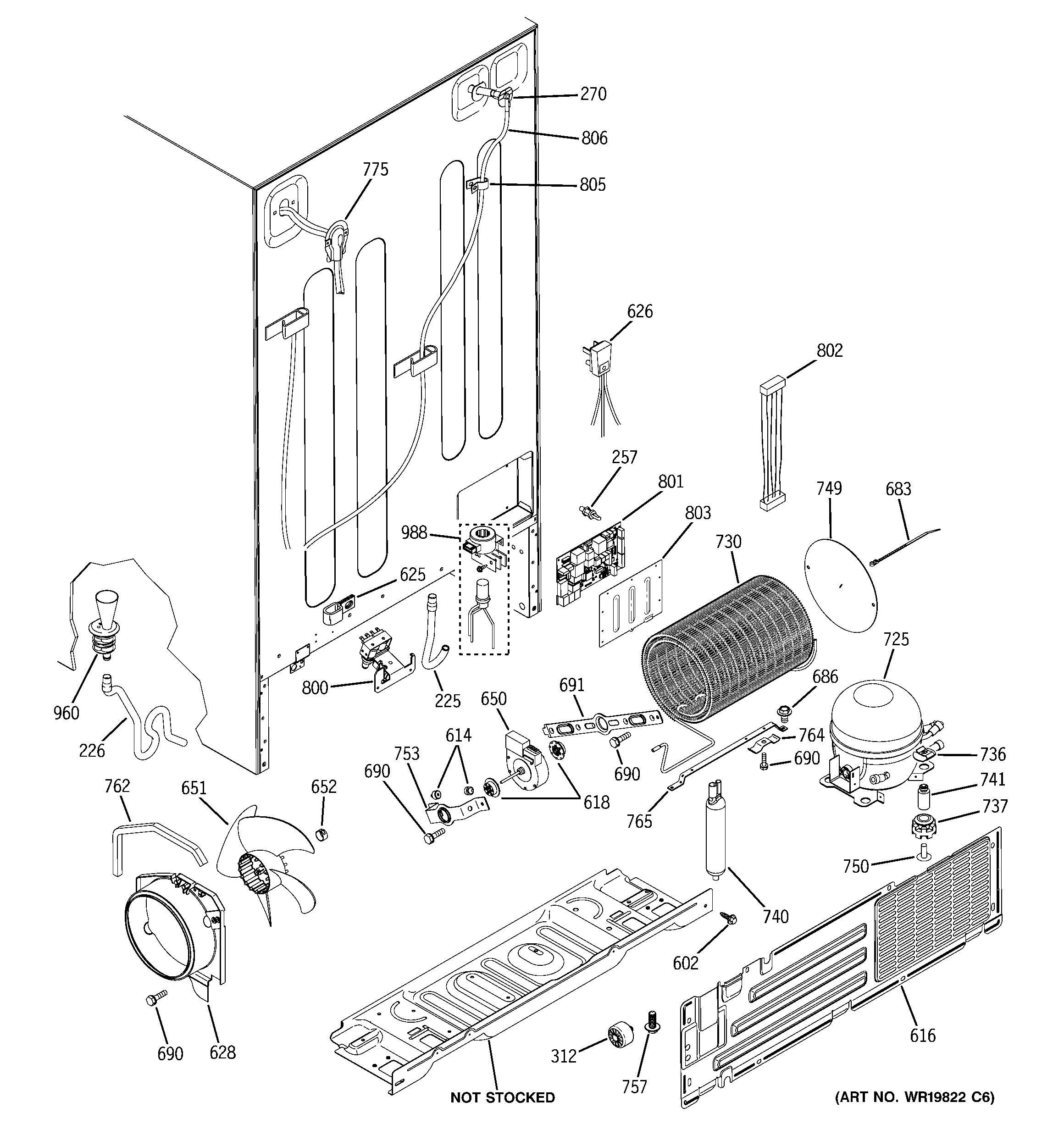

PSF26PGSBWS SEALED SYSTEM & MOTHER BOARD

PSF26PGSBWS SEALED SYSTEM & MOTHER BOARD

Written by

in

PSF26PGSBWS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
225TUBE DRAIN
226WR02X11848 GE Drain Hose Tube
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR1X1591 GE Refrigerator Screw
614BUMPER
616GEN WR82X10100
618WR02X11331 GE Refrigerator Grommet
625WR1X5278 GE Refrigerator Cable Clamp
626WR23X10300 GE Refrigerator Power Cord Assembly
628WR17X35527 GE Refrigerator Condenser Fan Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X11742 GE Refrigerator Bracket Condenser Fan
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X20798 GE Refrigerator High Side Assembly
730WR84X10022 GE Refrigerator Condenser Replacement Kit
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10194 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X10796 GE Refrigerator Water Line Cover
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR49X10152 GE Refrigerator Main Electronic Control Board
802GEN WR23X10442
803WR02X12025 GE Main Board Enclosure
806WR17X11625 GE Refrigerator Plastic Tube
960WR17X12150 GE Refrigerator Grommet Drain Tube Assembly
988WR57X10053 GE Refrigerator Valve Assembly
