PSG25SGSACBS ICE MAKER & DISPENSER

PSG25SGSACBS ICE MAKER & DISPENSER

Written by

in

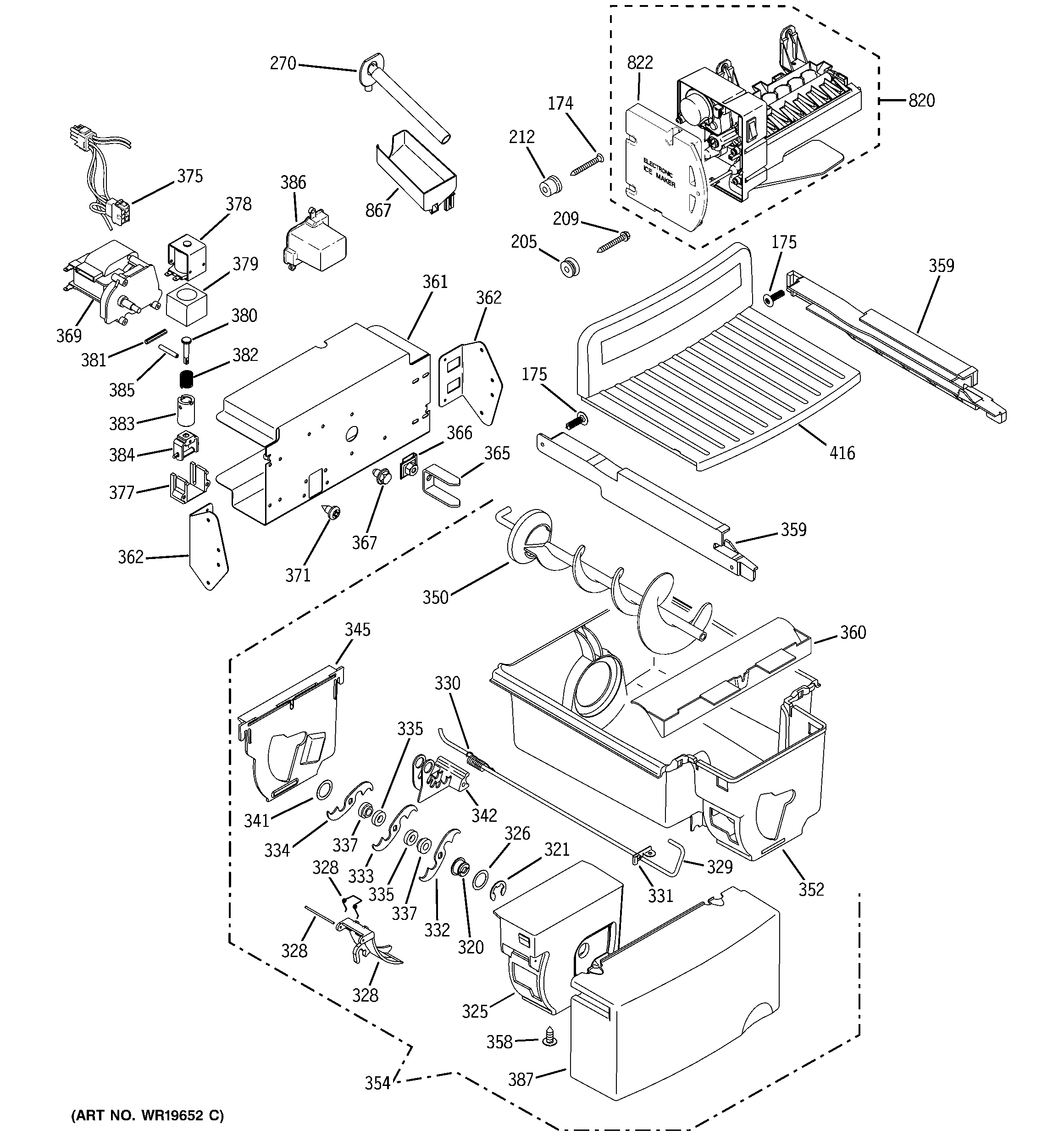

PSG25SGSACBS ICE MAKER & DISPENSER

Products

PositionProduct
174WR01X10447 GE Refrigerator SCR-8-18-AB-UFL
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
205WR02X10678 GE Refrigerator Grommet
209WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
212WR02X10689 GE Refrigerator Base Grille Grommet
270WR17X11168 GROMMET AND TUBE ASM
320WR01X10315 GE Refrigerator Auger Nut
321WR1X1367D GE Refrigerator Return Package 12
325WR17X11505 GE Refrigerator Housing Crusher
326GEN WR01X1366
328GEN WR02X4561
328WR2X4143 GE Refrigerator Pivot
328WR17X10703 GE Refrigerator Deflector
329WR17X11403 GE Refrigerator Wire Actuator Dispenser
330WR02X11768 GE Refrigerator Internal Spring Deflector
331WR02X10580 GE Refrigerator Retainer Spring
332WR17X11239 GE Refrigerator Blades Moving Dispenser
333WR17X11240 GE Dispensing Moving Blades
334WR17X11241 GE Refrigerator Blades Moving Dispenser
335GEN WR02X4139
337WR2X4138 GE Refrigerator Spacer
341WR29X10045 GE Refrigerator Washer Crusher Blade
342WR02X10691 GE Refrigerator STATIONARY Blades Assembly
345WR17X11497 GE Refrigerator Ice Dispenser Crusher Cover
350BUCKET AUGER
352GEN WR30X10020
354ICE BUCKET & AUGER
358WR01X10389 GE Refrigerator Screw 8-18 AB PHR 1/2 S
359WR72X10145 GE Refrigerator Right Hand Glide Bucket Display
359WR72X10169 GE Refrigerator Glide Bracket Left Hand
360WR17X11449 GE Refrigerator Diverter Overflow
361GEN WR17X11614
362GEN WR02X11617
365DRIVE AUGER DISP
366GEN WR01X10190
367WR01X10618 GE Refrigerator Screw 8-18 TPT 1/4
369WR60X10260 GE Refrigerator Motor Crusher Dispenser
371WR01X10619 GE Refrigerator Screw
375GEN WR23X10330
377WR2X7309 GE Refrigerator Solenoid Cushion
378WR62X10054 GE Refrigerator Solenoid & Arm Assembly
381WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
386WR02X11767 GE Refrigerator Auger Motor Boot
387WR17X11032 GE Refrigerator Cover Bumper
387COVER BUCKET DISP
416GEN WR71X10314
820WR30X10081 GE Refrigerator Electronic IM INTL ROHS
822WR29X10068 GE Refrigerator Cover Plate Electric TRNIC IM
867WR29X10109 GE Refrigerator Water Fill Cup
