PSG27NHMACWW FRESH FOOD DOOR

PSG27NHMACWW FRESH FOOD DOOR

Written by

in

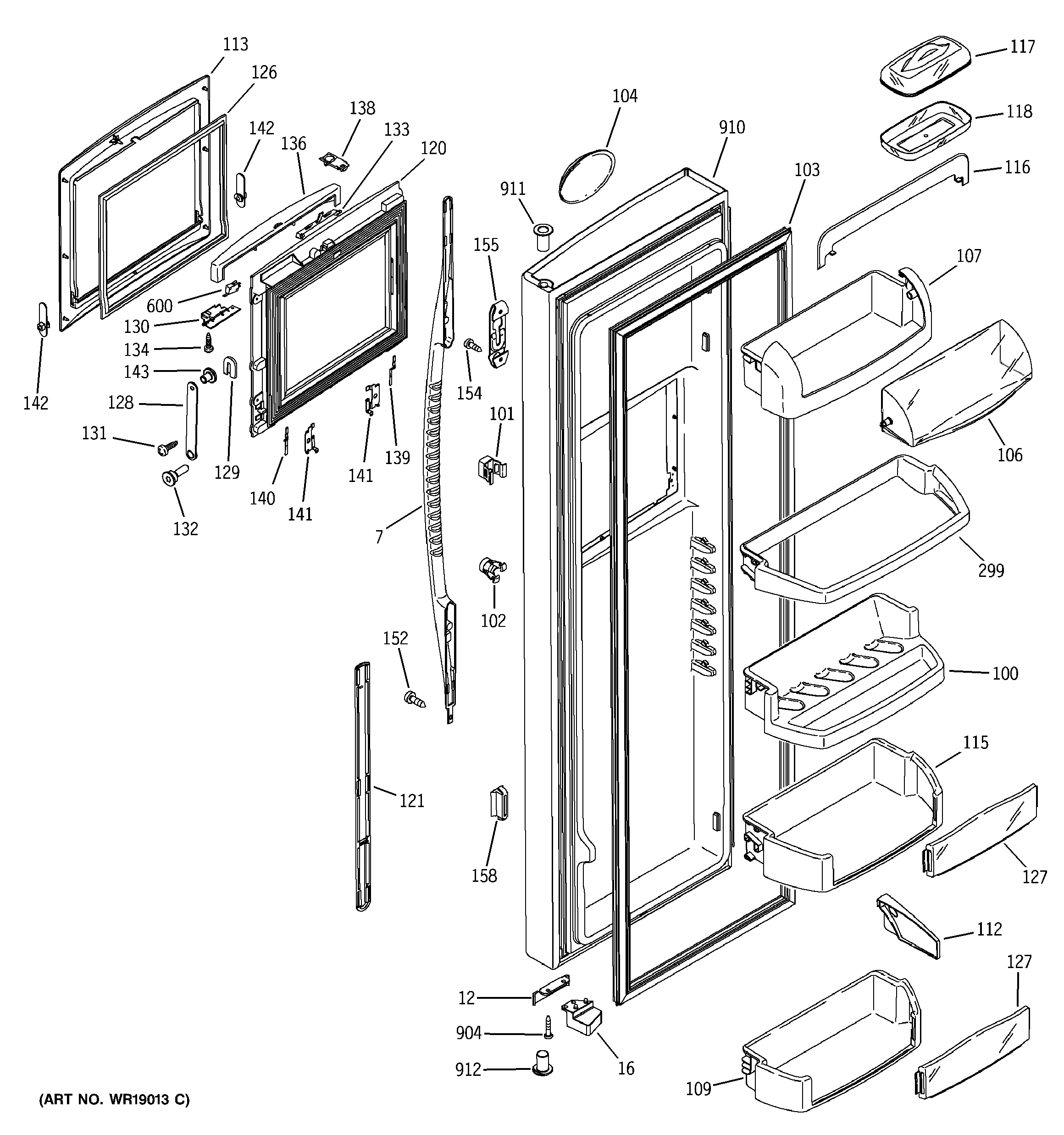

PSG27NHMACWW FRESH FOOD DOOR

Products

Position	Product
7	GEN WR12X10406
12	WR02X10690 GE Refrigerator Door Stop
16	WR02X10637 GE Refrigerator Cam Closure
100	GEN WR17X10933
101	WR02X10040 GE Refrigerator Rectangular Fastener
102	GEN WR02X8162
103	WR24X10155 GE Refrigerator White Door Gasket
104	GEN WR04X10109
106	GEN WR22X10022
107	GEN WR22X10021
109	WR71X10979 GE Refrigerator Module Shelf Fresh Food
112	WR02X10582 GE Refrigerator Modu Snug R
113	WR38X10427 GE Refrigerator Trim Assembly
115	WR71X10973 GE Refrigerator Door Shelf Bin
116	GEN WR22X10023
117	WR22X10059 GE Refrigerator Butter Dish Lid
118	GEN WR22X10018
120	WR17X12535 GE Refrigerator Door Foam Assembly
121	GEN WR12X10405
126	WR24X10085 GE Refrigerator Door Gasket CMK
127	WR71X10764 GE Door Shelf Insert Module
128	WR13X10005 GE Refrigerator Hinge Arm
129	WR02X10035 GE Hinge Cap Arm
130	WR02X10032 GE Refrigerator Bracket Side CMK
131	SCR 10-24 TX 11/16
132	WR02X10037 GE Refrigerator Stop Hinge Arm
133	WR02X10033 GE Refrigerator Door Trigr CMK
134	WR01X10019 GE Refrigerator Screw 6-10 PL FLP 1/2 S
136	WR12X10404 GE Refrigerator Door Handle CMK
138	WR02X10840 GE Refrigerator Door Latch
139	WR02X10659 GE Left Spring Leaf
140	WR02X10660 GE Leaf Spring Right
141	WR02X10652 GE Right Hand Retainer Bracket
141	WR02X10651 GE Left Hand Bracket Retainer
142	WR02X10036 GE Refrigerator Door Bushing CMK
143	WR02X10041 GE Arm Hinge Stud
152	GEN WR01X10038
154	SCR 8-18 AB RNT20 5/8 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
158	GEN WR02X10646
299	GEN WR71X10360
600	WR23X10027 GE Refrigerator Micro Switch
904	WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
910	GEN WR78X10442
911	WR01X10955 GE Refrigerator Door Thimble
912	WR01X10206 GE Refrigerator Thimble Door
