PSH25PGWABV FREEZER DOOR

PSH25PGWABV FREEZER DOOR

Written by

in

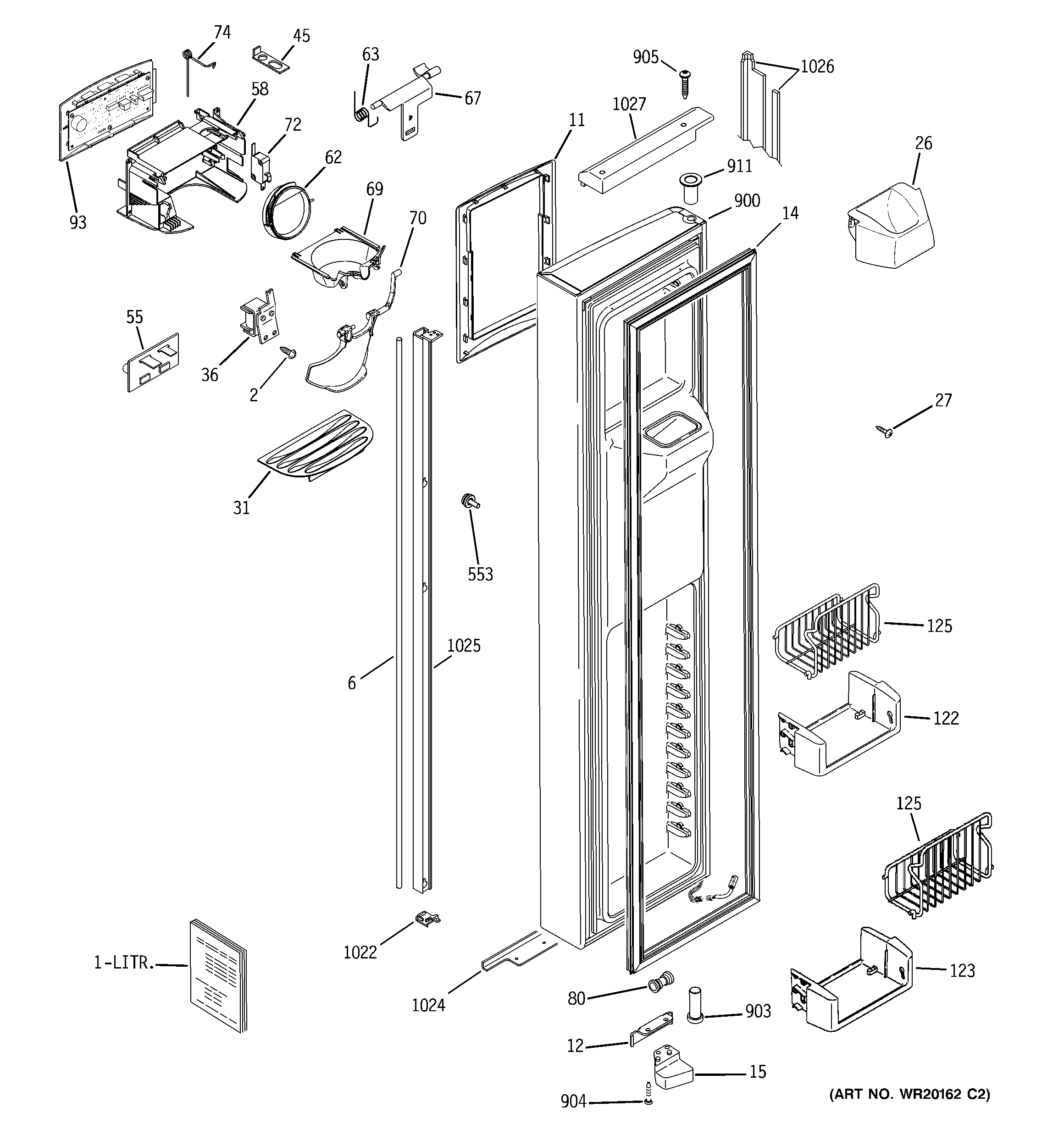

PSH25PGWABV FREEZER DOOR

Products

PositionProduct
1GEN 31-51710
1GEN 49-60494
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6WR12X10974 GE Refrigerator Soft Touch Handle Insert
11GEN WR38X10245
11GEN WR38X10239
12WR02X13425 GE Refrigerator Door Stop
12WR02X13424 GE Refrigerator Door Stop
14GEN WR24X10168
14GEN WR24X10170
15WR02X10780 GE Refrigerator Cam Closure
15WR02X10638 GE Refrigerator Cam Closure
26WR71X10633 GE Refrigerator Ice Guide
27WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31WR17X11654 GE Refrigerator White Recess Grille
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58GEN WR17X12234
58GEN WR17X12235
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70WR17X12121 GE Refrigerator Paddle Ice Dispenser White
70WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X13342 GE Refrigerator Union Connector
93GEN WR55X10682
93GEN WR55X10700
122WR71X10256 GE Refrigerator Module Support
123WR71X10629 GE Freezer Fixed Shelf Module
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
553GEN WR01X10314
900GEN WR78X11622
900GEN WR78X11973
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
905WR01X10610 GE Refrigerator Screw 10-32 GX PNT20 1 S L
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10956 GE Door Thimble
1022GEN WR17X11272
1022GEN WR17X11281
1024GEN WR17X10972
1024GEN WR17X10953
1025GEN WR12X10732
1025GEN WR12X10736
1026GEN WR17X11899
1026TRIM DOOR SIDE ASM FZ
1027GEN WR17X11905
1027GEN WR17X11897
