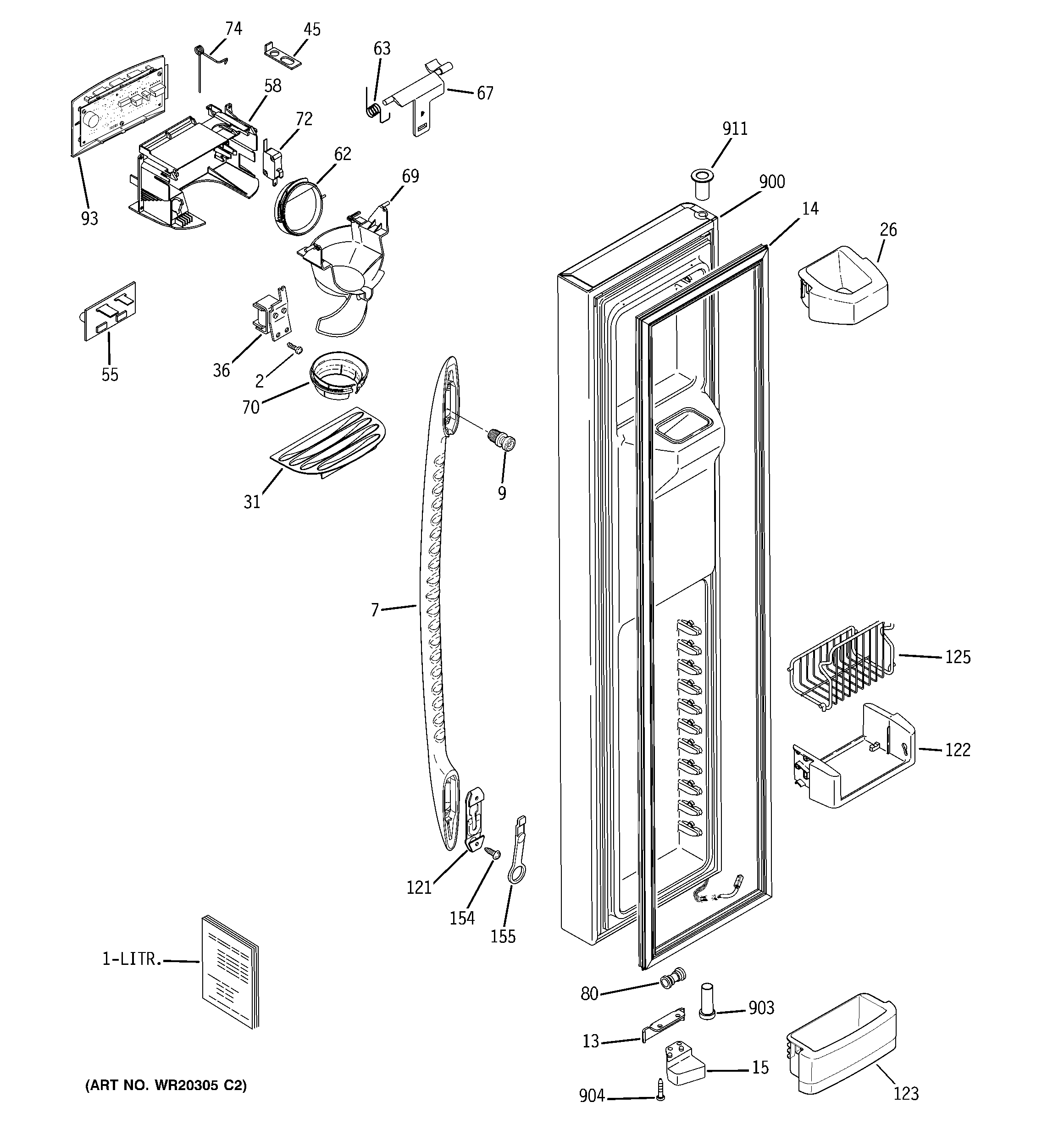

PSHF6RGXBDWW FREEZER DOOR

PSHF6RGXBDWW FREEZER DOOR

Written by

in

PSHF6RGXBDWW FREEZER DOOR

Products

Position	Product
1	GEN 31-51738
1	GEN 46-60541
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	GEN WR12X10825
7	WR12X10731 GE Refrigerator Handle Assembly SXS White
7	GEN WR12X10742
9	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
13	WR02X12351 GE Refrigerator Door Stop
13	GEN WR02X12355
13	WR02X12353 GE Refrigerator Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
14	WR24X10156 GE Refrigerator Door Gasket White
15	WR02X10638 GE Refrigerator Cam Closure
15	WR02X10780 GE Refrigerator Cam Closure
26	GEN WR71X10706
31	WR17X12873 GE Refrigerator Grille Recess
31	WR17X12884 GE Refrigerator Grille Recess
31	GRILL RECESS
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	GEN WR17X12487
58	WR17X12489 GE Refrigerator Dispenser Housing Shield
58	GEN WR17X12493
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	GEN WR17X12128
70	WR17X12121 GE Refrigerator Paddle Ice Dispenser White
70	WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10780
93	GEN WR55X10781
93	GEN WR55X10779
121	WR02X12022 GE Refrigerator Locking Handle
122	WR71X10256 GE Refrigerator Module Support
123	WR71X10501 GE Refrigerator Fixed Shelf Module
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
154	WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
900	GEN WR78X11956
900	GEN WR78X11961
900	GEN WR78X11957
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
903	WR01X10208 GE Refrigerator Door Thimble
903	WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
911	WR01X10955 GE Refrigerator Door Thimble
911	WR01X10957 GE Refrigerator Door Thimble
