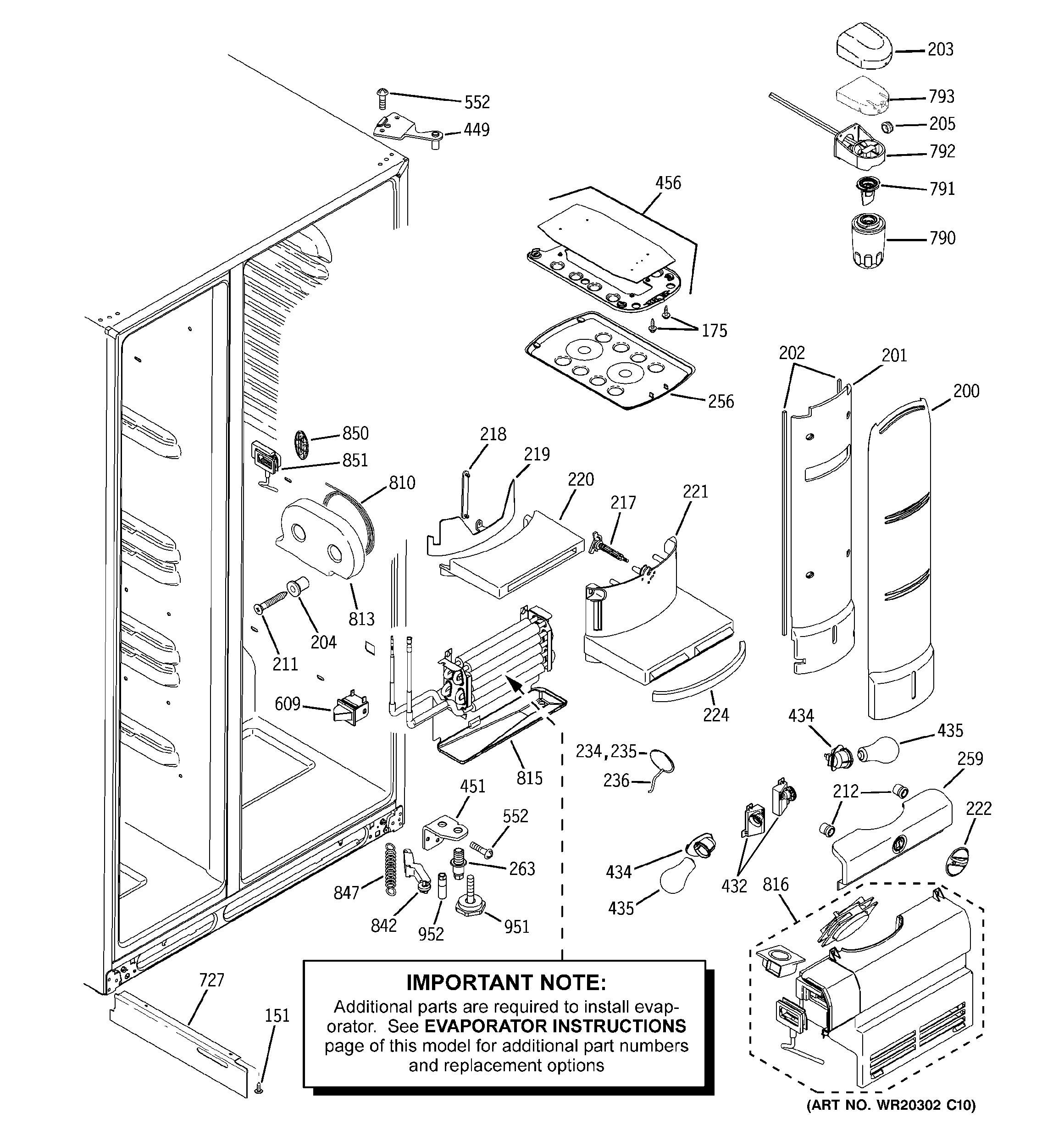

PSHS6YGXBDSS FRESH FOOD SECTION

PSHS6YGXBDSS FRESH FOOD SECTION

Written by

in

PSHS6YGXBDSS FRESH FOOD SECTION

Products

PositionProduct
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
200GEN WR17X11702
201GEN WR17X11703
202GEN WR14X10188
203GEN WR17X12229
204WR02X12188 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
217WR32X10154 GE Refrigerator Dial Chill Pan
218WR02X10665 GE Refrigerator Chill Linkage Pan
219WR02X10664 GE Refrigerator Chill Pan Shutter
220GEN WR02X11851
221WR02X11852 GE Refrigerator Chill Discharge Pan
222WR02X10666 GE Refrigerator Chill Pan Knob
224GEN WR02X11853
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
236WR55X10025 GE Refrigerator Temperature Sensor
256WR17X12499 GE Cover Shield Assembly
259GEN WR17X11712
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
432GEN WR02X12283
432WR02X12282 GE Refrigerator Middle Reflector Assembly
434WR02X10645 GE Refrigerator Lamp Socket
435RANGE ONLY 40W 120V APPL BULB
449WR13X10456 GE Refrigerator Top Hinge & Pin Assembly
451GEN WR13X10589
456GEN WR55X10792
552WR01X10631 GE Screw
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12295 GE Refrigerator Separator Air HISIDE
790MSWF GE Refrigerator Fast Fill Water Filter
791WR17X22064 GE Refrigerator MSWF Bypass
792MSWF MANIFOLD
793WR17X12205 GE Refrigerator Manifold Insulation
810GEN WR17X12238
813GEN WR17X11710
815TROUGH DRAIN ASM
816GEN WR17X12498
842LEVER ASM FF
847WR1X2027 GE Refrigerator Spring Closure
850GEN WR02X12477
851GEN WR02X12474
951WR01X10686 GE Refrigerator Leveling Screw
952GEN WR02X12780
