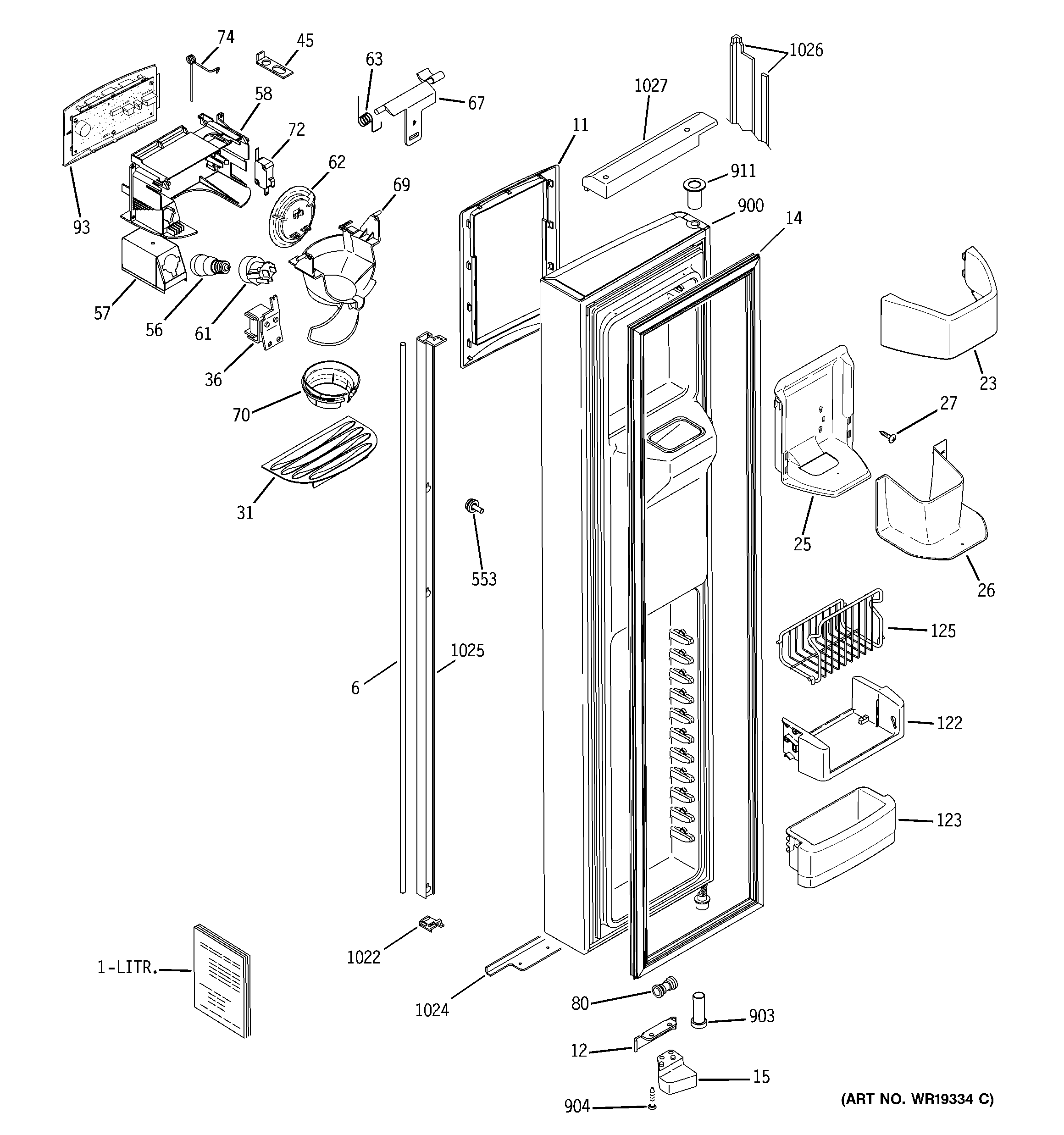

PSI23MGPABB FREEZER DOOR

Products

PositionProduct
1MINI MANUAL WIRING
1GEN 49-60203
6WR12X10974 GE Refrigerator Soft Touch Handle Insert
11GEN WR38X10239
12WR02X13425 GE Refrigerator Door Stop
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10780 GE Refrigerator Cam Closure
23GEN WR71X10499
25GEN WR71X10500
26GEN WR71X10495
27WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
57WR02X10670 GE Refrigerator Reflector Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
70WR49X10076 GE Refrigerator FUNL EXTN BK
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10309
122WR71X10256 GE Refrigerator Module Support
123WR71X10501 GE Refrigerator Fixed Shelf Module
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
553GEN WR01X10314
900GEN WR78X10605
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
911WR01X10956 GE Door Thimble
1022GEN WR17X11281
1024GEN WR17X10953
1025GEN WR12X10542
1026GEN WR17X11282
1027GEN WR17X10957
