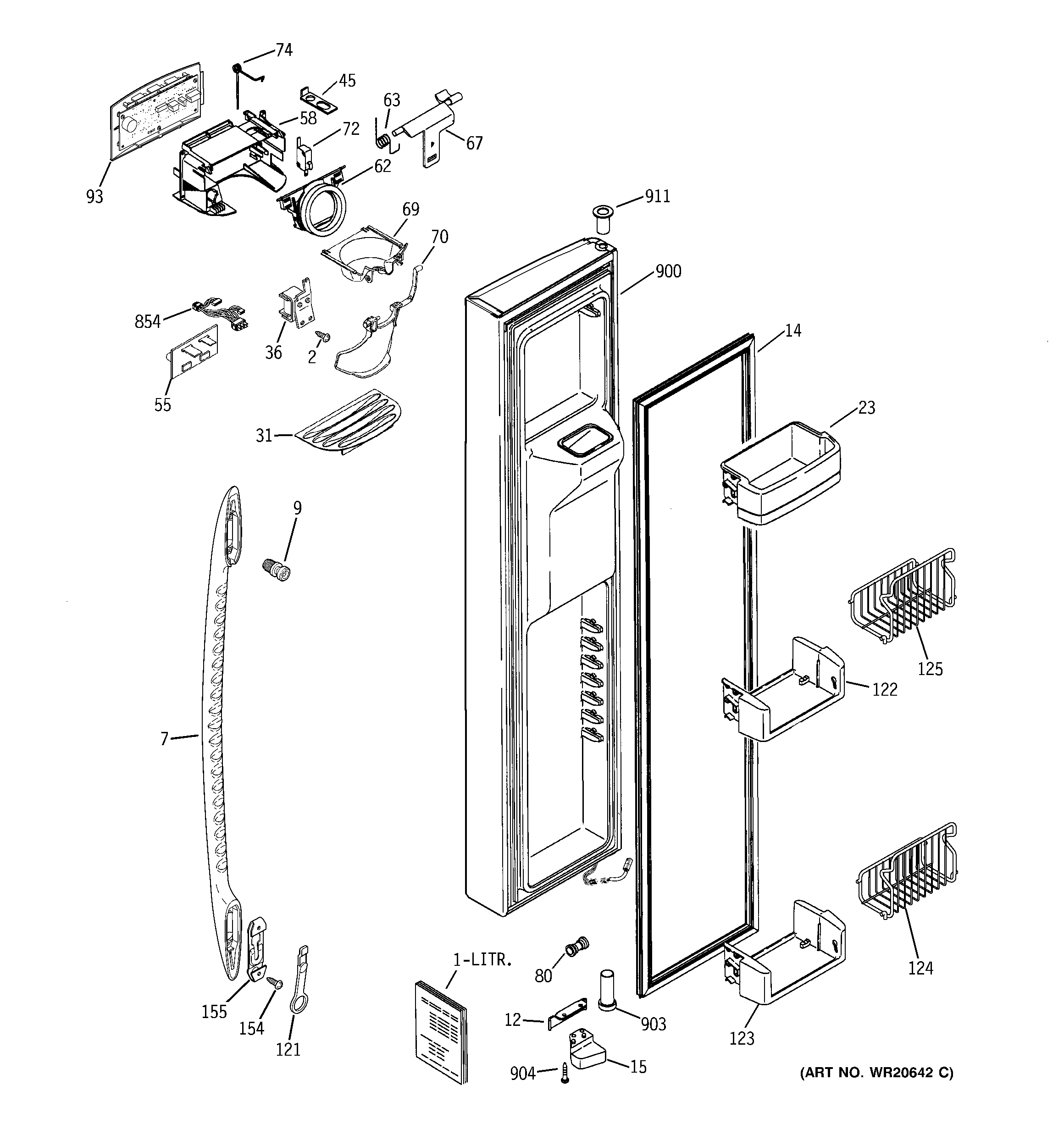

PSK25TGXBCCC FREEZER DOOR

Written by

Products

Position	Product
1	GEN 49-60565
1	GEN 31-46236
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	GEN WR12X10742
9	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
12	GEN WR02X12355
12	GEN WR02X12354
14	WR24X10156 GE Refrigerator Door Gasket White
15	WR02X10638 GE Refrigerator Cam Closure
23	WR71X10254 GE Refrigerator Fixed Shelf Module
31	GRILL RECESS
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	GEN WR17X12493
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	GEN WR17X12128
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10995
121	WR02X12022 GE Refrigerator Locking Handle
122	WR71X10256 GE Refrigerator Module Support
123	WR02X12187 GE Refrigerator Support Shelf
123	GEN WR71X10255
124	WR21X10111 GE Refrigerator Basket Wire TILTOUT
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
154	WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
854	WR23X10665 GE Dispenser Recess Harness
900	GEN WR78X12556
903	WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
904	WR01X10611 GE Screw
911	WR01X10957 GE Refrigerator Door Thimble
