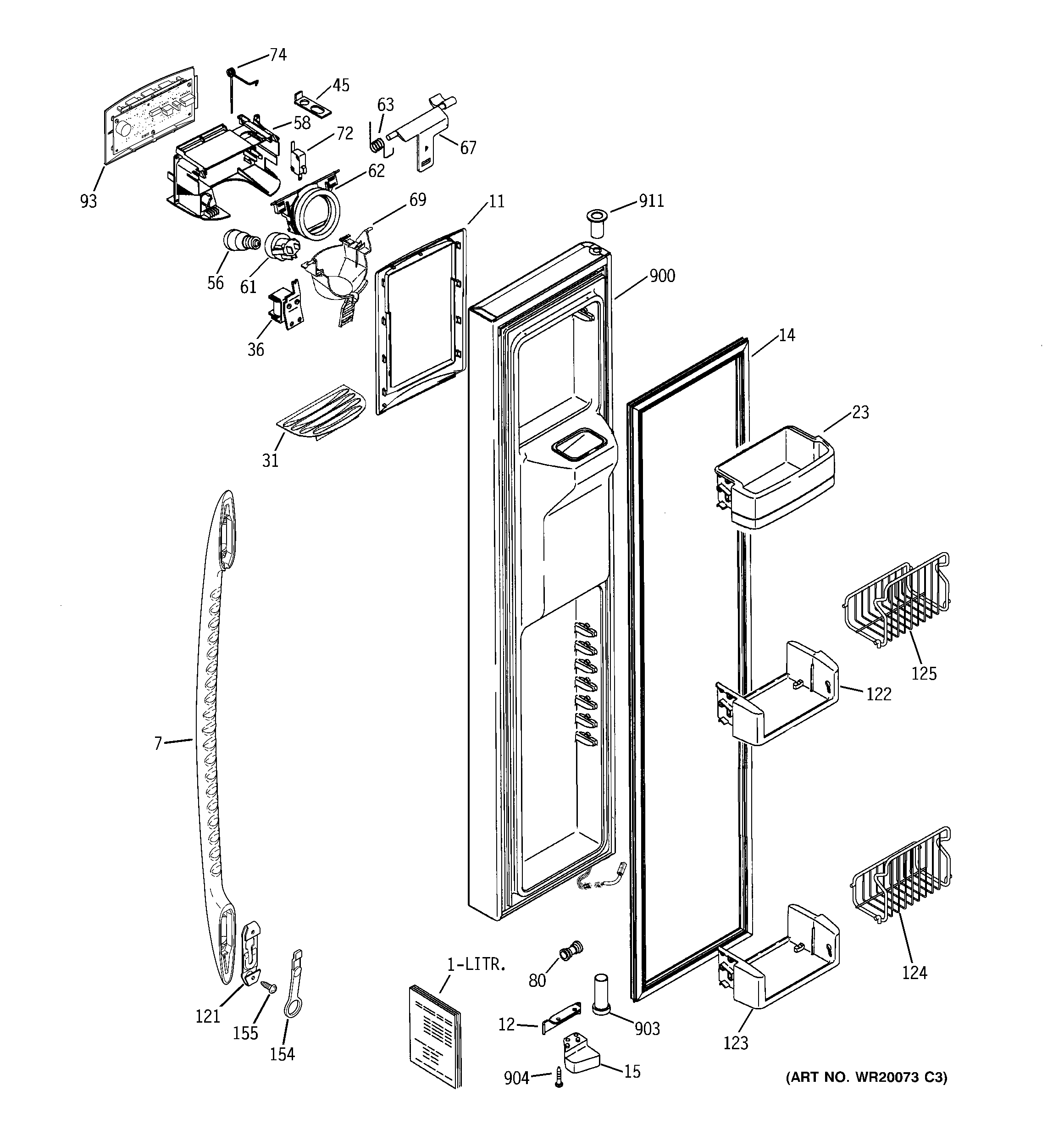

PSK27NHSCCWW FREEZER DOOR

PSK27NHSCCWW FREEZER DOOR

Written by

in

PSK27NHSCCWW FREEZER DOOR

Products

PositionProduct
1GEN 31-46223
1GEN 49-60243
7WR12X10731 GE Refrigerator Handle Assembly SXS White
7GEN WR12X10742
11GEN WR38X10356
11GEN WR38X10353
12WR02X10786 GE Refrigerator Door Stop Bisque
12WR02X10690 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10638 GE Refrigerator Cam Closure
23WR71X10254 GE Refrigerator Fixed Shelf Module
31GEN WR17X11656
31WR17X11654 GE Refrigerator White Recess Grille
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69FUNNEL ICE DISP
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93INTERFACE DISP ASM WH
93INTERFACE DISP ASM BQ
121WR02X12022 GE Refrigerator Locking Handle
122WR71X10256 GE Refrigerator Module Support
123GEN WR71X10255
123WR02X12187 GE Refrigerator Support Shelf
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
154WR13X10216 GE Top Hinge and Pin Assembly
154WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155WR02X10643 GE Refrigerator Handle Lock Bracket
900GEN WR78X11599
900GEN WR78X11601
903WR01X10237 GE Refrigerator Thimble Door Bottom Bisque
903WR01X10208 GE Refrigerator Door Thimble
911WR01X10957 GE Refrigerator Door Thimble
911WR01X10955 GE Refrigerator Door Thimble
